| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | M6MX |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | $20/Pcs |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 packs/month |
| Plate Thickness: | 0.5 Mm/0.6mm | Plate Arrangement: | Dialognal |
|---|---|---|---|
| Plate Length: | 747mm | Max Working Temperature: | Up To 170°C |
| Certifications: | ISO9001, CE, UL | Gasket Material: | EPDM |
| Gasket Glue: | Non-toxic, Food Grade | Material: | Tirtanium |
| Plate Type: | Gasketed Plate | Heat Transfer Area: | 0.15 M2 |
| Max Working Pressure: | 15 Bar | Plate Width: | 248 Mm |
| Application: | HVAC, Refrigeration, Food & Beverage | Plate Connection: | Clip-on |
Detailed Product Description

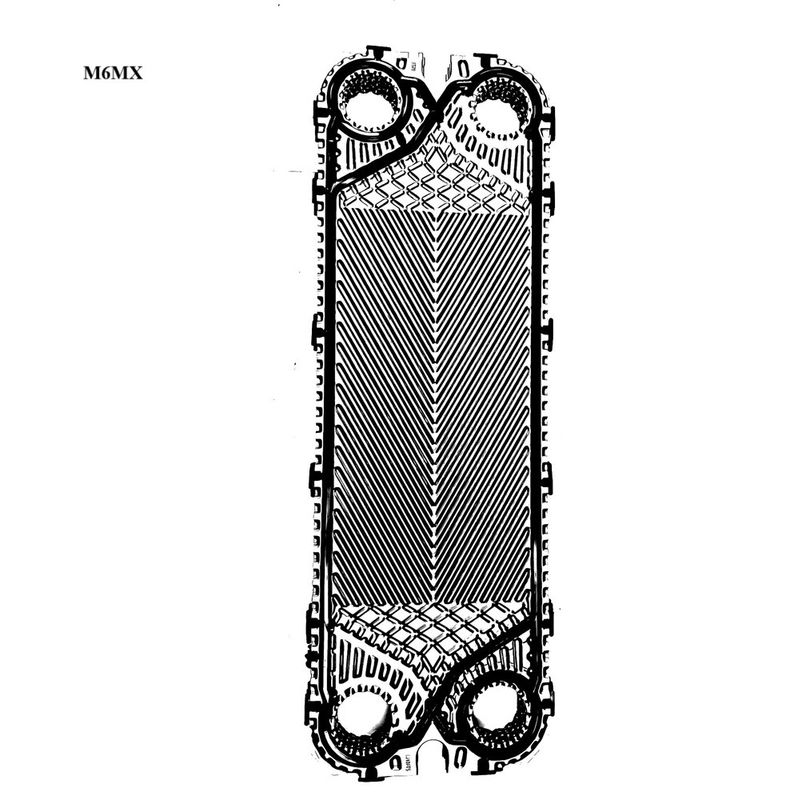

1. Equal to ALFA M6MX plate heat exchanger.
2. Plate gasket: NBR / EPDM
3. Plate material: 316L /304/Ti material
Same as ALFA M6 gasket plate heat exchanger, can replace original M6MX plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: clip on
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry
Well and High Quality Control

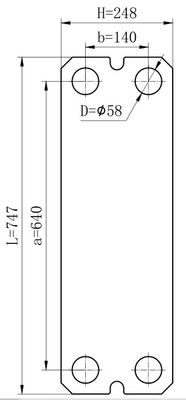

| Model | Corrugation Angle | Corrugation Depth (mm) | Angle Hole Diameter (mm) | Angle Hole Center Distance (mm) | Plate Size (mm) | Area of Plate (㎡) |
| M6B | 58°118° | 2 | φ59 | 640*140 | 749*249 | 0.15 |
| M6M | 60°126° | 3 | φ58 | 640*140 | 747*248 | 0.15 |
| M6MX | 60°126° | 3 | φ58 | 640*140 | 747*248 | 0.15 |
1. Plate material
*stainless steel AISI304(14301)
*stainless steel AIsI316(14401)
*Ti, ti-*Titanium and titaniumpalladium
Special steel *HASTELLoY alloy *254SMO
*20Cr,18Ni,,nickel(Ni) etc
2. Gaster material
*NBR,HT-NBR,HNBR
*EPDM,EPDM-NT,EPDM-HT
*CR
*Viton (FKM):Viton-A, Viton-G,Viton-B
3.Material Choose reference:
| Plate material | Suitable for fluid | |
| Stainless(AISI304,AISI316): | Clean water, river water, cooking oil, mineral oil | |
| Ti,Ti-Pd: | Sea water, salt water, salt | |
| 20Cr,18Ni,6Mo(254SMO): | Dilute sulfuric acid, dilute salinized water solution, inorganic water solution | |
| Ni: | High temperature, high viscosity caustic soda | |
| HASTELLOY: | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid | |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120℃ | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140℃ | High temperature mineral oil, high temperature water |
| EPDM | -25~+170℃ | Hot water, water vapor, acid, alkali |
| Viton | -5~+130℃ | Acid, alkali, fluid |

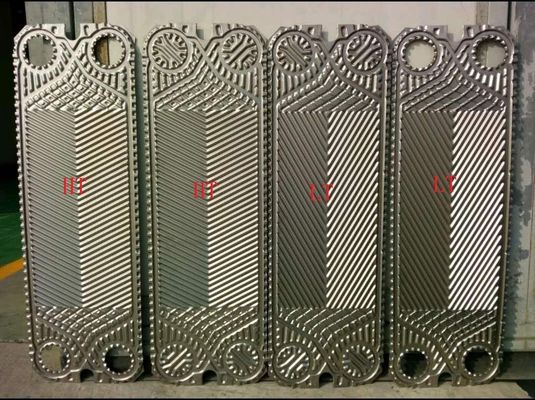

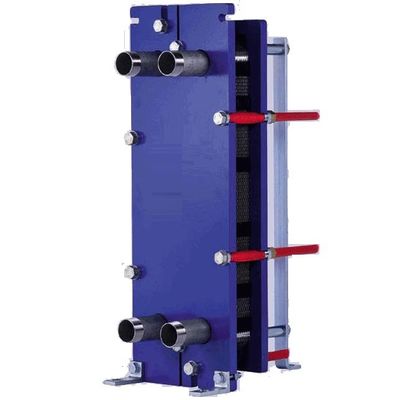

4.Poduct Show:
5.Other models
| ALFA Heat Exchanger Plate Gasket | ||||||
| M3 | M15M | M10BW | AM20B | Clip8 | TL6B | T20S |
| M6B | MX25M | MK15BW | A20B | Clip10 | TS6M | TL35S |
| M6M | MX25B | T20MW | AM20 | Clip15 | TL10B | TL35B |
| M6MX | M30 | MA30W | AK20 | P16 | TL10P | T45M |
| M10B | MA30S | AM10 | AX30B | P26 | TL15B | M20 |
| M10M | MA30M | A10B | AX30BW | P32 | T20M | T20MW |
| M15B | M6MW | A15B | Clip6 | P36 | T20B | P30 |
| Front6/Clip6WS | ||||||
6.More Information about spares
