| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | P16 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $20/Pcs |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 packs/month |
| Plate Thickness: | 0.5 Mm/0.6mm | Plate Arrangement: | Dialognal |
|---|---|---|---|

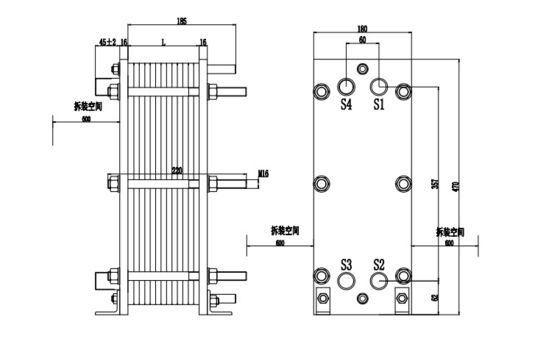

| Center Size: | 357*60 Mm | Max Working Temperature: | Up To 170°C |
| Certifications: | ISO9001, CE, UL | Gasket Material: | NBR/EPDM |
| Gasket Glue: | Non-toxic, Food Grade | Material: | 316/304 |
| Plate Type: | Gasketed Plate | Heat Transfer Area: | 0.03m2 |
| Max Working Pressure: | 13 Bar | Plate Size: | 427*123 Mm |
| Application: | HVAC, Refrigeration, Food & Beverage | Plate Connection: | Glue Type |
Detailed Product Description
1. Equal to P16 plate heat exchanger.
2. Plate gasket: NBR / EPDM
3. Plate material: 316L /304/Ti material
Same as P16 gasket plate heat exchanger, can replace original P16 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: Glue Type
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry
Well and High Quality Control
1. Plate material
*stainless steel AISI304(14301)
*stainless steel AIsI316(14401)
*Ti, ti-*Titanium and titaniumpalladium
Special steel *HASTELLoY alloy *254SMO
*20Cr,18Ni,,nickel(Ni) etc
2. Gaster material
*NBR,HT-NBR,HNBR
*EPDM,EPDM-NT,EPDM-HT
*CR
*Viton (FKM):Viton-A, Viton-G,Viton-B
3.Material Choose reference:
| Plate material | Suitable for fluid | |
| Stainless(AISI304,AISI316): | Clean water, river water, cooking oil, mineral oil | |
| Ti,Ti-Pd: | Sea water, salt water, salt | |
| 20Cr,18Ni,6Mo(254SMO): | Dilute sulfuric acid, dilute salinized water solution, inorganic water solution | |
| Ni: | High temperature, high viscosity caustic soda | |
| HASTELLOY: | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid | |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120℃ | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140℃ | High temperature mineral oil, high temperature water |
| EPDM | -25~+170℃ | Hot water, water vapor, acid, alkali |
| Viton | -5~+130℃ | Acid, alkali, fluid |

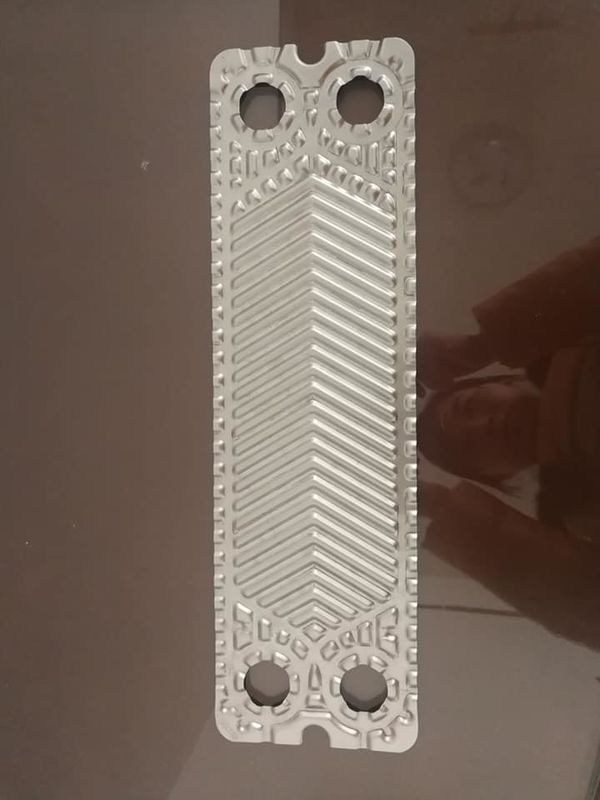

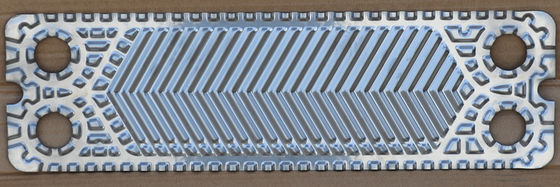

4.Poduct Show:
5.Other models
| Brand Model | ALFA-Laval | SONDEX | Thermowave | GEA | APV | Tranter | ||||
| PHE | M3 | S4 | TL90 | VT4 | H17 | GL-13 | ||||
| M6(B/M) | S7 | TL150 | VT8 | N35 | GC-16 | |||||
| M10(B/M) | S8 | TL250 | VT10 | Q030 | GX-18 | |||||
| M15(B/M) | S14 | TL400 | VT40 | Q055 | GC-26 | |||||
| M20(B/M) | S17 | TL500 | VT20 | A055 | GX-26 | |||||
| TS6 | S19 | TL650 | NT100(T/M/X) | A085 | GX-42 | |||||
| TL10B | S21 | TL850 | NT150(S/L) | J060 | GX-51 | |||||
| MX25(B/M) | S22 | TL100 | NT250(S/L) | J092 | GC-51 | |||||
| M30 | S47 | TL210 | NT350S | J107 | GC-60 | |||||
| TL6 | S41 | TL600 | N40L | J185 | GX-60 | |||||
| TS20 | S42 | TL550 | T4 | GX-91 | ||||||
| T20 | S62 | TL750 | B063 | GX-100 | ||||||
| AK20 | S43(AD) | TL800 | B110 | GX-85 | ||||||
| P16 | S65 | TL200 | GL-85 | |||||||
| S100 | GL-140 | |||||||||
| S81 | GX-140 | |||||||||
| S121 | ||||||||||
| S188 | ||||||||||
6.More Information about spares
