| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | P190 |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 packs/month |
| Plate Thickness: | 0.5 Mm | Plate Arrangement: | Parellel |
|---|---|---|---|
| Plate Length: | 2544*984 | Max Working Temperature: | Up To 170°C |
| Certifications: | ISO9001, CE, UL | Gasket Material: | EPDM |
| Gasket Glue: | Non-toxic, Food Grade | Material: | Stainless Steel |
| Plate Type: | Gasketed Plate | Heat Transfer Area: | 0.19 M2 |
| Max Working Pressure: | 13 Bar | Plate Width: | 2544*984mm |
| Application: | HVAC, Refrigeration, Food & Beverage | Plate Connection: | Button |
Detailed Product Description
1. Equal to APV P190 plate heat exchanger.
2. Plate gasket: NBR / EPDM/FKM
3. Plate material: 316L /304/Ti material/C276/904L
Same as APV P190 gasket plate heat exchanger, can replace original P190 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: Button
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry
Well and High Quality Control
| Model | Corrugation Angle | Corrugation Depth (mm) | Angle Hole Diameter (mm) | Angle Hole Center Distance (mm) | Plate Size (mm) | Area of Plate (㎡) |
| P190 | Vertical 120° | 4.6 | φ336 | 2137*570 | 2544*984 | 1.9 |
1. Plate material
*stainless steel AISI304(14301)
*stainless steel AIsI316(14401)
*Ti, ti-*Titanium and titaniumpalladium
Special steel *HASTELLoY alloy *254SMO
*20Cr,18Ni,,nickel(Ni) etc
2. Gaster material
*NBR,HT-NBR,HNBR
*EPDM,EPDM-NT,EPDM-HT
*CR
*Viton (FKM):Viton-A, Viton-G,Viton-B
3.Material Choose reference:
| Plate material | Suitable for fluid | |
| Stainless(AISI304,AISI316): | Clean water, river water, cooking oil, mineral oil | |
| Ti,Ti-Pd: | Sea water, salt water, salt | |
| 20Cr,18Ni,6Mo(254SMO): | Dilute sulfuric acid, dilute salinized water solution, inorganic water solution | |
| Ni: | High temperature, high viscosity caustic soda | |
| HASTELLOY: | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid | |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120℃ | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140℃ | High temperature mineral oil, high temperature water |
| EPDM | -25~+170℃ | Hot water, water vapor, acid, alkali |
| Viton | -5~+130℃ | Acid, alkali, fluid |

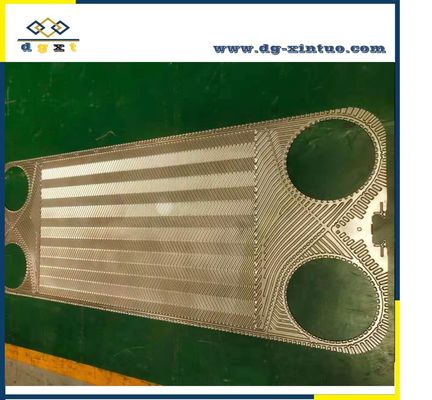

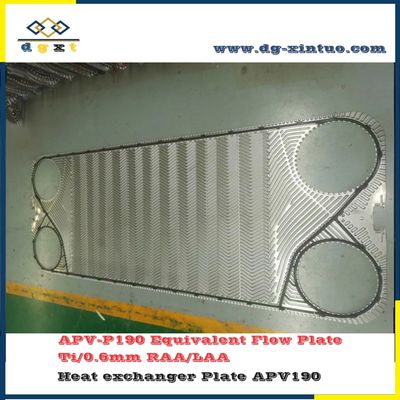

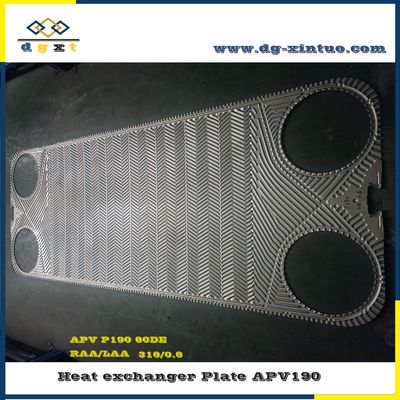

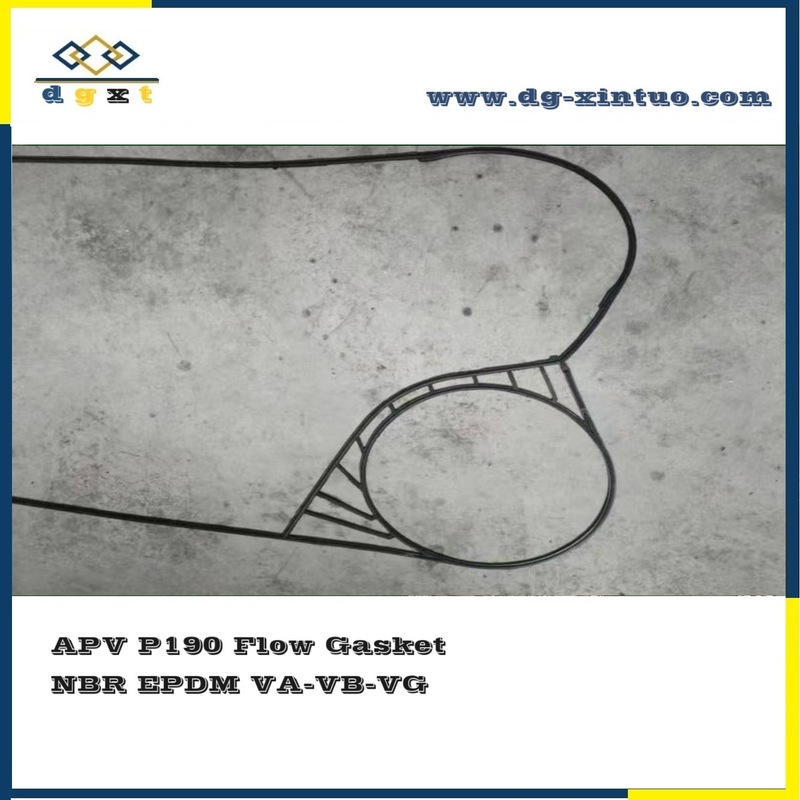

4.Poduct Show:
5.Other models
| APV Heat Exchanger Plate Gasket | ||||||
| T4 | Q030E | A085 | M060 | SR6AG | B134 | TR9GN |
| H12 | Q055E | A145 | M092 | R8GI | B158 | TR9GL |
| H12 Water Generator | Q080E | J060 | M107 | SR9 | B205 | K34 |
| H17 | Q030D | J092 | SR2 | R10 | P105 | K55 |
| N25 | Q055D | J107 | SR3 | R14 | P190 | K71 |
| N35 | Q080D | J154 | R5 | B063 | TR9AL | TR9AV |
| N50 | A055 | J185 | SR6GL | B110 | TR9AV | S190 |
| S380 | B063 | B110 | ||||
