| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | FP08 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Operating Temperature: | ≤250℃ | Plate Number: | 15-25pcs |
|---|---|---|---|
| Test Pressure: | 1.3/2.1mpa | Port: | Guangzhou |
| Interface: | DN200 | Voltage: | 380V |
| Type: | FNH Type Air Cooled Condenser | Sealing Performance: | High |
The High Pressure Plate Heat Exchanger is a highly efficient and versatile solution designed for a wide range of industrial applications. Engineered to meet the demanding requirements of modern processes, this product offers exceptional heat transfer performance combined with robust construction. Suitable for various trade terms including DEW, FOB, CIF, and CRF, it ensures flexibility in shipping and procurement, catering to the needs of global customers. The unit is available with OEM options, allowing customization to fit specific operational requirements and integration into existing systems seamlessly.
One of the standout features of this heat exchanger is its ability to operate under high pressure conditions, with test pressures rated at 1.3 MPa and 2.1 MPa. This capability makes it ideal for applications where maintaining integrity under elevated pressures is critical. Whether used in chemical processing, HVAC systems, power generation, or other industrial sectors, the High Pressure Plate Heat Exchanger delivers reliable performance without compromising safety or efficiency.

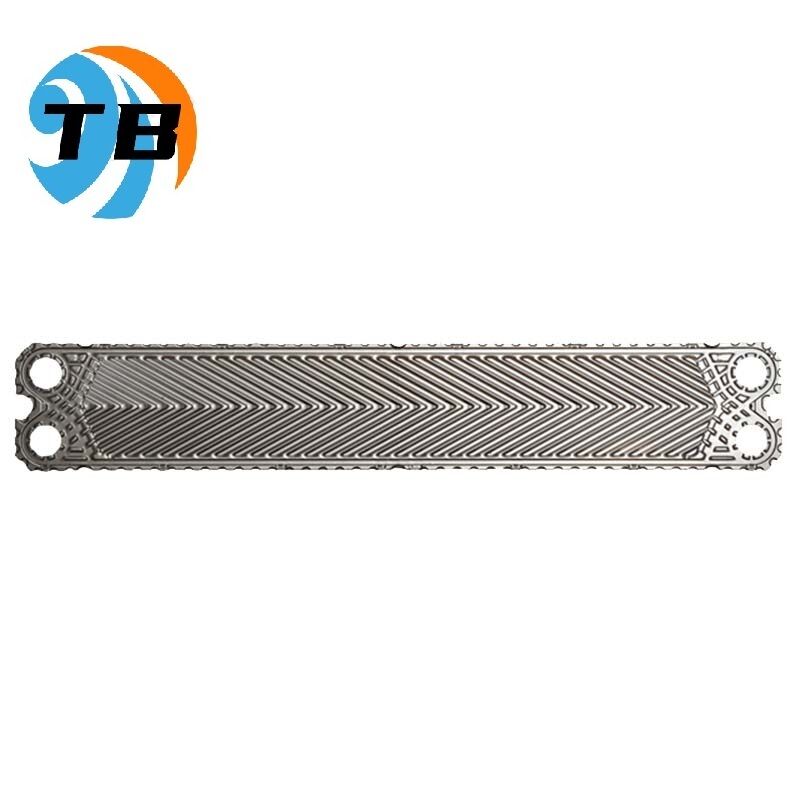

The plate thickness ranges from 0.4 mm to 1.2 mm, providing flexibility in design and application. Thinner plates enhance heat transfer efficiency due to reduced thermal resistance, while thicker plates offer increased durability and resistance to wear and corrosion. This range allows the product to be tailored for specific process fluids and operating conditions, optimizing thermal exchange and prolonging service life.
Voltage specifications for the unit are set at 380V, ensuring compatibility with standard industrial power supplies. This facilitates straightforward installation and integration with control systems, minimizing downtime and installation costs. The electrical design is robust, supporting consistent operation even under demanding industrial environments.
The product line includes Industrial Brazed Plate Heat Exchangers, which utilize brazing techniques to bond plates together without the need for gaskets. This construction enhances thermal efficiency and reduces the risk of leaks, making it an excellent choice for high-pressure and high-temperature applications. These brazed exchangers are compact, durable, and require minimal maintenance, providing long-term operational savings.
Additionally, the Frame And Plate Heat Exchanger variant offers modularity and ease of maintenance. The frame supports a series of plates that can be easily removed and cleaned or replaced, which is particularly advantageous in processes where fouling or scaling is a concern. The frame design also allows for capacity adjustment by adding or removing plates, making it a flexible solution for changing process demands.
Overall, the High Pressure Plate Heat Exchanger, including both Industrial Brazed Plate Heat Exchangers and Frame And Plate Heat Exchanger models, represents a comprehensive heat transfer solution. Its combination of high-pressure capability, customizable plate thickness, standard voltage compatibility, and OEM availability makes it a preferred choice for industries seeking efficiency, reliability, and adaptability in their thermal management systems.
With a focus on quality and performance, this product is rigorously tested to ensure it meets stringent pressure and safety standards. The availability of different trade terms such as DEW, FOB, CIF, and CRF further enhances its appeal to international buyers, facilitating smooth logistics and cost-effective delivery. Whether upgrading existing systems or designing new installations, the High Pressure Plate Heat Exchanger provides a dependable and efficient heat transfer solution tailored to industrial needs.
| Trade Item | DEW/FOB/CIF/CRF |
| Plate Thickness | 0.4-1.2 Mm |
| Interface | DN200 |
| Port | Guangzhou |
| Liquid Flow Rate (m³/h) | 3.6-39 |
| Warranty | 12 Months |
| Applications | HVAC, Chemical, Food & Beverage, Pharmaceutical |
| Operating Temperature | ≤250℃ |
| Plate Number | 15-25 pcs |
| OEM | Yes |
The TB A055 model, a Fully Welded Plate Heat Exchanger, is a high-performance FNH Type Air Cooled Condenser originating from China. Designed to operate efficiently at temperatures up to ≤250℃, this product is ideal for a variety of industrial and commercial applications where reliable heat exchange is critical. With a plate hole size of 30mm and a plate number ranging from 15 to 25 pieces, it ensures optimal heat transfer and durability.
The Copper Brazed Plate Heat Exchanger design of the TB A055 makes it particularly suitable for scenarios requiring compact and corrosion-resistant heat exchangers. Its fully welded construction enhances its robustness, making it an excellent choice for harsh environments where leakage prevention is paramount. This model is widely used in HVAC systems, refrigeration units, chemical processing plants, and power generation facilities to efficiently manage heat transfer between fluids.
In refrigeration systems, the TB A055 Copper Brazed Plate Heat Exchanger serves as a reliable condenser that improves energy efficiency and system longevity. It is also extensively utilized in industrial cooling applications, where controlling operating temperatures below 250℃ is essential to maintain system integrity and performance. Additionally, its air-cooled condenser type makes it suitable for outdoor installations where water availability is limited or where environmental regulations restrict water usage.
The versatility of the TB A055 model allows it to be applied in scenarios such as oil cooling, food and beverage processing, pharmaceuticals, and marine applications. Its fully welded and brazed construction ensures it can withstand high pressures and corrosive fluids, making it a dependable choice for process industries requiring stringent hygiene and safety standards.
With a 12-month warranty, the TB Fully Welded Plate Heat Exchanger offers customers peace of mind regarding product reliability and support. Its efficient heat transfer capabilities, combined with durable materials and thoughtful engineering, make the TB A055 an outstanding solution for various heat exchange needs across multiple sectors.
TB brand offers the A055 model plate heat exchanger, a high-quality product originating from China. This plate heat exchanger features a DN200 interface and a 30mm plate hole size, making it suitable for a variety of industrial applications. Designed to operate efficiently at temperatures up to ≤250℃, it ensures reliable performance under demanding conditions.
Our product customization services include options for Copper Brazed Plate Heat Exchanger and Full Welded Plate Heat Exchanger configurations, allowing you to select the best solution tailored to your specific needs. Whether you require enhanced durability or superior heat transfer efficiency, TB’s A055 plate heat exchanger can be customized accordingly.
We offer flexible trade terms including DEW, FOB, CIF, and CRF, with ports available in Guangzhou for convenient shipping. Trust TB’s expertise to provide you with a fully customized Full Welded Plate Heat Exchanger designed to meet your operational requirements.
