| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | Tr9gl |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Width: | 2544*984mm | Gasket Material: | EPDM |
|---|---|---|---|
| Platethickness: | 0.4 - 1.2 Mm | Platedesign: | Gasketed Or Welded |
| Platetype: | Chevron Pattern | Certifications: | ISO9001, CE, UL |
| Maxoperatingtemperature: | 225°C | Weight: | Depends On Model And Size |

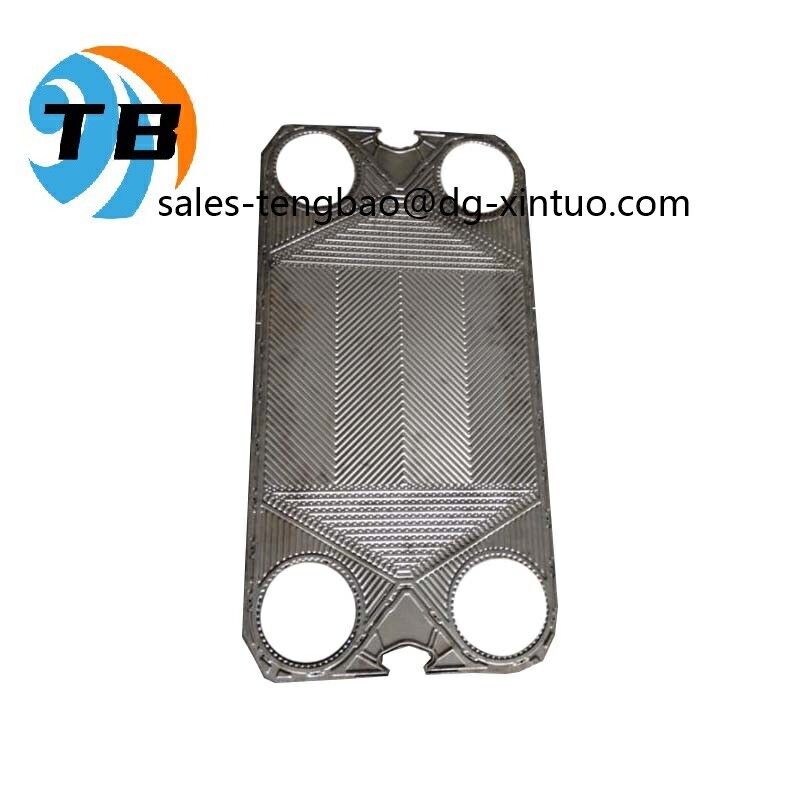

The APV heat exchanger plate is a vital component designed to optimize heat transfer efficiency in various industrial applications. Known for its robust construction and superior performance, this plate is an integral part of the APV Corrugated Plate Heat Exchanger series. Engineered to meet the high demands of modern thermal management systems, it offers exceptional durability and reliability, making it suitable for a wide range of applications including HVAC, food and beverage processing, and chemical processing industries.
One of the standout features of the APV heat exchanger plate is its compatibility with the APV High Efficiency Plate Heat Exchanger systems. These systems are renowned for their ability to maximize heat transfer while minimizing energy consumption. The corrugated design of the plate enhances turbulence within the fluid channels, which significantly improves the heat exchange rate without causing excessive pressure drops. This design not only increases thermal performance but also contributes to the overall compactness and lightweight nature of the heat exchanger unit.
Constructed to withstand demanding operating conditions, the APV heat exchanger plate boasts a maximum operating temperature of up to 225°C. This high-temperature tolerance ensures that the plate can be utilized in processes involving hot fluids and steam, common in chemical processing and food & beverage industries. The plate's material and design ensure long-term stability and resistance to thermal stresses, which translates to reduced maintenance costs and longer service life.
The gasket material used in the APV heat exchanger plate is EPDM (ethylene propylene diene monomer), which is well-known for its excellent resistance to heat, chemicals, and ozone. EPDM gaskets provide a reliable seal that prevents leakage and contamination between the two fluid streams, ensuring the heat exchanger operates efficiently and safely. The choice of EPDM also makes the plate suitable for applications involving aggressive fluids and hygienic processing, such as food and beverage production.
Dimensionally, the APV heat exchanger plate measures 2544mm in width and 984mm in height, making it suitable for large-scale heat exchange systems. Its sizeable dimensions allow it to handle substantial flow rates, thereby facilitating efficient thermal energy transfer in industrial plants. The plate’s corrugated pattern, combined with its generous size, creates an optimal flow path that enhances heat transfer while maintaining structural integrity under high pressures.
As part of the APV Thermal Plate Exchanger range, this heat exchanger plate exemplifies the advanced technology and engineering expertise that APV brings to the market. The thermal plate exchanger design ensures a compact footprint, which is beneficial for installations where space is limited. Moreover, the modular nature of APV plate heat exchangers means that plates can be added or removed to adjust capacity, making it a flexible and scalable solution for evolving industrial needs.
In HVAC applications, the APV heat exchanger plate contributes to efficient heating and cooling processes, improving energy savings and system performance. In the food and beverage sector, it supports stringent hygiene standards and helps maintain product quality by providing precise temperature control. Meanwhile, in chemical processing, the plate’s resilience and high thermal efficiency enable safe and effective heat transfer for various chemical reactions and processes.
Overall, the APV heat exchanger plate is a high-performance component that combines innovative design with durable materials to deliver reliable and efficient heat exchange. Whether integrated into an APV Corrugated Plate Heat Exchanger, an APV High Efficiency Plate Heat Exchanger, or an APV Thermal Plate Exchanger, this plate ensures optimal thermal management across diverse industrial applications, meeting the rigorous demands of today’s processing environments.
| Type | Heat Exchanger Plate |
| Plate Width | 2544*984 mm |
| Heat Transfer Coefficient | Up To 5000 W/m²K |
| Application | HVAC, Food & Beverage, Chemical Processing |
| Plate Type | Chevron Pattern |
| Max Working Pressure | 13 Bar |
| Max Operating Temperature | 225°C |
| Weight | Depends On Model And Size |
| Plate Thickness | 0.4 - 1.2 mm (commonly 0.5 mm) |
The TB A145 APV Brazed Plate Heat Exchanger, manufactured in China and certified with ISO9001, is designed for a wide range of applications and operational scenarios that demand high efficiency and reliable performance. With a plate thickness ranging from 0.4 to 1.2 mm, and options for gasketed or welded plate designs, this versatile heat exchanger is suitable for diverse industries and environments.
In industrial settings, the TB A145 model excels in heating and cooling processes where precise temperature control is crucial. Its robust construction and maximum operating pressure of 25 bar make it ideal for chemical processing plants, pharmaceutical manufacturing, and food and beverage production. The availability of gasket materials such as NBR, EPDM, or Viton ensures compatibility with various fluids, including aggressive or corrosive media, enhancing durability and safety.
The APV Brazed Plate Heat Exchanger is also widely used in HVAC systems for commercial and residential buildings. Its compact size and high thermal efficiency enable effective heat recovery and energy savings in heating, ventilation, and air conditioning applications. Whether in heat pumps, chillers, or district heating networks, the TB A145 provides reliable performance under varying pressures and temperatures.
Additionally, the APV High Efficiency Plate Heat Exchanger is well-suited for renewable energy systems, such as solar thermal installations and biomass boilers, where optimizing heat transfer efficiency is essential to maximize energy utilization. The lightweight design, which varies depending on model and size, facilitates easy installation and maintenance in confined spaces.
In marine and automotive industries, where space and weight constraints are critical, the TB A145 APV Brazed Plate Heat Exchanger offers compactness without compromising on thermal performance. Its ability to handle high pressures and temperatures makes it suitable for engine cooling, oil cooling, and other fluid heat exchange tasks.
Overall, the TB A145 APV Brazed Plate Heat Exchanger delivers exceptional versatility across multiple application occasions and scenarios. From industrial process heating to HVAC systems, renewable energy, and transportation sectors, this product meets the demands of modern heat exchange with superior quality and efficiency.
TB offers customized APV High Efficiency Plate Heat Exchanger solutions tailored to meet your specific needs. Our APV Stainless Steel Plate Heat Exchanger, model A145, is designed with a chevron pattern plate type to ensure optimal heat transfer performance. Manufactured in China, this product is certified with ISO9001, CE, and UL, guaranteeing high quality and reliability.
The APV Plate Heat Exchanger features a heat transfer coefficient of up to 5000 W/m²K, enabling efficient thermal exchange in various industrial applications. It supports a maximum operating temperature of 225°C, making it suitable for demanding environments. The weight of the unit depends on the model and size, allowing customization to fit your installation requirements.
With TB's expertise and commitment to quality, you can trust our APV High Efficiency Plate Heat Exchanger to deliver superior performance, durability, and compliance with international standards. Contact us to customize your APV Stainless Steel Plate Heat Exchanger today.
APV heat exchanger plates are designed for efficient thermal transfer in various industrial applications. To ensure optimal performance and longevity of your APV heat exchanger, it is important to follow proper installation, operation, and maintenance guidelines.
For technical support, please refer to the product manual which provides detailed instructions on plate handling, gasket replacement, cleaning procedures, and troubleshooting tips. Regular inspection and maintenance of the plates and gaskets are essential to prevent leaks and maintain heat transfer efficiency.
In case of any performance issues or technical inquiries, you should have the product model number and serial number available to facilitate quick and accurate assistance. Our technical support team is equipped to provide guidance on system design, installation, and operational optimization.
We recommend using only original APV spare parts and accessories to maintain the integrity and warranty of your heat exchanger. Proper storage and handling of plates before installation are also critical to avoid damage and contamination.
For cleaning, follow the recommended chemical or mechanical cleaning methods outlined in the product documentation to avoid damaging the plate surfaces and gaskets. Always ensure that cleaning agents are compatible with the materials used in your heat exchanger.
By adhering to these support and service guidelines, you can maximize the efficiency, reliability, and service life of your APV heat exchanger plates.
