| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | J092 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Gasket Material: | EPDM | Application: | Food Processing, Dairy, Beverage, Chemical Industries |
|---|---|---|---|
| Max Working Pressure: | 13 Bar | Maxoperatingpressure: | Up To 25 Bar |
| Connectiontype: | Threaded Or Flanged Ports | Platetype: | Chevron Pattern |
| Gasketmaterial: | NBR, EPDM, Or Viton | Plate Length: | 2544*984 |
The APV Plate Thermal Exchanger is a highly efficient and versatile heat exchange solution designed to meet the demands of various industrial applications. Known for its robust construction and superior performance, the APV Thermal Exchange Plate is a key component in achieving optimal thermal transfer in processes ranging from food and beverage production to chemical and pharmaceutical industries. This product stands out due to its precision engineering and adaptability, ensuring reliable operation under different conditions.
One of the defining features of the APV Heat Exchanger Component is its connection type. It offers options for both threaded and flanged ports, providing flexibility in installation and integration with existing piping systems. This adaptability makes it easier for engineers and technicians to configure the heat exchanger according to specific system requirements, enhancing overall efficiency and reducing downtime during maintenance or upgrades.
The plate thickness of the APV Thermal Exchange Plate varies between 0.4 mm and 1.2 mm. This range allows for customization based on the thermal load and pressure conditions of the application. Thinner plates facilitate rapid heat transfer due to reduced thermal resistance, while thicker plates provide enhanced durability and resistance to wear and corrosion. This balance between thickness and performance ensures that the APV Plate Thermal Exchanger remains reliable and effective over extended periods of operation.
The gasket material used in the APV Heat Exchanger Component is EPDM (Ethylene Propylene Diene Monomer), known for its excellent chemical resistance and mechanical properties. EPDM gaskets provide a tight seal between plates, preventing leaks and ensuring efficient heat transfer without contamination between the fluids. This material is especially suitable for applications involving hot water, steam, and various chemical solutions, contributing to the longevity and safety of the heat exchanger.

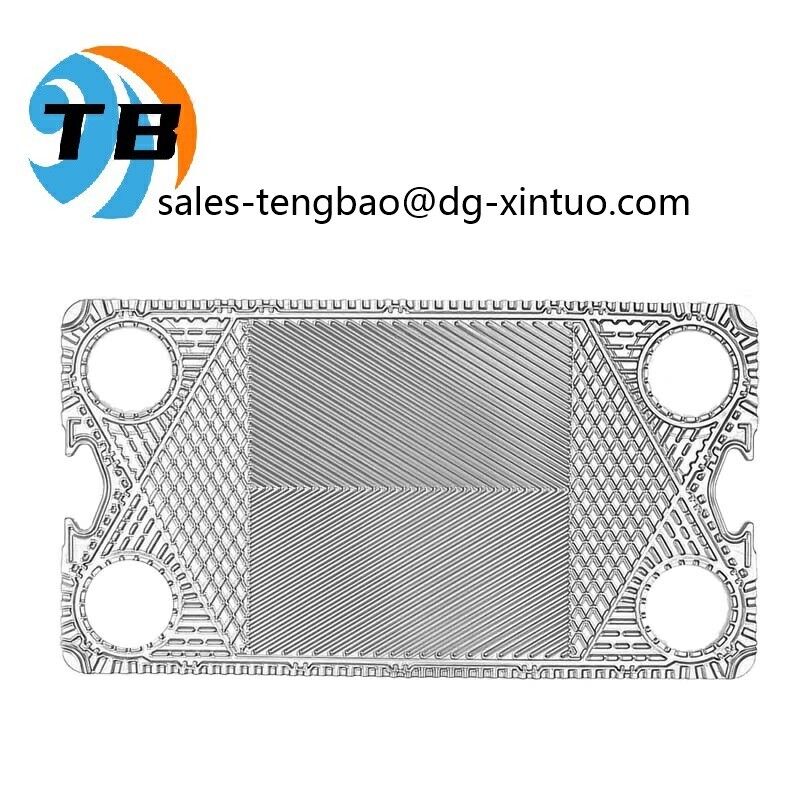

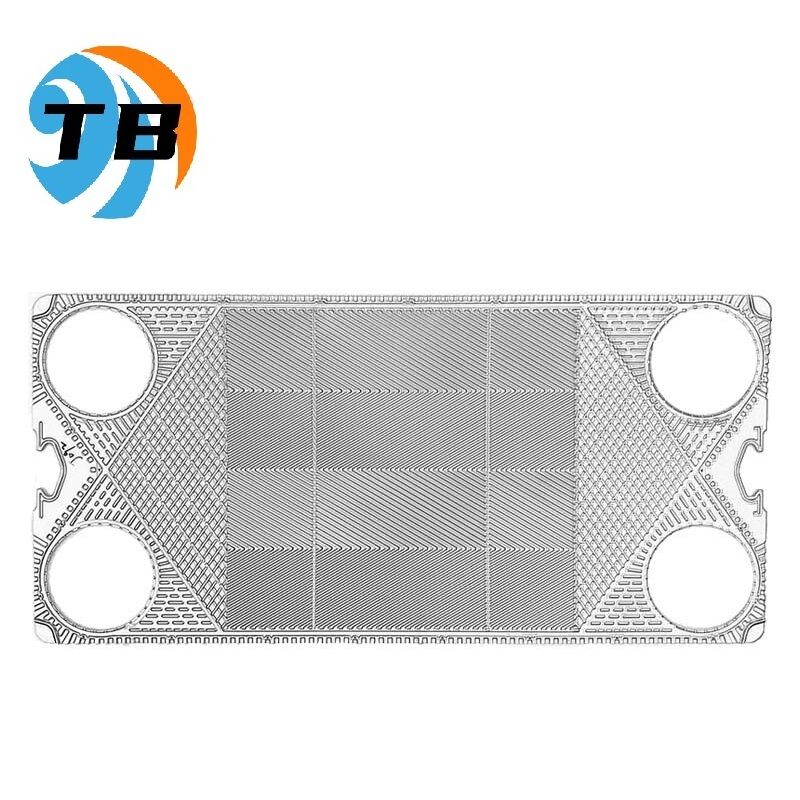

The plate type employed in the APV Thermal Exchange Plate features a chevron pattern, which is instrumental in enhancing turbulence and increasing the heat transfer coefficient. The chevron design promotes effective mixing of fluids on both sides of the plate, thereby maximizing heat exchange efficiency while minimizing pressure drop. This pattern is a hallmark of APV’s engineering excellence, combining fluid dynamics principles with practical application to deliver superior thermal performance.
Another important attribute of this APV Heat Exchanger Component is the plate connection style. Utilizing a button-type connection, the plates are securely fastened while allowing for easy disassembly during cleaning, inspection, or replacement. This connection type ensures the structural integrity of the plate pack and simplifies maintenance procedures, which is critical in industries where hygiene and reliability are paramount.
In summary, the APV Plate Thermal Exchanger is a meticulously designed product that combines advanced materials, innovative design, and practical features to meet the rigorous demands of modern heat exchange applications. With options for threaded or flanged ports, customizable plate thickness ranging from 0.4 to 1.2 mm, durable EPDM gasket material, a highly efficient chevron plate pattern, and a convenient button-type plate connection, the APV Thermal Exchange Plate delivers exceptional performance and reliability. Whether used in food processing, chemical manufacturing, or other industrial sectors, the APV Heat Exchanger Component represents a trusted choice for efficient and sustainable thermal management.
| Product Name | APV Heat Exchanger Plate |
| Max Working Pressure | 13 Bar |
| Max Operating Pressure | Up To 25 Bar |
| Heat Transfer Area | 0.19 M² |
| Plate Length | 2544*984 |
| Plate Connection | Button |
| Connection Type | Threaded Or Flanged Ports |
| Gasket Material | NBR, EPDM, Or Viton |
| Gasket Glue | Non-toxic, Food Grade |
| Application | Food Processing, Dairy, Beverage, Chemical Industries |
The TB brand APV Heat Exchange Panel, model number A055, originating from China and certified with ISO9001, is a highly efficient solution designed for diverse industrial and commercial applications. With a maximum working pressure of 13 Bar and a maximum working temperature of up to 170°C, this plate heat exchanger is engineered to handle demanding thermal exchange processes with reliability and durability. The plate thickness ranges from 0.4 to 1.2 mm, ensuring optimal balance between strength and heat transfer efficiency. Its chevron pattern plate type enhances turbulence and heat transfer rates, making it ideal for various heat exchange scenarios.
The APV Plate Heat Transfer Unit is widely used in industries such as food and beverage processing, chemical manufacturing, pharmaceuticals, HVAC systems, and power generation. In the food and beverage sector, it is employed for pasteurization, sterilization, and cooling of liquids, ensuring product safety and quality while maintaining energy efficiency. The compact design and efficient heat transfer capabilities of the APV Thermal Exchange Plate make it suitable for applications requiring precise temperature control and hygiene standards.
In chemical and pharmaceutical industries, the APV Heat Exchange Panel facilitates the transfer of heat between process fluids without contamination, crucial for maintaining product integrity. Its ability to operate at high pressures and temperatures makes it suitable for processes involving viscous fluids, corrosive substances, or aggressive thermal cycles. The modular design allows for easy maintenance and scalability, accommodating varying production demands.
Moreover, the APV Plate Heat Transfer Unit is extensively used in HVAC systems for heating and cooling purposes, contributing to energy savings and environmental sustainability. Its compact size and high thermal efficiency enable installation in limited spaces without compromising performance. The chevron pattern plates increase turbulence, reducing fouling and enhancing heat exchange efficiency, which is beneficial in both residential and industrial heating or cooling scenarios.
Overall, the TB APV Thermal Exchange Plate A055 is an ideal choice for applications requiring reliable, efficient, and hygienic heat transfer solutions. Its robust construction, combined with advanced design features and ISO9001 certification, ensures long-term performance in a wide range of thermal exchange occasions and scenarios.
