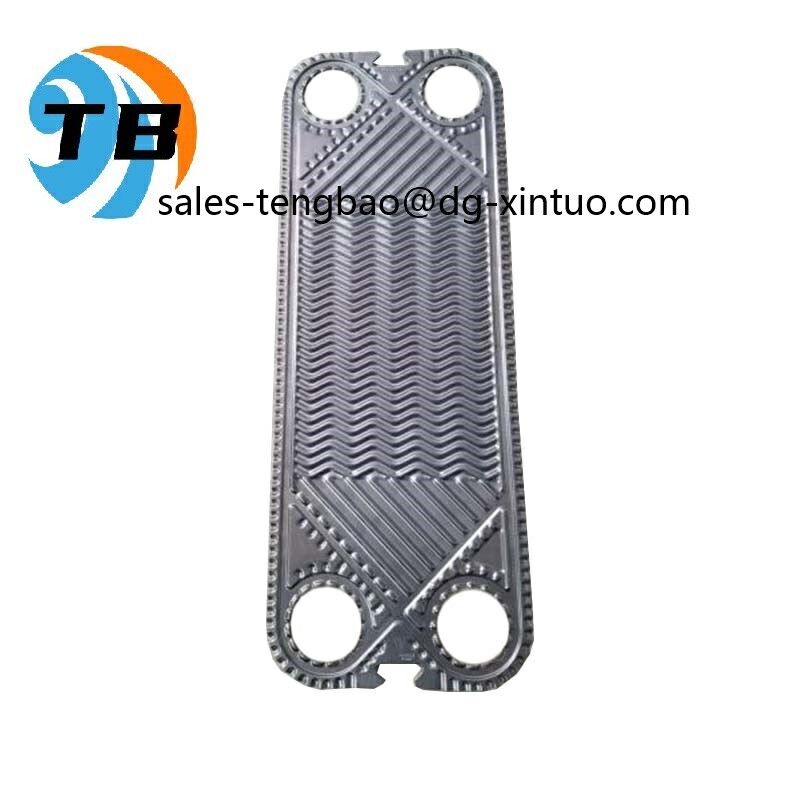

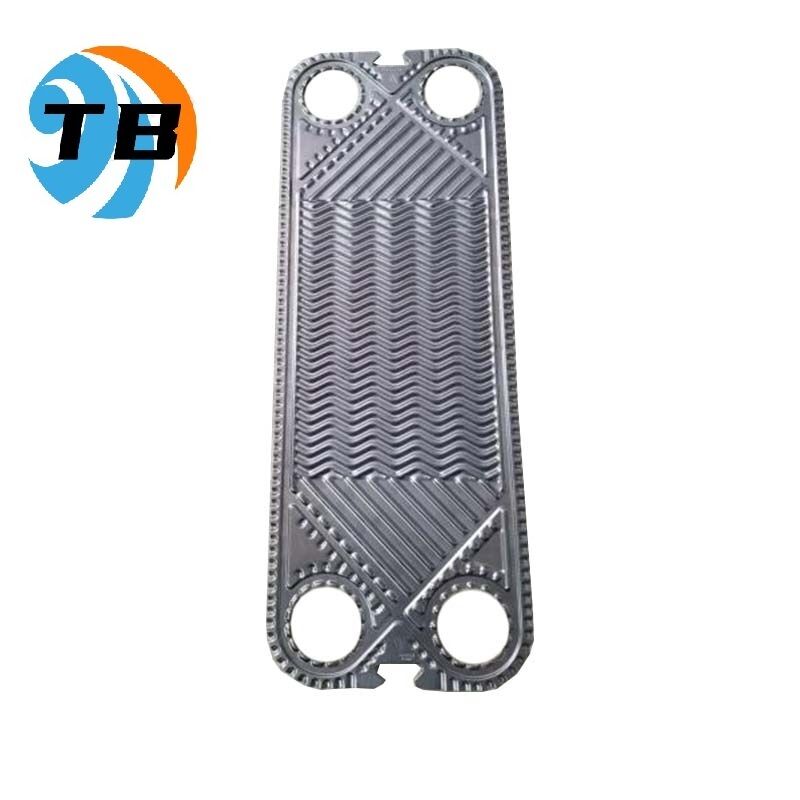

EPDM Gasket Material APV Heat Transfer Plate Including Platedimensions Varies By Model Engineered for Thermal Performance

Product Description:

The APV Plate Thermal Exchanger is a highly efficient and reliable solution designed to meet the demanding requirements of modern heat transfer applications. Known for its robust construction and superior performance, this product stands out in the field of heat exchangers due to its innovative design and exceptional quality standards. The APV Plate Heat Exchanger is engineered with precision to deliver optimal thermal efficiency, making it an ideal choice for a wide range of industries including food processing, chemical, pharmaceutical, and HVAC systems.
One of the key features of the APV Heat Exchange Panel is its plate surface area, which ranges from 0.1 to 1.5 square meters. This range allows for flexibility in application, enabling users to select the appropriate size to meet their specific heat transfer needs. Whether it is for small-scale operations or large industrial processes, the APV Plate Thermal Exchanger offers scalable solutions without compromising on performance or durability.
The plates themselves are designed with a chevron pattern, a hallmark of APV’s engineering excellence. This Chevron Pattern not only enhances the structural integrity of each plate but also significantly improves the heat transfer efficiency by creating turbulent flow conditions. This turbulence increases the heat transfer coefficient while minimizing fouling, which ensures consistent operation and reduces maintenance requirements. The unique design of the APV Plate Heat Exchanger’s plates maximizes the heat exchange surface area within a compact footprint, making it an economical and space-saving solution.
Another important aspect of the APV Heat Exchange Panel is the plate connection type, which uses a button connection system. This design facilitates easy assembly and disassembly, allowing for quick maintenance and cleaning. The button connection ensures a secure and leak-proof seal between plates, enhancing the overall reliability and longevity of the heat exchanger. This feature is particularly valuable in industries where hygiene and cleanliness are critical, such as in food and beverage processing.
The plates have a thickness of 0.5 mm, which strikes a perfect balance between durability and thermal conductivity. The thin plates allow for efficient heat transfer while maintaining sufficient strength to withstand high pressures and temperatures. This thickness is carefully selected to optimize performance without compromising the mechanical stability of the heat exchanger components.
Quality and safety are paramount in the design and manufacture of the APV Plate Thermal Exchanger. This product is certified under ISO9001, CE, and UL standards, ensuring that it meets stringent international quality and safety requirements. These certifications reflect the company’s commitment to delivering products that are not only effective but also safe and reliable for use in various industrial environments. Customers can trust that the APV Plate Heat Exchanger complies with global standards, providing peace of mind and confidence in its operation.
In summary, the APV Plate Thermal Exchanger combines advanced engineering, high-quality materials, and rigorous manufacturing standards to deliver a heat exchanger that excels in performance and reliability. With its customizable plate surface area ranging from 0.1 to 1.5 m², chevron patterned plates, convenient button connection system, and optimal plate thickness of 0.5 mm, it is tailored to meet diverse heat transfer needs. Backed by ISO9001, CE, and UL certifications, the APV Heat Exchange Panel is a trusted choice for industries seeking efficient and durable heat exchange solutions.

Features:

• Product Name: APV Heat Exchanger Plate
• Plate Width: 2544*984mm
• Plate Thickness: 0.5 mm
• Material: Stainless Steel
• Plate Arrangement: Parallel
• Certifications: ISO9001, CE, UL
• High efficiency APV Heat Exchanging Plate design
• Durable and corrosion-resistant APV Plate Heat Transfer Unit
• Reliable performance of APV Plate Heat Exchanger for various applications

Technical Parameters:

Applications:

The TB A145 model is a premium APV Heat Transfer Plate designed and manufactured in China, certified under ISO9001 standards to ensure the highest quality and performance. This APV Thermal Exchange Component is engineered with a plate thickness of 0.5 mm and offers a plate surface area ranging from 0.1 to 1.5 m², providing versatile options to suit various industrial requirements. The plates are arranged in a parallel configuration, enabling efficient heat transfer and optimized flow dynamics.
The APV Heat Exchanger Component TB A145 is widely used across numerous industries due to its robust design and reliable operation. In the food and beverage sector, it is ideal for pasteurization, sterilization, and cooling processes, where maintaining product quality and safety is paramount. Its CIP (Clean-in-Place) cleaning method allows for easy and hygienic maintenance without disassembly, making it perfectly suited for applications with stringent cleanliness standards.
In the pharmaceutical and biotechnology industries, the TB A145 plays a critical role in temperature control during sensitive production stages, ensuring product integrity and compliance with regulatory requirements. The parallel plate arrangement facilitates uniform heat distribution, which is essential in processes demanding precise thermal management. Additionally, its compact design and variable plate dimensions allow seamless integration into existing systems, enhancing operational efficiency.
The APV Thermal Exchange Component is also extensively utilized in HVAC systems and chemical processing plants. It provides effective heat recovery, energy saving, and temperature regulation, contributing to overall system sustainability. The versatility of the APV Heat Exchanger Component TB A145 allows it to handle a wide range of fluids, including corrosive and viscous media, making it a reliable choice for diverse industrial scenarios.
Furthermore, the TB A145 model’s design ensures easy scalability and customization, accommodating varying capacity needs without compromising on performance. Whether it is used in large-scale industrial plants or smaller pilot units, this APV Heat Transfer Plate delivers consistent thermal efficiency and durability. Its origin from China combines cost-effectiveness with world-class manufacturing standards, making it a preferred solution for global markets.
In summary, the APV Heat Exchanger Component TB A145 from TB is an indispensable product for industries requiring efficient, hygienic, and reliable heat exchange solutions. Its CIP cleaning method, ISO9001 certification, and adaptable plate dimensions ensure it meets diverse application occasions and scenarios, from food processing and pharmaceuticals to HVAC and chemical industries.

Customization:

TB offers customized APV Heat Transfer Plate solutions with the model number A145, designed to meet diverse thermal exchange requirements. Manufactured in China and certified with ISO9001, our APV Plate Heat Transfer Unit ensures high-quality and reliable performance.
The plates feature a button-type connection and come in various dimensions depending on the model, allowing for flexible configurations. The plate arrangement is parallel, optimizing the heat transfer efficiency of the APV Thermal Exchange Plate.
Constructed with a plate thickness of 0.5 mm and equipped with EPDM gasket material, these heat exchanger plates provide excellent sealing and durability. TB's customized APV Heat Transfer Plates are ideal for applications demanding precise thermal management and robust construction.
