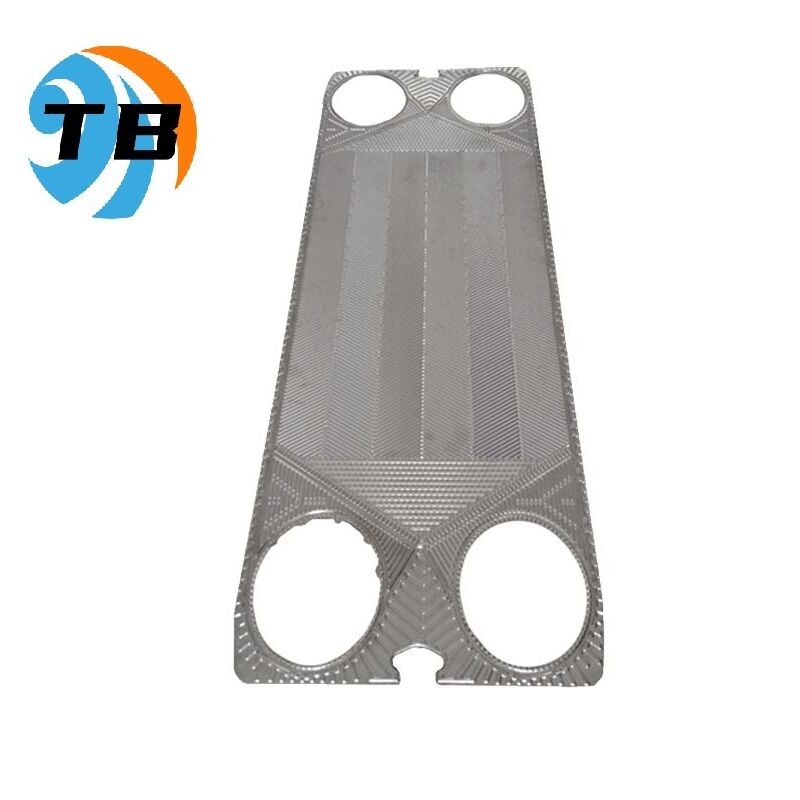

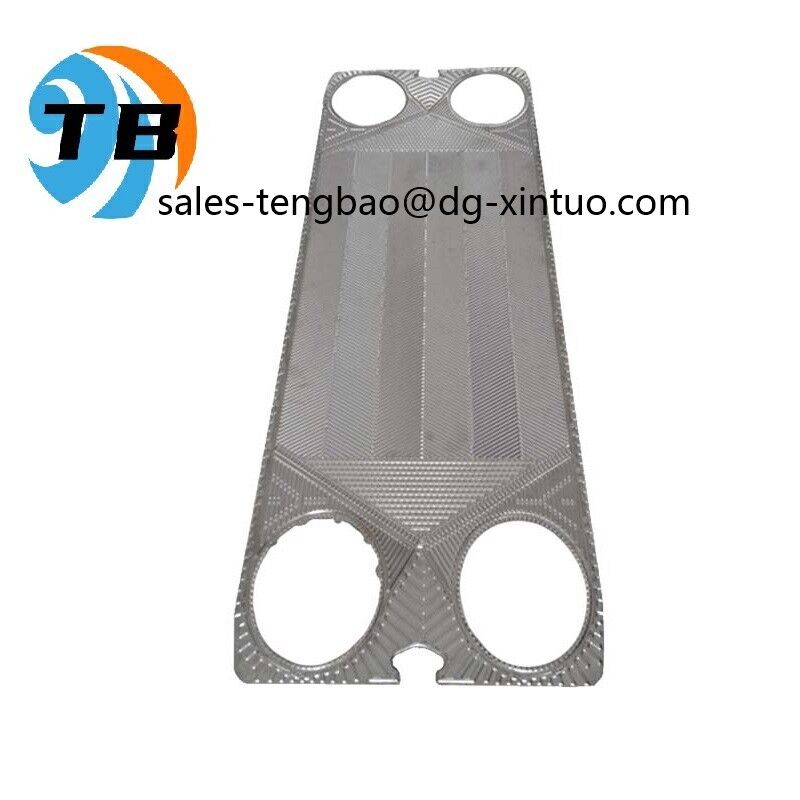

Stainless Steel APV Heat Exchanger Plate Equipped with EPDM Gasket Material Offering Superior Heat Transfer Capabilities

Product Description:

The APV Plate Heat Transfer Unit is a highly efficient and versatile solution designed to meet the demanding requirements of various industrial heat exchange applications. Constructed with precision and engineered for optimal thermal performance, this unit incorporates the APV Heat Transfer Element, which plays a crucial role in ensuring superior heat exchange efficiency. The core of this system is the APV Heat Exchange Panel, a meticulously crafted plate that facilitates effective heat transfer between fluids while maintaining a compact and space-saving design.
One of the standout features of the APV Plate Heat Transfer Unit is its plate dimensions, which measure 2544*984mm in width. This sizeable plate width allows for a substantial heat transfer surface area, ranging from 0.1 to 1.5 square meters per plate. Such a range provides flexibility in design and capacity, enabling customization according to specific process requirements. Whether the application demands a smaller surface for moderate heat transfer or a larger surface for intensive thermal exchange, the APV Heat Exchange Panel delivers consistent performance.
The plates are engineered with food-grade, non-toxic gasket glue, ensuring safety and compliance with stringent industry standards, especially in food and beverage processing environments. The use of non-toxic, food-grade gasket glue not only guarantees hygienic operation but also enhances the durability and sealing efficiency of the plates, preventing leaks and contamination. This feature makes the APV Plate Heat Transfer Unit particularly suitable for applications where product purity and safety are paramount.
Maintenance and cleaning of the APV Heat Transfer Element are simplified through the adoption of CIP (Clean-in-Place) methodology. This cleaning method allows for thorough cleaning of the plates without the need for disassembly, significantly reducing downtime and labor costs. CIP cleaning ensures that the heat exchanger maintains optimal heat transfer efficiency by preventing fouling and buildup on the plate surfaces. This feature is essential for industries requiring strict hygiene and cleanliness, such as dairy, pharmaceutical, and food processing sectors.
The weight of the APV Plate Heat Transfer Unit varies depending on the specific model and size selected. This variability allows for tailored solutions that match the operational needs and spatial constraints of different installations. Despite variations in weight, the unit remains robust and reliable, constructed from high-quality materials designed to withstand demanding industrial environments and prolonged operational cycles.
The APV Heat Exchange Panel’s design incorporates corrugated patterns that enhance turbulence within the fluids, thereby increasing heat transfer rates while minimizing pressure drops. This innovative design, combined with the plate’s large width and customizable surface area, results in an efficient and cost-effective heat exchange process. The panel’s structural integrity and gasket system ensure long-term reliability, reducing maintenance frequency and operational interruptions.
In summary, the APV Plate Heat Transfer Unit, featuring the APV Heat Transfer Element and APV Heat Exchange Panel, offers an advanced and reliable solution for heat exchange applications. Its large plate width of 2544*984mm, adjustable platesurfacearea from 0.1 to 1.5 square meters, food-grade non-toxic gasket glue, and CIP cleaning capability make it an ideal choice for industries demanding high performance, safety, and hygiene. With weight variations tailored to different models and sizes, this unit provides flexibility and durability, ensuring efficient heat transfer and long service life in diverse industrial settings.

Features:

• Product Name: APV heat exchanger plate
• Material: Stainless Steel for durability and corrosion resistance
• Plate Width: 2544*984mm, suitable for various applications
• Plate Dimensions: Varies by model to meet different thermal exchange requirements
• Plate Arrangement: Parallel design for efficient heat transfer
• Gasket Glue: Non-toxic, food grade, ensuring safety in food processing environments
• Also known as APV Thermal Exchange Component, APV Heat Transfer Plate, and APV Heat Exchange Panel

Technical Parameters:

Applications:

The TB brand APV Heat Transfer Plate, model number A145, is a high-quality heat exchanger plate manufactured in China. Designed with precision and durability in mind, this product is certified under ISO9001, CE, and UL, ensuring reliable performance and compliance with international standards. With a plate thickness of 0.5 mm and dimensions of 2544*984 mm, the APV Heat Exchanging Plate offers efficient thermal transfer capabilities. Its maximum operating pressure of 25 bar makes it suitable for a wide range of demanding industrial applications.
The APV Thermal Exchange Plate is commonly used in various industries where heat transfer efficiency is critical. It is ideal for applications in food and beverage processing, where maintaining precise temperatures is essential for product quality. The plate’s compact design and robust construction allow it to handle high-pressure conditions, making it suitable for use in dairy processing, brewing, and beverage cooling systems.
In addition to food industry applications, the APV Heat Transfer Plate is widely employed in HVAC systems for heating and cooling purposes. Its ability to efficiently exchange heat between fluids helps improve energy efficiency in commercial and residential buildings. The plate’s versatility also extends to chemical processing plants, where it facilitates temperature control in various reactions and processes, enhancing safety and productivity.
The APV Heat Exchanging Plate is perfect for occasions requiring reliable heat exchange under varying operational pressures and temperatures. Its lightweight design, which varies depending on the model and size, allows for easy installation and maintenance in compact spaces. This makes it an excellent choice for use in marine and automotive industries, where space and weight considerations are critical.
Furthermore, the APV Thermal Exchange Plate is used in renewable energy systems, such as solar thermal panels and geothermal heat pumps, to optimize heat transfer and improve overall system efficiency. Its comprehensive certifications and robust specifications make it a trusted component in both traditional and innovative heat exchange applications.
In summary, the TB brand APV Heat Transfer Plate model A145 is a versatile and dependable solution for a wide array of heat exchange scenarios. Its superior build quality, international certifications, and adaptable design ensure optimal performance in food processing, HVAC, chemical industries, renewable energy, and more.

Customization:

Our TB brand APV Thermal Exchange Plate, model number A145, offers exceptional customization services to meet diverse industrial needs. Manufactured in China and certified with ISO9001, this APV Thermal Exchange Plate ensures high quality and reliability.
The APV Heat Transfer Plate is constructed from premium stainless steel, providing durability and excellent thermal conductivity. Weight and plate dimensions vary depending on the model and size, allowing for tailored solutions that fit specific requirements.
For maintenance and hygiene, the plates support CIP (Clean-in-Place) cleaning methods, ensuring efficient and thorough cleaning without disassembly. The gasket material used is EPDM, known for its resilience and compatibility with various fluids.
Choose the TB APV Thermal Exchange Plate for customizable, high-performance heat exchanger solutions designed to optimize thermal transfer and operational efficiency.
