| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | J060 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Gasket Glue: | Non-toxic, Food Grade | Maxoperatingpressure: | Up To 25 Bar |
|---|---|---|---|
| Heattransfercoefficient: | Typically 500 - 3000 W/m²K | Heat Transfer Area: | 0.19 M2 |
| Plate Connection: | Button | Connectiontype: | Flanged Or Threaded |
| Productname: | APV Heat Exchanger Plate | Applications: | Food Processing, HVAC, Chemical Industry, Dairy |
The APV Plate Heat Exchanger is a highly efficient and reliable solution designed to meet a wide range of industrial heat transfer applications. Renowned for its robust construction and exceptional performance, the APV Plate Heat Exchanger utilizes a unique plate design that maximizes heat transfer efficiency while minimizing space requirements. This product is ideal for industries such as food processing, pharmaceuticals, chemical production, and HVAC systems, where effective thermal management is critical.

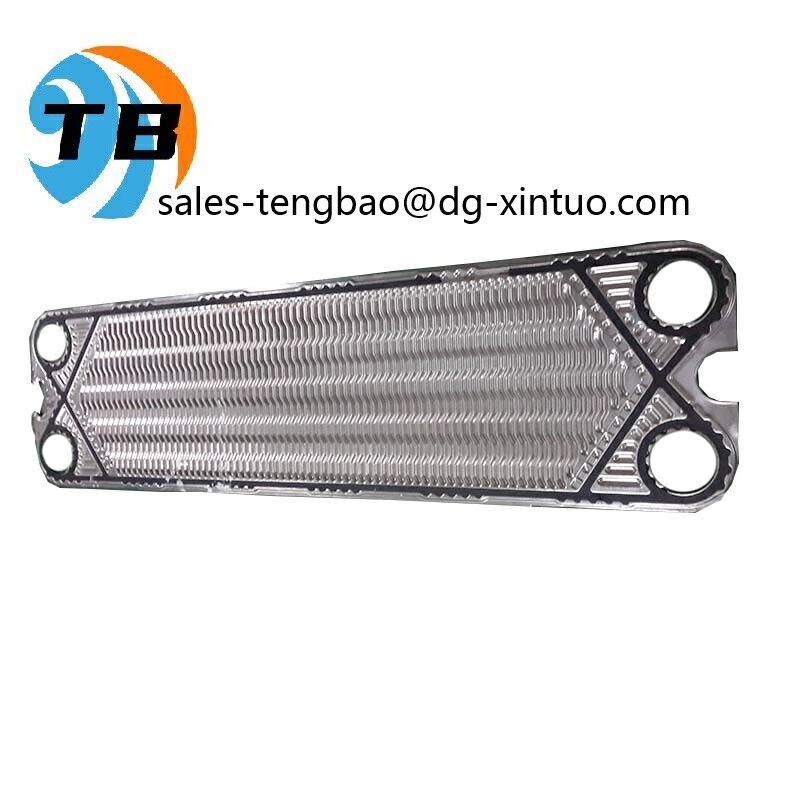

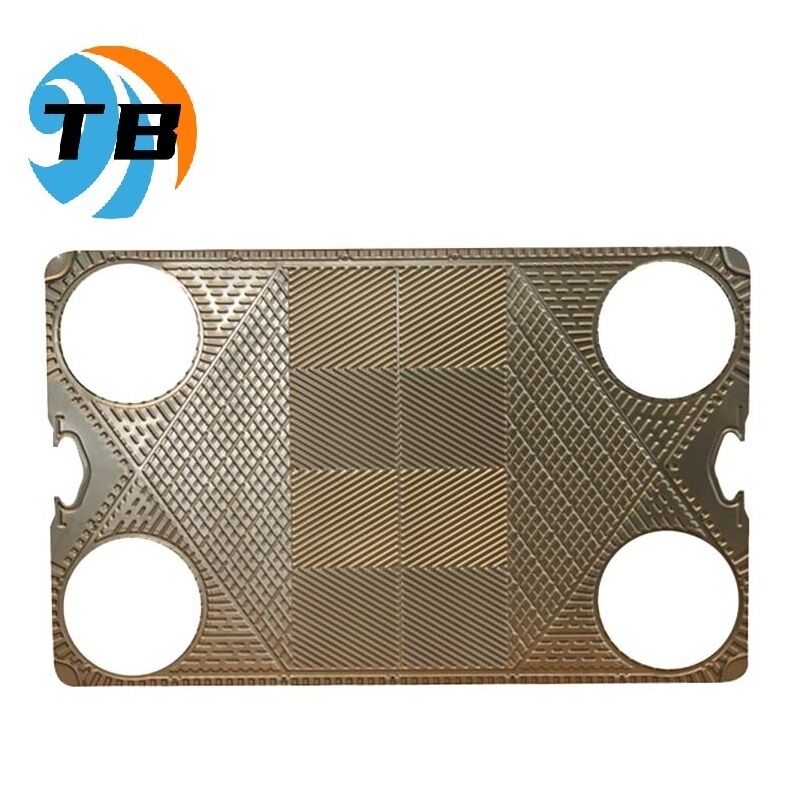

One of the standout features of the APV Plate Heat Exchanger is its plate pattern, which uses a Chevron or Herringbone pattern. This innovative design enhances turbulence within the fluids passing through the exchanger, significantly improving heat transfer rates. The Chevron pattern ensures that the fluids flow in a controlled, alternating manner, which increases the surface contact and heat exchange efficiency. This pattern not only optimizes thermal performance but also reduces fouling and pressure drop, resulting in lower operating costs and extended maintenance intervals.
The plates themselves are connected using a button connection system, providing a secure and leak-proof joint between individual plates. This connection method simplifies assembly and maintenance, allowing for quick disassembly when cleaning or plate replacement is necessary. The button connection also contributes to the overall durability and longevity of the APV Plate Heat Exchanger, ensuring reliable operation under demanding conditions.
Designed to operate under high-pressure conditions, the APV Plate Heat Exchanger can handle maximum operating pressures of up to 25 bar. This capability makes it suitable for applications that require handling of high-pressure fluids without compromising safety or performance. The pressure resistance of the unit is achieved through the careful selection of materials and precision engineering, ensuring that the heat exchanger maintains its integrity even in challenging environments.
The plates in the APV Plate Heat Exchanger vary in thickness from 0.4 mm to 1.2 mm, allowing for customization based on the specific needs of the application. Thicker plates offer enhanced durability and resistance to corrosion and mechanical stress, while thinner plates provide improved heat transfer due to reduced thermal resistance. This range of plate thicknesses enables users to balance efficiency, durability, and cost-effectiveness according to their unique requirements.
Another important specification of the APV Plate Heat Exchanger is its heat transfer area, which is 0.19 m². This surface area is optimized to provide efficient heat exchange within a compact footprint, making the unit suitable for installations where space is limited. The effective heat transfer area ensures that maximum thermal energy is transferred between the fluids, enhancing process efficiency and reducing energy consumption.
In summary, the APV Plate Heat Exchanger combines advanced plate pattern technology, robust button connections, high-pressure capability, versatile plate thickness options, and a well-optimized heat transfer area to deliver superior performance. Its Chevron or Herringbone plate pattern promotes enhanced heat transfer and reduced fouling, while the button connection system offers ease of maintenance and reliable sealing. With the ability to operate at pressures up to 25 bar and plate thicknesses ranging from 0.4 mm to 1.2 mm, this heat exchanger is adaptable to various industrial applications. The 0.19 m² heat transfer area ensures effective thermal exchange in a compact design, making the APV Plate Heat Exchanger a preferred choice for efficient and durable heat transfer solutions across multiple industries.
| Product Name | APV Heat Exchanger Plate |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| Applications | Food Processing, HVAC, Chemical Industry, Dairy |
| Plate Type | Gasketed Plate |
| Heat Transfer Area | 0.19 M² |
| Gasket Material | NBR, EPDM, Or Viton |
| Max Working Pressure | 13 Bar |
| Connection Type | Flanged Or Threaded |
| Heat Transfer Coefficient | Typically 500 - 3000 W/m²K |
| Max Operating Pressure | Up To 25 Bar |
The TB A145 model is a high-quality APV Corrugated Plate Heat Exchanger manufactured in China, designed to meet rigorous industrial standards and certified with ISO9001. This advanced heat exchanger features a button-type plate connection and a parallel plate arrangement, ensuring optimal heat transfer efficiency and reliability. With plate thickness ranging from 0.4 to 1.2 mm, the TB A145 is engineered to withstand demanding applications, operating safely at a maximum pressure of up to 13 bar and a maximum operating pressure of 25 bar.
The TB A145 APV Gasketed Plate Heat Exchanger is ideal for diverse industrial applications where efficient heat exchange is critical. It is frequently used in HVAC systems for heating and cooling purposes, where precise temperature control and energy efficiency are paramount. Additionally, it serves well in food and beverage processing plants, where hygiene and thermal performance must meet strict regulatory standards.
In chemical and pharmaceutical industries, the APV Industrial Plate Heat Exchanger TB A145 provides dependable heat transfer under corrosive and high-pressure conditions. Its gasketed design ensures easy maintenance and cleaning, reducing downtime in continuous production processes. The button plate connection coupled with the parallel plate arrangement facilitates uniform flow distribution, enhancing thermal performance and minimizing fouling.
This model is also suitable for power plants and marine applications where robust construction and operational reliability are essential. The TB A145 excels in recovering waste heat from exhaust gases or cooling lubricants and hydraulic fluids, contributing to energy savings and environmental sustainability.
Furthermore, the APV Corrugated Plate Heat Exchanger TB A145 is versatile enough to be applied in district heating and cooling networks, dairy processing, and oil and gas industries. Its ability to handle fluids at various temperatures and pressures while maintaining integrity under up to 25 bar maximum operating pressure makes it a preferred choice for engineers and plant operators worldwide.
Overall, the TB A145 APV Gasketed Plate Heat Exchanger represents a perfect blend of durability, efficiency, and adaptability, making it an indispensable component in modern industrial heat exchange scenarios.
TB's APV Heat Exchanger Plate, model number A145, is a high-quality product originating from China and certified by ISO9001. This APV Stainless Steel Plate Heat Exchanger is designed with a button plate connection and offers a maximum working pressure of 13 Bar, ensuring reliable and efficient performance.
Our APV Plate Heat Exchanger features a choice of flanged or threaded connection types to suit various installation requirements. The gasket glue used is non-toxic and food grade, making it ideal for applications demanding hygiene and safety.
As a trusted APV Gasketed Plate Heat Exchanger, the TB A145 model combines durability and functionality, making it an excellent solution for heat transfer needs in diverse industries.
