| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | J092 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Arrangement: | Parellel | Platethickness: | 0.4 - 1.2 Mm |
|---|---|---|---|
| Plate Type: | Gasketed Plate | Heattransfercoefficient: | Typically 500 - 3000 W/m²K |
| Maxoperatingpressure: | Up To 25 Bar | Gasket Glue: | Non-toxic, Food Grade |
| Heat Transfer Area: | 0.19 M2 | Applications: | Food Processing, HVAC, Chemical Industry, Dairy |

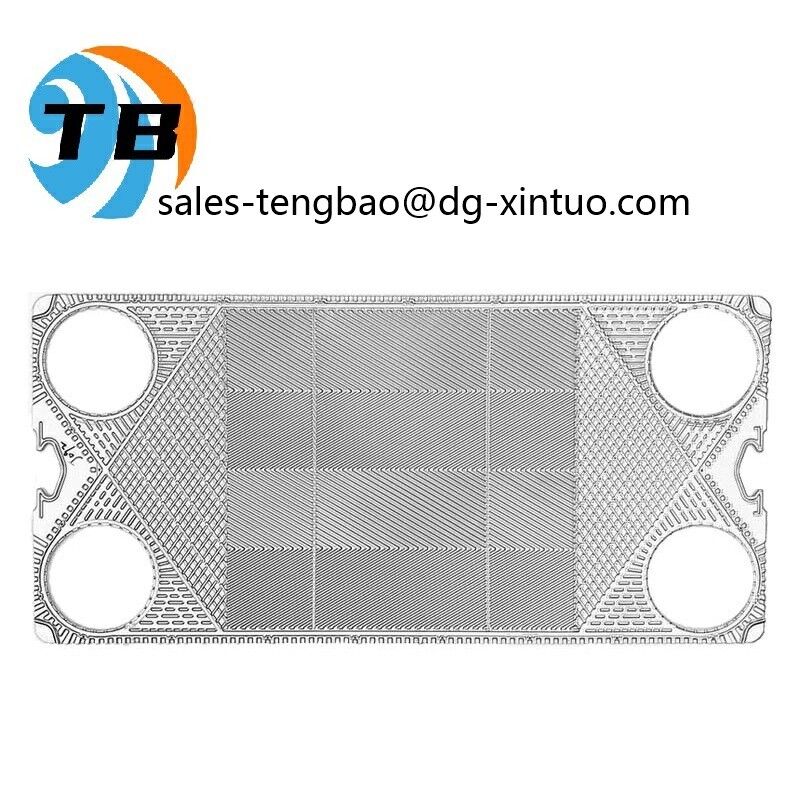

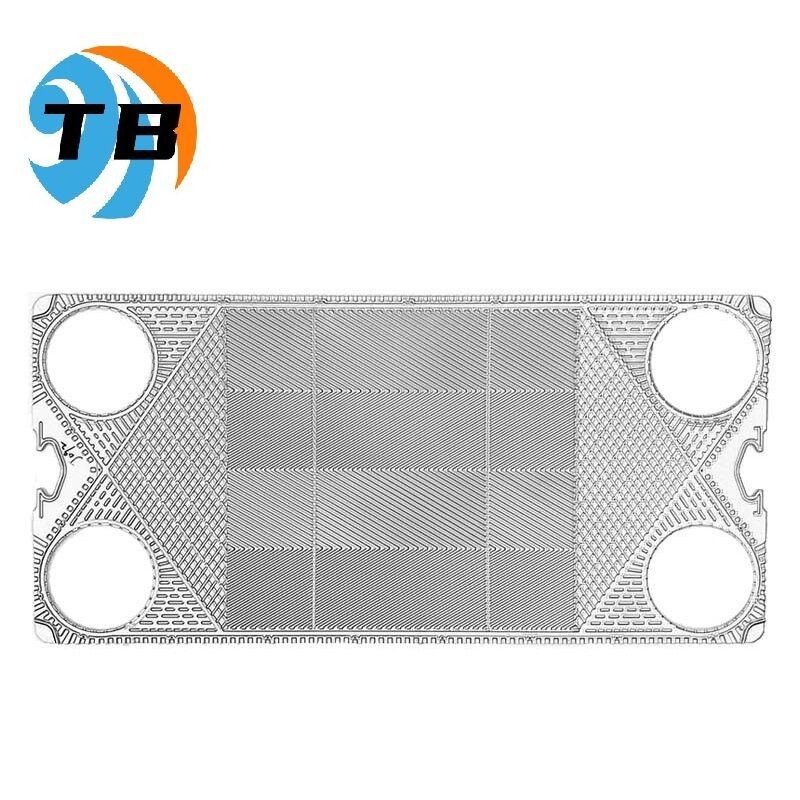

The APV Heat Exchanger Plate is a high-performance component designed to optimize heat transfer processes across various industrial applications. Known for its reliability and efficiency, the APV High Efficiency Plate Heat Exchanger is engineered to deliver exceptional thermal performance within a compact footprint. This product features a heat transfer area of 0.19 square meters, making it ideal for operations requiring efficient heat exchange in limited space environments.
One of the key advantages of the APV Plate Heat Exchanger is its impressive heat transfer coefficient, typically ranging from 500 to 3000 W/m²K. This wide range allows the exchanger to accommodate diverse process requirements, ensuring rapid and effective heat transfer between fluids. The high heat transfer coefficient is achieved through the unique corrugated design of the plates, which enhances turbulence and surface area contact, thereby maximizing thermal efficiency.
The APV Corrugated Plate Heat Exchanger is built to withstand demanding operating conditions, with a maximum operating pressure of up to 25 bar. This robust pressure rating ensures safe and reliable operation in high-pressure systems, making it suitable for applications in industries such as food and beverage processing, chemical manufacturing, HVAC, and power generation. The sturdy construction and precise engineering of the plates contribute to the durability and longevity of the heat exchanger.
Material selection is a critical aspect of the APV Heat Exchanger Plate design. The gaskets used in this product are available in several high-quality materials, including NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton. Each gasket material offers distinct chemical and temperature resistance properties, allowing customization based on the specific fluids and operating conditions involved. This flexibility ensures that the APV Plate Heat Exchanger can be tailored for optimal performance and compatibility with a variety of process fluids.
In addition to its technical specifications, the APV High Efficiency Plate Heat Exchanger is recognized for its ease of maintenance and installation. The modular design allows for straightforward plate replacement and cleaning, reducing downtime and maintenance costs. Its compact size and lightweight nature facilitate integration into existing systems or new installations without requiring extensive modifications.
The unique corrugated pattern of the APV Corrugated Plate Heat Exchanger plates not only enhances heat transfer but also contributes to the structural integrity of the unit. This design promotes efficient flow distribution and minimizes fouling, which helps maintain consistent performance over time. The combination of these features makes the APV Plate Heat Exchanger an excellent choice for industries seeking reliable and efficient heat exchange solutions.
Overall, the APV Heat Exchanger Plate stands out as a versatile and high-quality product that meets the demanding requirements of modern heat transfer processes. Its optimal heat transfer area, superior heat transfer coefficient, high operating pressure tolerance, and customizable gasket options make it a preferred solution for engineers and process designers. Whether used in food processing, chemical production, or HVAC systems, the APV High Efficiency Plate Heat Exchanger delivers outstanding performance and long-term value.
| Applications | Food Processing, HVAC, Chemical Industry, Dairy |
| Plate Connection | Button |
| Gasket Material | NBR, EPDM, Or Viton |
| Gasket Glue | Non-toxic, Food Grade |
| Connection Type | Flanged Or Threaded |
| Max Operating Pressure | Up To 25 Bar |
| Max Working Pressure | 13 Bar |
| Plate Arrangement | Parallel |
| Heat Transfer Area | 0.19 M² |
| Plate Pattern | Chevron Or Herringbone Pattern |
The APV Thermal Plate Exchanger, model A145 by the renowned brand TB, is a high-performance heat exchanger plate product originating from China. Certified with ISO9001, this product guarantees exceptional quality and reliability in various industrial applications. Designed to operate efficiently under a maximum pressure of up to 25 bar and a working pressure of 13 bar, the A145 model is ideal for demanding thermal exchange processes.
With a heat transfer area of 0.19 m² and a parallel plate arrangement, the APV Plate Heat Exchanger ensures optimal heat transfer efficiency while maintaining compactness and ease of installation. Its design supports various cleaning methods, including CIP (Clean-in-Place), making it highly suitable for industries where hygiene and maintenance are critical. This feature allows for quick and effective cleaning without the need to dismantle the unit, saving time and operational costs.
The APV Plate Heat Exchanger is widely used across numerous application occasions and scenarios. In the food and beverage industry, it is utilized for pasteurization, heating, and cooling of liquids, ensuring product safety and quality. The pharmaceutical sector benefits from its precise temperature control and hygienic design, which are essential for sensitive processes. Additionally, the chemical industry relies on this heat exchanger for efficient thermal regulation in various reactions and processes.
In HVAC systems, the APV Thermal Plate Exchanger provides reliable heat recovery and energy efficiency, contributing to sustainable building management. It also finds application in marine and power generation industries, where robust thermal management is crucial under high-pressure conditions.
Overall, the TB A145 APV Plate Heat Exchanger, with its superior build quality, ISO9001 certification, and CIP compatibility, is a versatile solution suitable for a wide range of thermal exchange scenarios. Its ability to operate at high pressures and provide effective heat transfer makes it an indispensable component in modern industrial processes.
TB proudly presents the APV Thermal Plate Exchanger, model number A145, originating from China. This APV Gasketed Plate Heat Exchanger is designed with a button plate connection, offering flexible connection types including flanged or threaded options to suit various installation requirements.
The plate pattern of the APV Thermal Plate Exchanger can be customized to either a chevron or herringbone pattern, arranged in a parallel configuration to maximize heat transfer efficiency. Certified with ISO9001, this product guarantees quality and reliability.
With a maximum working pressure of 13 bar, the TB APV Thermal Plate Exchanger ensures robust performance for demanding industrial applications, making it a versatile and dependable choice for your heat exchange needs.
