| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | M107 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Cleaningmethod: | CIP (Clean-in-Place) Compatible | Productname: | APV Heat Exchanger Plate |
|---|---|---|---|
| Heattransfercoefficient: | Typically 500 - 3000 W/m²K | Connectiontype: | Flanged Or Threaded |
| Plate Arrangement: | Parellel | Plate Connection: | Button |
| Platethickness: | 0.4 - 1.2 Mm | Platepattern: | Chevron Or Herringbone Pattern |
The APV High Efficiency Plate Heat Exchanger is a versatile and robust solution designed to meet the demanding requirements of various industries, including food processing, HVAC, chemical industry, and dairy applications. Renowned for its exceptional performance and compact design, this heat exchanger ensures efficient thermal transfer while maintaining a small footprint, making it an ideal choice for operations where space and energy efficiency are critical.
One of the standout features of the APV High Efficiency Plate Heat Exchanger is its innovative plate design, which maximizes the heat transfer area within a compact frame. With a heat transfer area of 0.19 m², it offers an optimized surface for effective thermal exchange between fluids. This contributes to enhanced heat transfer coefficients, typically ranging from 500 to 3000 W/m²K, ensuring rapid and efficient heat exchange processes. Such efficiency translates into lower energy consumption and improved overall system performance, essential for industries focused on sustainability and cost savings.
The APV Brazed Plate Heat Exchanger variant further elevates the product line by incorporating brazed joints between the plates, eliminating the need for gaskets. This design provides superior pressure resistance and reliability, allowing it to operate at maximum pressures of up to 25 bar. The brazed construction also facilitates higher temperature tolerance and enhanced durability, making it well-suited for demanding environments found in chemical processing and HVAC systems. Its compactness and robustness make it particularly advantageous in applications where maintenance accessibility is limited and long-term reliability is paramount.
In addition to brazed models, the APV Compact Plate Heat Exchanger offers flexibility with its connection types, available in both flanged and threaded options. This adaptability ensures seamless integration into existing piping systems and ease of installation across various industrial setups. The flanged connections provide secure and leak-proof joints ideal for high-pressure applications, while the threaded connections offer quick assembly and disassembly, reducing downtime during maintenance. This versatility makes the APV Compact Plate Heat Exchanger a preferred choice in the dairy and food processing sectors, where hygiene and frequent cleaning are critical.
Applications of the APV High Efficiency Plate Heat Exchanger span a broad spectrum of industries. In food processing, it facilitates pasteurization, sterilization, and cooling processes by providing consistent and hygienic heat exchange. The dairy industry benefits from its ability to maintain product integrity while achieving precise temperature control. In HVAC systems, it enhances energy efficiency by recovering heat and reducing operational costs. Meanwhile, the chemical industry leverages its high pressure and temperature capabilities to handle aggressive fluids and complex thermal management tasks.
Overall, the APV High Efficiency Plate Heat Exchanger series, including the brazed and compact variants, exemplifies advanced engineering tailored to meet the rigorous demands of modern industrial applications. Its combination of high heat transfer efficiency, robust construction, flexible connection types, and compact design delivers superior performance and reliability. Whether used in food processing, HVAC, chemical, or dairy applications, these heat exchangers provide an effective solution to optimize thermal processes, reduce energy consumption, and enhance operational efficiency.

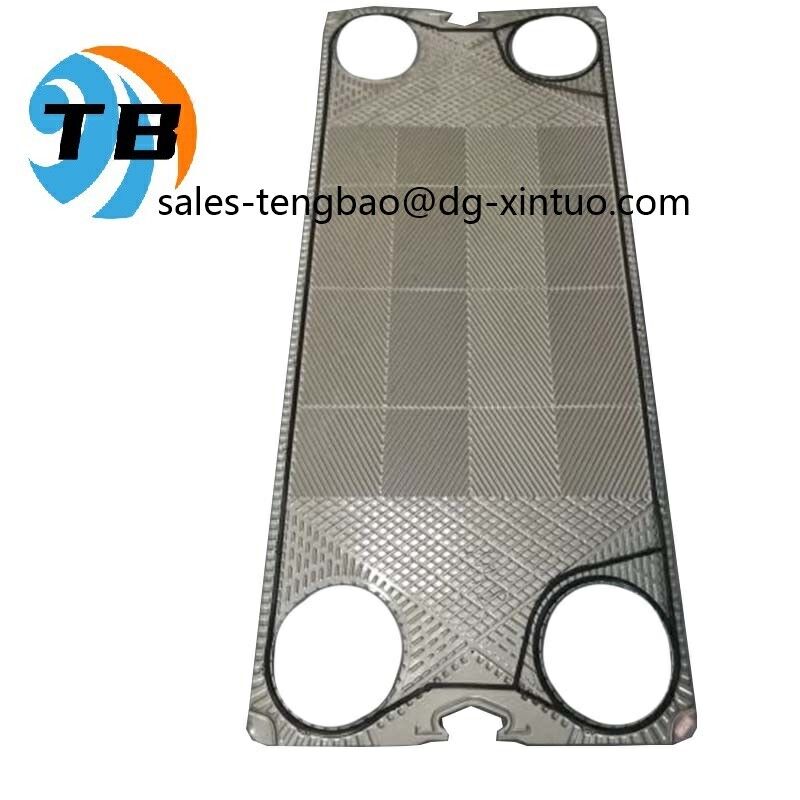

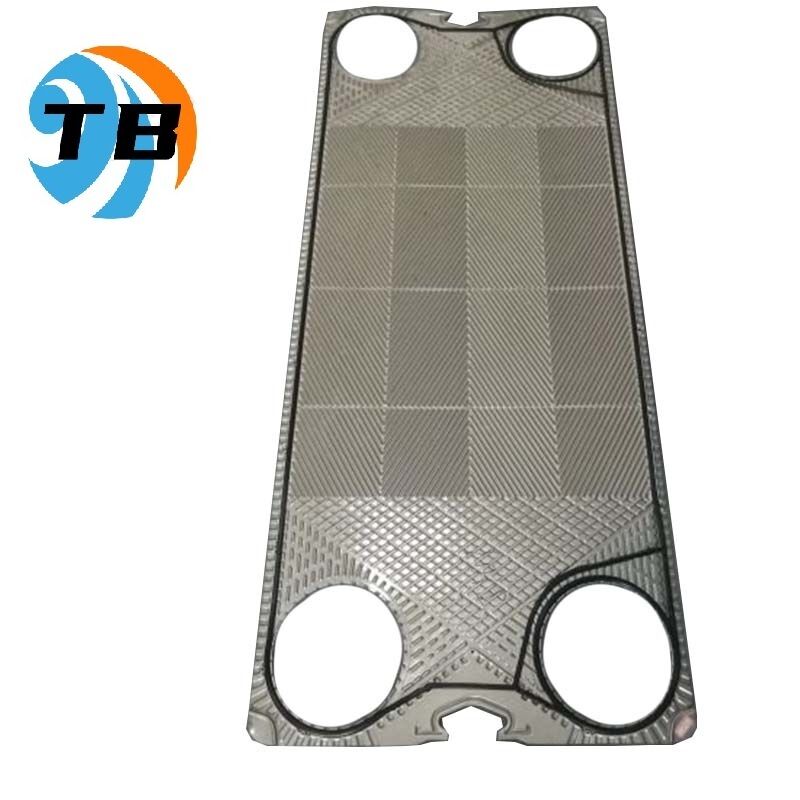

| Product Name | APV Heat Exchanger Plate |
| Heat Transfer Coefficient | Typically 500 - 3000 W/m²K |
| Heat Transfer Area | 0.19 M² |
| Plate Type | Gasketed Plate |
| Max Working Pressure | 13 Bar |
| Applications | Food Processing, HVAC, Chemical Industry, Dairy |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| Connection Type | Flanged Or Threaded |
| Plate Pattern | Chevron Or Herringbone Pattern |
| Plate Arrangement | Parallel |
The APV Gasketed Plate Heat Exchanger, model A145 from the reputable TB brand, is a highly efficient and versatile solution designed for a wide range of industrial applications. Originating from China and certified with ISO9001, this heat exchanger guarantees quality and reliability in every unit. Its exceptional heat transfer coefficient, typically ranging from 500 to 3000 W/m²K, ensures optimal thermal performance, making it ideal for processes that demand precise temperature control and energy efficiency.
One of the most common application occasions for the APV Industrial Plate Heat Exchanger is in the chemical and pharmaceutical industries, where maintaining strict temperature conditions is crucial for product quality and safety. The A145 model’s ability to handle a maximum working pressure of 13 Bar allows it to operate effectively in demanding environments. Additionally, the flanged or threaded connection types offer flexibility in installation, accommodating different piping systems and facilitating seamless integration into existing setups.
Food and beverage processing is another key scenario where the APV Plate Heat Exchanger excels. Its CIP (Clean-in-Place) compatible cleaning method ensures that hygiene standards are maintained without the need for disassembly, reducing downtime and operational costs. The Chevron or Herringbone plate patterns enhance turbulence and heat transfer efficiency, which is particularly beneficial in pasteurization, brewing, and dairy processes, where temperature uniformity is essential.
In HVAC systems, the APV Gasketed Plate Heat Exchanger A145 provides reliable heat recovery and energy savings by efficiently transferring heat between fluids. This capability supports sustainable building management and reduces overall energy consumption. Furthermore, its compact design and robust construction make it suitable for marine applications and power generation plants, where space constraints and heavy-duty performance are critical factors.
Overall, the TB brand’s APV Industrial Plate Heat Exchanger A145 is a comprehensive solution tailored for various industrial heat transfer needs. Its combination of high heat transfer efficiency, flexible connection options, and easy maintenance through CIP compatibility makes it an excellent choice for engineers and plant managers aiming to optimize thermal processes across multiple sectors.
TB brand offers the APV Stainless Steel Plate Heat Exchanger, model number A145, designed and manufactured in China with ISO9001 certification, ensuring high quality and reliability.
This APV High Efficiency Plate Heat Exchanger features a parallel plate arrangement and can operate under a maximum working pressure of 13 Bar, with a maximum operating pressure of up to 25 Bar, making it suitable for various demanding applications.
The heat exchanger plates come with gasket materials available in NBR, EPDM, or Viton, providing flexibility to meet different chemical and temperature requirements.
Additionally, the plate pattern options include Chevron or Herringbone patterns, which enhance heat transfer efficiency and durability.
TB’s APV Brazed Plate Heat Exchanger model A145 combines advanced design with robust materials to deliver superior performance and longevity in heat exchange processes.
