| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | M092 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Cleaningmethod: | CIP (Clean-in-Place) Compatible | Platepattern: | Chevron Or Herringbone Pattern |
|---|---|---|---|
| Plate Connection: | Button | Platethickness: | 0.4 - 1.2 Mm |
| Plate Type: | Gasketed Plate | Connectiontype: | Flanged Or Threaded |
| Maxoperatingpressure: | Up To 25 Bar | Applications: | Food Processing, HVAC, Chemical Industry, Dairy |

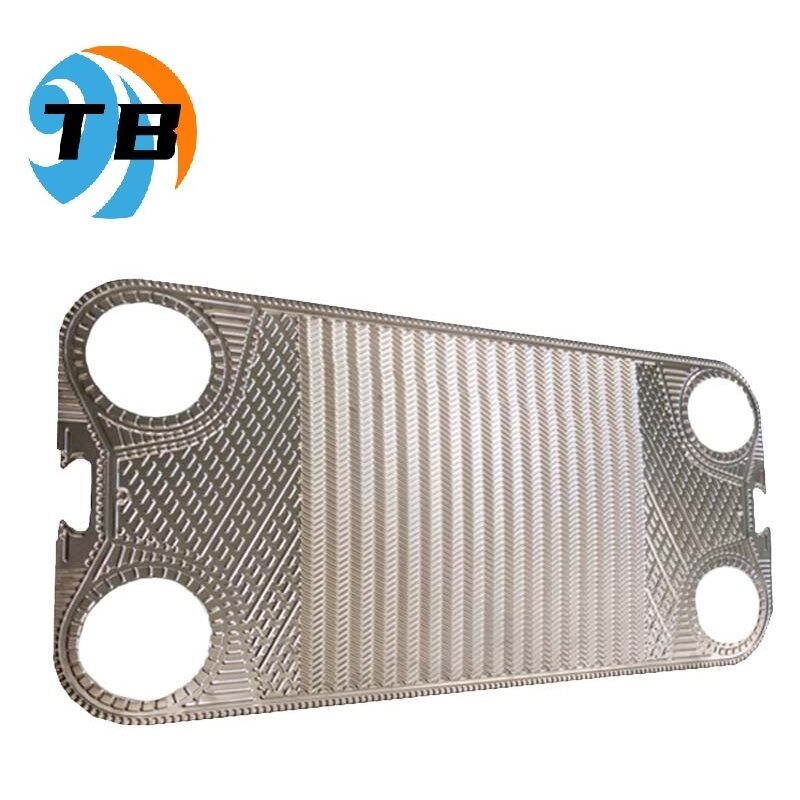

The APV Plate Type Heat Exchanger is a highly efficient and reliable solution designed for a wide range of industrial heat transfer applications. Known for its compact design and superior thermal performance, this heat exchanger utilizes a plate pattern that is either Chevron or Herringbone, optimizing the turbulence of fluid flow and enhancing heat transfer efficiency. The Chevron or Herringbone pattern on the plates ensures maximum heat exchange by creating a high level of turbulence, which significantly improves the heat transfer coefficient and overall performance of the unit.
Each plate in the APV Brazed Plate Heat Exchanger features a heat transfer area of 0.19 square meters, allowing for a compact footprint while maintaining excellent thermal efficiency. This surface area provides an ideal balance between size and heat transfer capability, making it suitable for applications where space is limited but high performance is critical. The carefully engineered plate design ensures that the heat transfer process is optimized, allowing for effective heat exchange between fluids under various operating conditions.
The heat transfer coefficient for the APV Brazed Plate Heat Exchanger typically ranges from 500 to 3000 W/m²K. This wide range reflects the unit’s adaptability to different fluids, flow rates, and temperature variations. The high heat transfer coefficient is a direct result of the plate pattern and the close proximity of the plates, which promote efficient heat exchange by minimizing thermal resistance. This makes the APV Plate Type Heat Exchanger an excellent choice for industries requiring rapid and reliable heat transfer.
Connection options for the APV Brazed Plate Heat Exchanger are versatile, with flanged or threaded types available to suit various installation requirements. Flanged connections offer robust mechanical strength and ease of maintenance, making them ideal for heavy-duty industrial environments. Threaded connections, on the other hand, provide a compact and cost-effective solution for smaller systems or where installation space is constrained. This flexibility in connection types ensures that the heat exchanger can be seamlessly integrated into existing piping systems with minimal modifications.
The plate arrangement within the APV Plate Type Heat Exchanger is parallel, which optimizes the flow paths of the fluids involved in the heat exchange process. This parallel configuration allows for efficient distribution of fluids across the plates, reducing pressure drops and ensuring uniform heat transfer. The parallel arrangement also simplifies maintenance and cleaning, as individual plates can be accessed more easily compared to other configurations.
Overall, the APV Brazed Plate Heat Exchanger stands out as a robust and efficient choice for heat transfer applications requiring reliable performance and compact design. Its Chevron or Herringbone plate pattern, combined with a heat transfer area of 0.19 m² and a high heat transfer coefficient range of 500 to 3000 W/m²K, delivers exceptional thermal efficiency. The availability of flanged or threaded connection types further enhances its adaptability to diverse industrial settings. Additionally, the parallel plate arrangement ensures optimized fluid flow and ease of maintenance.
In summary, the APV Plate Type Heat Exchanger offers a perfect blend of advanced engineering and practical design features. Whether utilized in HVAC systems, chemical processing, food and beverage production, or any other industrial heat transfer application, this heat exchanger provides outstanding efficiency, reliability, and versatility. Its combination of Chevron or Herringbone plate patterns, compact heat transfer area, high heat transfer coefficient, flexible connection options, and parallel plate arrangement makes it a superior choice for engineers and plant operators seeking dependable thermal solutions.
| Gasket Material | NBR, EPDM, Or Viton |
| Heat Transfer Coefficient | Typically 500 - 3000 W/m²K |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| Heat Transfer Area | 0.19 M² |
| Max Operating Pressure | Up To 25 Bar |
| Plate Pattern | Chevron Or Herringbone Pattern |
| Plate Arrangement | Parallel |
| Gasket Glue | Non-toxic, Food Grade |
| Plate Thickness | 0.4 - 1.2 mm |
| Applications | Food Processing, HVAC, Chemical Industry, Dairy |
The APV Heat Exchanger Plate, model A145, manufactured by TB in China, is a highly reliable and efficient component widely used in various industrial applications. Certified with ISO9001, this product guarantees quality and performance. The plate thickness ranges from 0.4 to 1.2 mm, providing excellent durability and heat transfer capabilities. With a maximum operating pressure of up to 25 bar and a maximum working pressure of 13 bar, it is designed to withstand demanding operating conditions. The connection type options include flanged or threaded, offering flexible installation solutions tailored to different system requirements.
The APV Stainless Steel Plate Heat Exchanger is particularly favored in industries that require compact and efficient heat transfer solutions. Its robust construction and superior corrosion resistance make it ideal for applications in the chemical, pharmaceutical, food and beverage, and HVAC sectors. The compact design of the APV Compact Plate Heat Exchanger allows for space-saving installations, making it perfect for facilities where minimizing footprint is critical without compromising performance.
In food processing plants, the APV Heat Exchanger Plate ensures precise temperature control during pasteurization, sterilization, and cooling processes, maintaining product quality and safety. In HVAC systems, the APV Compact Plate Heat Exchanger provides efficient heat recovery, reducing energy consumption and operational costs. Additionally, its ability to operate safely under high pressure makes it suitable for use in chemical processing plants where aggressive fluids and high pressures are common.
Maintenance and cleaning are also simplified due to the accessible flanged or threaded connections, which facilitate easy disassembly and inspection. This makes the APV Stainless Steel Plate Heat Exchanger an excellent choice for applications requiring frequent cleaning, such as dairy and beverage production lines. The versatility and reliability of the APV Compact Plate Heat Exchanger make it a preferred solution for engineers and designers looking to implement efficient and durable heat exchange systems.
Overall, the TB APV Heat Exchanger Plate model A145 is an essential component that supports a wide range of heat exchange scenarios, from industrial manufacturing to environmental control systems. Its combination of high-quality materials, robust design, and certification ensures it meets the rigorous demands of modern industrial applications while delivering outstanding performance and longevity.
TB brand presents the A145 model APV Industrial Plate Heat Exchanger, expertly crafted in China to meet the highest standards of quality and performance. Certified with ISO9001, this APV Gasketed Plate Heat Exchanger ensures reliable and efficient heat transfer with a heat transfer area of 0.19 M2.
The A145 model features a Chevron or Herringbone plate pattern, designed to maximize heat exchange efficiency and durability. Its gasket material options include NBR, EPDM, or Viton, paired with non-toxic, food-grade gasket glue, making it suitable for a variety of industrial and food processing applications.
Cleaning is made easy and hygienic with CIP (Clean-in-Place) compatibility, allowing for efficient maintenance without disassembly. The TB A145 APV Industrial Plate Heat Exchanger is the perfect solution for industries requiring reliable, customizable heat exchange performance with superior sealing and easy cleaning capabilities.
