| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | K34 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Productname: | APV Heat Exchanger Plate | Connectiontype: | Flanged Or Threaded |
|---|---|---|---|
| Applications: | Food Processing, HVAC, Chemical Industry, Dairy | Gasketmaterial: | NBR, EPDM, Or Viton |
| Plate Type: | Gasketed Plate | Platethickness: | 0.4 - 1.2 Mm |
| Heat Transfer Area: | 0.19 M2 | Platepattern: | Chevron Or Herringbone Pattern |

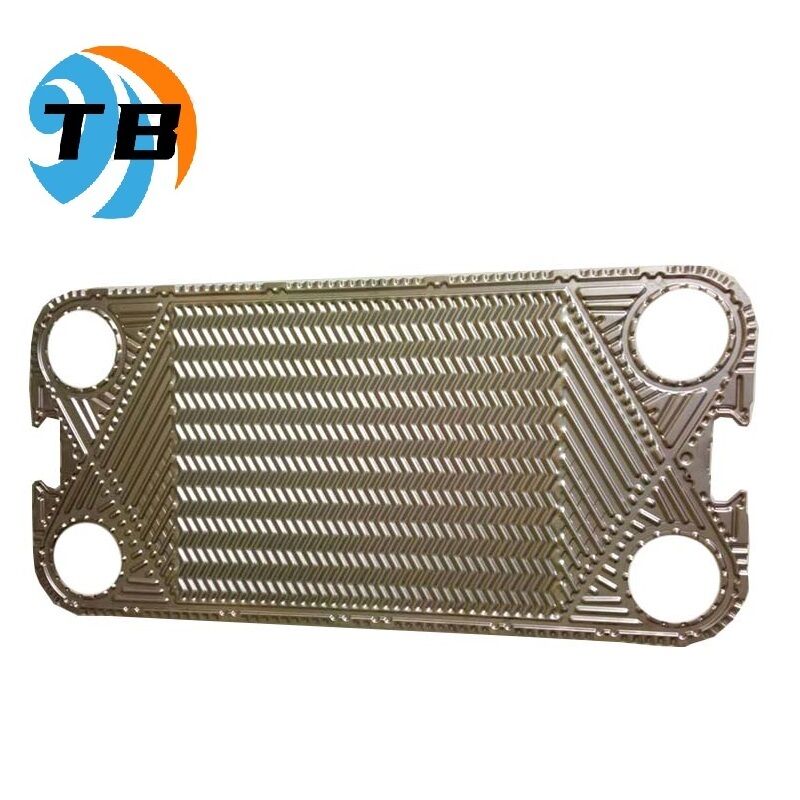

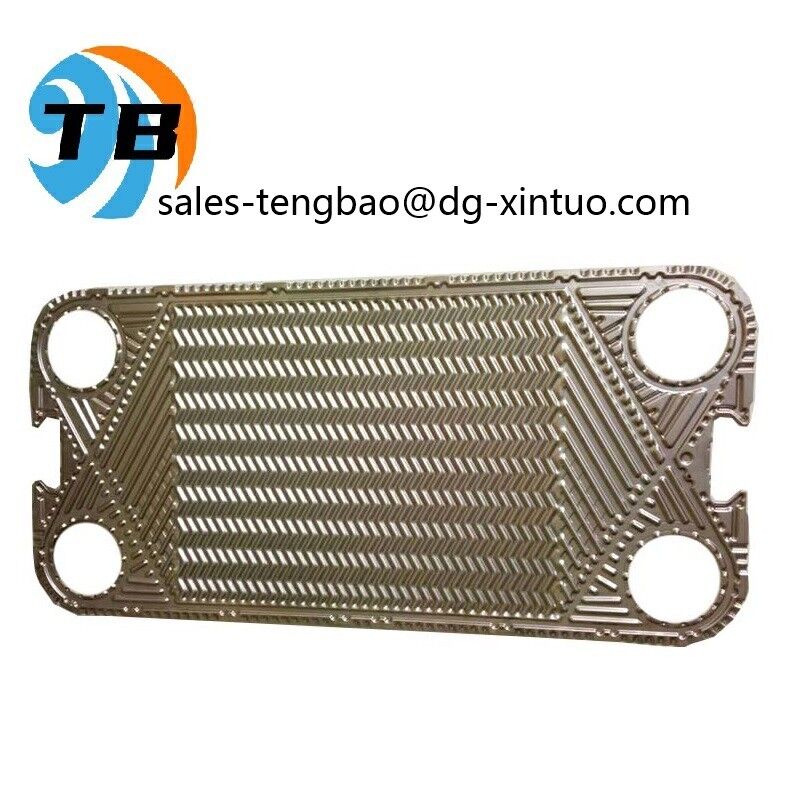

The APV Heat Exchanger Plate is a high-performance solution designed to meet the rigorous demands of various industrial applications, including food processing, HVAC systems, chemical industries, and dairy production. Known for its exceptional efficiency and reliability, the APV High Efficiency Plate Heat Exchanger offers superior heat transfer capabilities through its innovative design and robust construction.
One of the defining features of the APV Heat Exchanger Plate is its plate thickness, which ranges from 0.4 mm to 1.2 mm. This range allows for customization depending on the specific requirements of the application, balancing durability and thermal efficiency. The carefully engineered plate thickness ensures optimal heat exchange while maintaining structural integrity under varying operating conditions.
The APV Corrugated Plate Heat Exchanger design incorporates a unique corrugation pattern on each plate, which significantly enhances turbulence in the fluid flow. This turbulence increases the heat transfer coefficient, making the APV Plate Type Heat Exchanger highly efficient in transferring heat between two fluids. The parallel plate arrangement further optimizes the flow paths, ensuring that both hot and cold fluids pass through their respective channels without mixing, thereby maximizing thermal performance and operational safety.
Gasket material selection is a critical aspect of the APV Heat Exchanger Plate, as it directly impacts sealing performance and chemical resistance. The product offers gasket options in NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), or Viton, each chosen to suit different operating environments and fluid compatibilities. NBR gaskets are ideal for applications involving oils and fuels, EPDM offers excellent resistance to heat, water, and steam, while Viton is suitable for aggressive chemicals and high-temperature applications. This versatility in gasket materials ensures that the APV Heat Exchanger Plate can be reliably used across a wide spectrum of industries.
In food processing and dairy applications, the APV Heat Exchanger Plate excels by providing hygienic design features that comply with stringent sanitary standards. The plate’s surface finish and gasket compatibility prevent contamination, making it suitable for pasteurization, heating, and cooling processes. Its ease of cleaning and maintenance further enhances its suitability for these industries, where hygiene is paramount.
In HVAC systems, the APV Plate Type Heat Exchanger contributes to energy efficiency by effectively recovering heat and reducing overall energy consumption. Its compact design and modularity allow for easy integration into existing systems, providing a cost-effective solution for both heating and cooling needs.
Within the chemical industry, the APV High Efficiency Plate Heat Exchanger’s resistance to corrosion and chemical attack, combined with its flexible gasket options, makes it an ideal choice for handling aggressive fluids and maintaining reliable operation under demanding conditions.
Overall, the APV Heat Exchanger Plate is a versatile, reliable, and high-efficiency component that serves a broad range of applications. Its combination of optimized plate thickness, parallel plate arrangement, and choice of gasket materials ensures outstanding performance and durability. The APV Corrugated Plate Heat Exchanger stands out as a leading solution in plate heat exchanger technology, delivering consistent and efficient heat transfer for industries that demand the best in quality and performance.
| Product Name | APV Heat Exchanger Plate |
| Max Operating Pressure | Up To 25 Bar |
| Max Working Pressure | 13 Bar |
| Gasket Material | NBR, EPDM, Or Viton |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| Heat Transfer Area | 0.19 M2 |
| Plate Connection | Button |
| Plate Arrangement | Parellel |
| Plate Type | Gasketed Plate |
| Plate Thickness | 0.4 - 1.2 Mm |
The APV Heat Exchanger Plate, model number A145, manufactured by TB in China, is a highly efficient and reliable component designed for a variety of industrial applications. Certified with ISO9001, this APV Industrial Plate Heat Exchanger ensures top quality and consistent performance under demanding conditions. With a maximum working pressure of 13 Bar, this gasketed plate heat exchanger is engineered to handle high-pressure environments safely and effectively.
The APV Gasketed Plate Heat Exchanger features a Chevron or Herringbone plate pattern, which maximizes heat transfer efficiency by creating turbulent flow and increasing the surface area contact between fluids. Each plate has a heat transfer area of 0.19 m², making it suitable for medium to large-scale heat exchange tasks across various industries. Its stainless steel construction guarantees durability, corrosion resistance, and ease of maintenance, which is essential for industries requiring hygiene and longevity.
This APV Stainless Steel Plate Heat Exchanger is widely used in food and beverage processing, chemical manufacturing, HVAC systems, pharmaceutical production, and marine engineering. In food and beverage industries, it efficiently transfers heat in pasteurization, cooling, and heating processes while maintaining sanitary conditions due to its corrosion-resistant stainless steel plates. Chemical plants utilize the APV Industrial Plate Heat Exchanger for precise temperature control in reactions and fluid processing, ensuring optimal product quality.
In HVAC and refrigeration systems, the APV Gasketed Plate Heat Exchanger helps to improve energy efficiency by recovering heat from exhaust streams or by cooling circulating fluids. The gasketed design simplifies maintenance and cleaning, which is particularly beneficial in pharmaceutical applications where contamination control is critical. Additionally, this heat exchanger is suitable for marine and power generation sectors, where reliable and compact heat exchange solutions are required to maintain operational efficiency.
Overall, the TB APV Heat Exchanger Plate A145 combines advanced engineering, robust materials, and certified quality standards to deliver exceptional performance in various heat transfer scenarios. Its versatile design and high-pressure tolerance make it an indispensable component for industries seeking reliable, efficient, and hygienic heat exchange solutions.
TB brand offers customizable APV Compact Plate Heat Exchanger products, model number A145, proudly made in China. Our APV Corrugated Plate Heat Exchanger is designed to meet diverse industrial needs with certification ISO9001 ensuring quality and reliability.
The APV Plate Type Heat Exchanger features a maximum working pressure of 13 Bar, making it suitable for high-pressure applications. The gasket glue used is non-toxic and food grade, ensuring safety for food and beverage processing.
For maintenance convenience, the heat exchanger is compatible with CIP (Clean-in-Place) cleaning methods, facilitating efficient and thorough cleaning without disassembly. The heat transfer coefficient typically ranges from 500 to 3000 W/m²K, providing excellent thermal performance.
Customers can choose gasket materials from NBR, EPDM, or Viton according to their specific operational requirements, ensuring optimal durability and chemical resistance. TB's APV heat exchanger plates are engineered for superior performance and customizable to fit your unique process demands.
