| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | K71 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Arrangement: | Parellel | Heat Transfer Area: | 0.19 M2 |
|---|---|---|---|
| Cleaningmethod: | CIP (Clean-in-Place) Compatible | Gasketmaterial: | NBR, EPDM, Or Viton |
| Max Working Pressure: | 13 Bar | Maxoperatingpressure: | Up To 25 Bar |
| Plate Type: | Gasketed Plate | Plate Connection: | Button |

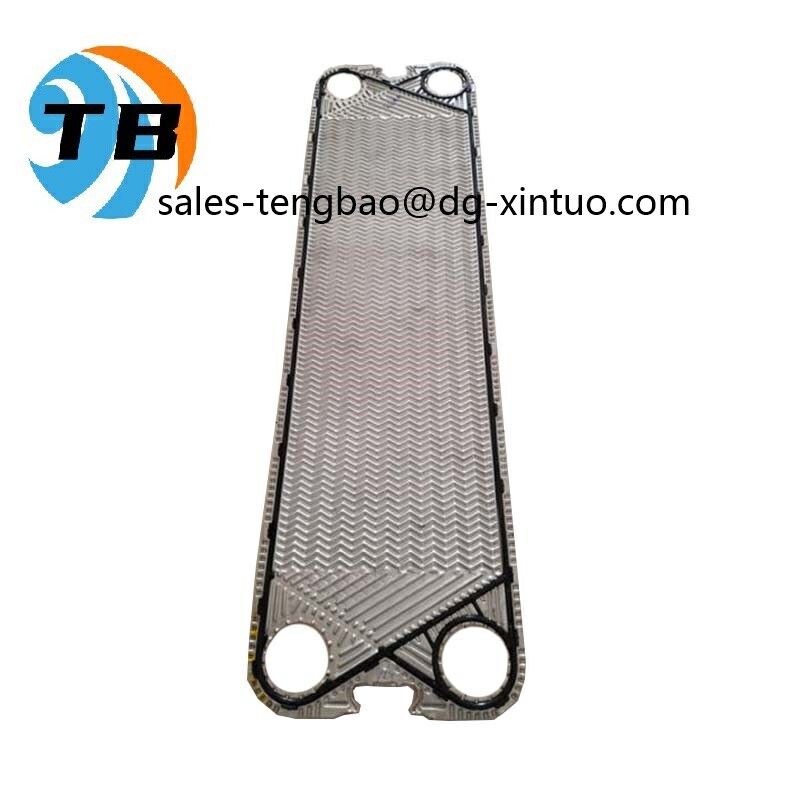

The APV Heat Exchanger Plate is a highly efficient and versatile component designed to optimize heat transfer processes in various industrial applications. Known for its robust construction and superior performance, the APV Heat Exchanger Plate is an essential part of the APV High Efficiency Plate Heat Exchanger series, which provides exceptional thermal management solutions for industries ranging from food and beverage to chemical processing and HVAC systems.
One of the standout features of the APV Heat Exchanger Plate is its advanced plate pattern design. Available in both Chevron and Herringbone patterns, these plates are engineered to maximize turbulence and surface area, thereby significantly enhancing the heat transfer coefficient. Typically, the heat transfer coefficient for these plates ranges from 500 to 3000 W/m²K, ensuring efficient thermal exchange and optimal energy utilization. This high heat transfer capability makes the APV Heat Exchanger Plate a preferred choice for applications requiring rapid and reliable temperature control.
The connection type of the APV Heat Exchanger Plate is designed with flexibility and ease of installation in mind. Customers can choose between flanged or threaded connections depending on their specific system requirements and piping configurations. This adaptability ensures that the APV Heat Exchanger Plate can be seamlessly integrated into existing setups or new installations without compromising performance or reliability. Furthermore, the plate connection is of the ‘Button’ type, which provides secure and leak-proof sealing, contributing to the overall durability and efficiency of the heat exchanger unit.
Part of the renowned APV Compact Plate Heat Exchanger line, the APV Heat Exchanger Plate boasts a compact design that allows for space-saving installations without sacrificing heat transfer efficiency. The compact nature of these plates makes them ideal for facilities where space constraints are a concern, while still delivering high performance. This compact design, combined with the superior plate patterns and connection options, makes the APV Thermal Plate Exchanger a versatile and reliable solution for a wide range of thermal management challenges.
The APV Heat Exchanger Plate also emphasizes durability and longevity. Manufactured from high-quality materials, these plates are designed to withstand harsh operating conditions, including high pressures and corrosive environments. This resilience ensures that the plates maintain their performance over extended periods, reducing maintenance costs and downtime. The robust construction paired with precise engineering guarantees that each APV Heat Exchanger Plate meets stringent industry standards and provides consistent, reliable service.
In summary, the APV Heat Exchanger Plate is a critical component within the APV High Efficiency Plate Heat Exchanger product family, offering exceptional heat transfer performance through its Chevron or Herringbone plate patterns and heat transfer coefficients ranging from 500 to 3000 W/m²K. Its flexible connection options, including flanged or threaded types with a secure button plate connection, make it adaptable to various industrial setups. As part of the APV Compact Plate Heat Exchanger and APV Thermal Plate Exchanger lines, this product combines compact design, high efficiency, and durability, making it an ideal choice for industries seeking reliable and effective thermal management solutions.
| Product Name | APV Heat Exchanger Plate |
| Heat Transfer Area | 0.19 M² |
| Plate Connection | Button |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| Connection Type | Flanged Or Threaded |
| Plate Thickness | 0.4 - 1.2 mm |
| Max Working Pressure | 13 Bar |
| Max Operating Pressure | Up To 25 Bar |
| Gasket Glue | Non-toxic, Food Grade |
| Applications | Food Processing, HVAC, Chemical Industry, Dairy |
The TB A145 APV Stainless Steel Plate Heat Exchanger is an advanced gasketed plate heat exchanger designed and manufactured in China, adhering to stringent ISO9001 certification standards. Its robust construction features plates with thickness ranging from 0.4 to 1.2 mm, ensuring durability and optimal thermal performance across various applications. The non-toxic, food-grade gasket glue enhances safety and reliability, making it especially suitable for industries demanding hygienic processing environments.
This APV Compact Plate Heat Exchanger model A145 is widely used in diverse fields such as food processing, HVAC systems, the chemical industry, and dairy production. In food processing, it facilitates efficient heat transfer for pasteurization, sterilization, and temperature control of liquid products, ensuring product quality and safety. Its clean-in-place (CIP) compatibility simplifies maintenance and cleaning, which is critical in maintaining sanitary conditions without dismantling the unit.
In HVAC applications, the TB A145 excels at heat recovery and temperature regulation within heating and cooling systems, improving energy efficiency and reducing operational costs. The gasketed plate design allows for easy gasket replacement and maintenance, extending the exchanger’s lifespan and adaptability to different process requirements.
The chemical industry benefits from the APV Brazed Plate Heat Exchanger’s compact size and high efficiency, which are essential for precise temperature control in chemical reactions and processing. The non-toxic, food-grade gaskets also ensure safe handling of sensitive substances, minimizing contamination risks. Additionally, the plate thickness range provides flexibility to accommodate varying pressures and temperatures encountered in chemical processes.
In the dairy sector, the TB A145 heat exchanger ensures gentle yet effective heat transfer for milk pasteurization and other dairy processing needs. The CIP cleaning method compatibility is particularly advantageous here, as it allows for thorough sanitation without interrupting production schedules. This minimizes downtime and enhances overall productivity.
Overall, the TB brand’s APV Stainless Steel Plate Heat Exchanger model A145 is a versatile and reliable solution tailored for industries requiring efficient, hygienic, and easy-to-maintain heat exchange equipment. Its combination of quality construction, food-grade materials, and flexible application scenarios makes it a trusted choice worldwide.
TB brand offers the APV Brazed Plate Heat Exchanger, model number A145, manufactured in China with ISO9001 certification. This APV Plate Heat Exchanger features gasketed plates with thickness ranging from 0.4 to 1.2 mm, providing a heat transfer area of 0.19 m². It is designed to operate at a maximum pressure of up to 25 bar, ensuring reliable performance in various applications.
The APV Thermal Plate Exchanger utilizes high-quality gasket materials such as NBR, EPDM, or Viton, allowing customization based on specific operational requirements. Our product customization services ensure that each heat exchanger meets your exact specifications for optimal efficiency and durability.
Whether you need adjustments in plate thickness, gasket material, or pressure ratings, TB’s APV Brazed Plate Heat Exchanger model A145 can be tailored to suit your industrial needs, guaranteeing superior heat transfer performance and long-lasting service life.
