| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | M060 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Applications: | Food Processing, HVAC, Chemical Industry, Dairy | Plate Type: | Gasketed Plate |
|---|---|---|---|
| Maxoperatingpressure: | Up To 25 Bar | Cleaningmethod: | CIP (Clean-in-Place) Compatible |
| Max Working Pressure: | 13 Bar | Platethickness: | 0.4 - 1.2 Mm |
| Plate Arrangement: | Parellel | Gasketmaterial: | NBR, EPDM, Or Viton |
The APV High Efficiency Plate Heat Exchanger is a state-of-the-art solution designed to deliver superior thermal performance and reliability in a compact and versatile design. Engineered to meet the demanding needs of various industries, this heat exchanger is renowned for its high efficiency, durability, and ease of maintenance, making it an ideal choice for applications ranging from food processing to chemical manufacturing.
One of the standout features of the APV High Efficiency Plate Heat Exchanger is its advanced plate pattern options, specifically the Chevron and Herringbone patterns. These plate patterns are meticulously designed to maximize heat transfer by creating turbulent flow, which significantly enhances the heat exchange process while minimizing pressure drops. The Chevron pattern is particularly well-suited for applications requiring high heat transfer coefficients, whereas the Herringbone pattern offers excellent performance in scenarios where fluid viscosity or fouling tendencies are considerations. This flexibility in plate pattern selection allows users to optimize the heat exchanger according to their specific process requirements.
The plates themselves are connected using a reliable button-type plate connection system. This design ensures a secure and stable assembly, facilitating efficient heat transfer and simplifying the disassembly process for cleaning or plate replacement. The button connection also contributes to the overall compactness of the unit, thereby supporting the APV Compact Plate Heat Exchanger’s reputation for space-saving design without compromising on performance.
Gasket material selection is a critical aspect of the APV High Efficiency Plate Heat Exchanger, providing compatibility with a wide range of fluids and operating conditions. The product offers gasket materials including NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton (Fluoroelastomer). Each gasket material is carefully chosen to meet different chemical resistances and temperature tolerances. NBR is ideal for applications involving oils and moderate temperatures, EPDM excels in high-temperature and steam environments as well as in contact with aggressive chemicals, and Viton provides superior chemical resistance for more demanding applications. This versatility in gasket materials ensures that the heat exchanger can be tailored to various industrial processes.
Safety and hygiene are paramount in many applications, especially in food and pharmaceutical industries. To address this, the APV High Efficiency Plate Heat Exchanger uses non-toxic, food-grade gasket glue. This ensures that all sealing components comply with stringent health and safety regulations, preventing contamination and maintaining product integrity throughout the heat exchange process.
In terms of installation and connectivity, the APV Compact Plate Heat Exchanger offers two main connection types: flanged and threaded. Flanged connections provide robust and leak-resistant joints suitable for high-pressure applications and ease of maintenance, while threaded connections allow for more compact installations and are ideal for lower pressure systems or where space constraints exist. This flexibility in connection types allows the heat exchanger to be seamlessly integrated into a wide array of piping systems and operational setups.
Overall, the APV High Efficiency Plate Heat Exchanger combines innovative design features, versatile material options, and flexible connection types to deliver outstanding performance and reliability. Its compact size, combined with efficient heat transfer capabilities, makes it a preferred choice for engineers and process designers aiming to optimize thermal management in their systems. Whether utilized in food processing, HVAC, chemical production, or other industrial applications, the APV Compact Plate Heat Exchanger stands out as a high-quality, efficient, and durable solution.
In summary, the APV High Efficiency Plate Heat Exchanger is distinguished by its advanced Chevron or Herringbone plate patterns, button-type plate connections, a range of gasket materials including NBR, EPDM, or Viton, and the use of non-toxic, food-grade gasket glue. Its availability with flanged or threaded connection types further enhances its adaptability. These attributes collectively ensure that the product delivers exceptional heat transfer efficiency, operational safety, and ease of maintenance, making it an indispensable component for modern heat exchange requirements.
| Plate Connection | Button |
| Gasket Glue | Non-toxic, Food Grade |
| Connection Type | Flanged Or Threaded |
| Max Operating Pressure | Up To 25 Bar |
| Heat Transfer Area | 0.19 M² |
| Plate Type | Gasketed Plate |
| Plate Thickness | 0.4 - 1.2 mm |
| Plate Pattern | Chevron Or Herringbone Pattern |
| Max Working Pressure | 13 Bar |
| Plate Arrangement | Parallel |

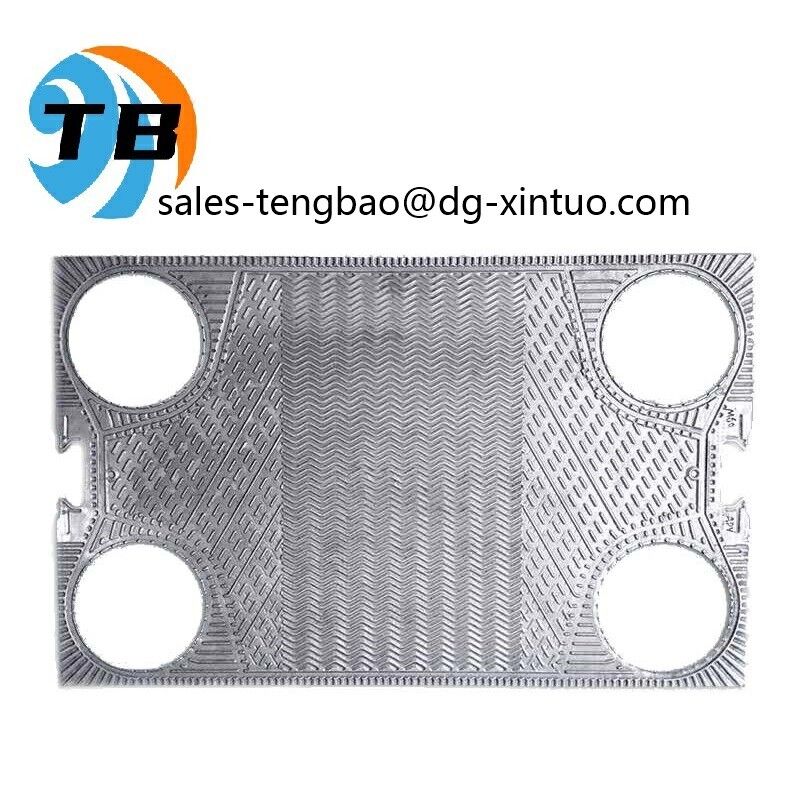

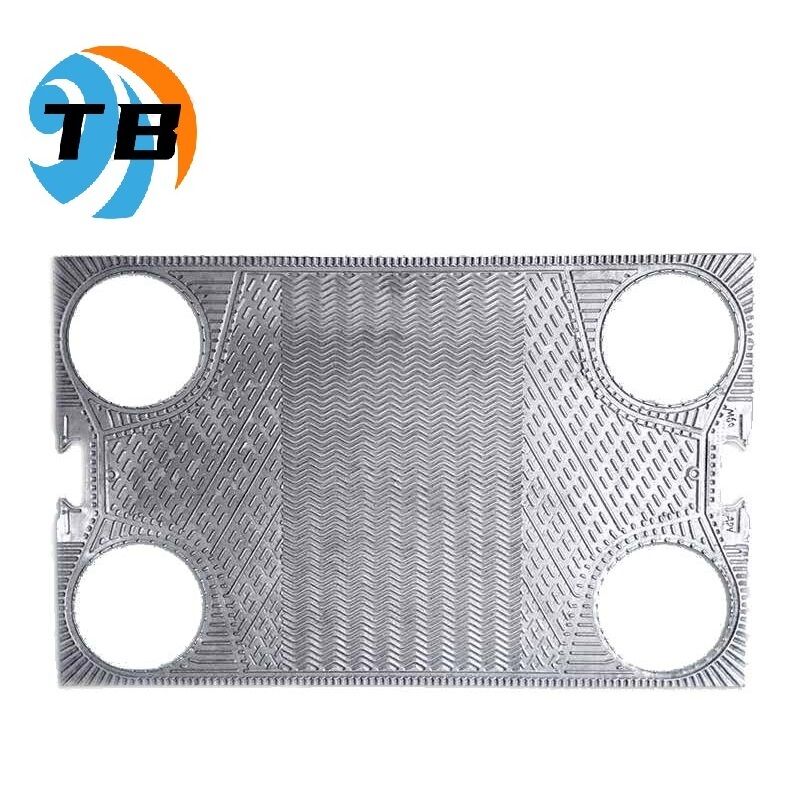

The TB APV Heat Exchanger Plate, model number A145, is a high-quality product originating from China and certified under ISO9001 standards. This heat exchanger plate is designed to deliver exceptional performance with a heat transfer coefficient typically ranging between 500 and 3000 W/m²K, making it highly efficient for a variety of thermal exchange applications. The APV Gasketed Plate Heat Exchanger is well-suited for industries requiring reliable and hygienic heat transfer solutions, especially where food safety is paramount. The use of non-toxic, food-grade gasket glue ensures that the product meets stringent health and safety regulations, making it ideal for food and beverage processing plants.
With a heat transfer area of 0.19 m², the APV Heat Exchanger Plate offers compact yet effective thermal exchange capabilities. The gasket material options, including NBR, EPDM, or Viton, provide flexibility to meet different chemical resistance and temperature requirements, enhancing the product’s adaptability in various environments. This versatility allows the APV Thermal Plate Exchanger to be utilized in a wide range of application occasions and scenarios.
In industrial settings, the APV Gasketed Plate Heat Exchanger is commonly employed for heating, cooling, pasteurization, and sterilization processes. It is especially beneficial in dairy production, breweries, and beverage manufacturing, where maintaining product integrity and preventing contamination are critical. The APV Brazed Plate Heat Exchanger variety complements the gasketed models by offering a more compact, brazed solution for high-pressure and high-temperature applications such as chemical processing and HVAC systems.
Moreover, the TB APV Heat Exchanger Plate plays a crucial role in energy recovery systems, where efficient heat transfer reduces operational costs and environmental impact. It is also widely used in pharmaceutical manufacturing and biotechnology, where precise temperature control and hygienic design are essential. The robust construction and reliable performance of the APV Thermal Plate Exchanger ensure long service life and minimal maintenance, making it a cost-effective choice across multiple industries.
In summary, the TB APV Heat Exchanger Plate model A145 is an optimal solution for a diverse array of thermal management scenarios. Whether in food processing, chemical industries, energy recovery, or pharmaceuticals, the APV Gasketed Plate Heat Exchanger and APV Brazed Plate Heat Exchanger provide efficient, safe, and adaptable heat exchange performance, supported by food-grade materials and international quality certification.
TB's APV Heat Exchanger Plate, model number A145, is a high-quality gasketed plate designed for efficient heat transfer with a heat transfer area of 0.19 M2. Originating from China and certified with ISO9001, this plate is ideal for use in APV Compact Plate Heat Exchanger systems as well as APV Industrial Plate Heat Exchanger applications.
The plate features a parallel plate arrangement and can operate under a maximum pressure of up to 25 bar, ensuring reliable performance in demanding environments. Its robust construction makes it perfectly suited for integration into APV Stainless Steel Plate Heat Exchanger units, providing durability and excellent heat exchange efficiency.
With TB's commitment to quality and precision, the A145 model offers customizable solutions tailored to meet various industrial requirements, making it a versatile choice for your heat exchanger needs.
