| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | V60 gaskets |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Efficiency: | High Heat Transfer Efficiency | Weight: | 50kgs |
|---|---|---|---|
| Achinery Test Report: | Provided | Test Pressure: | 1.3/2.1mpa |
| Working Pressure: | 3.0MPa | Model: | 200-80D |
| Iso: | Yes | Plate Material: | Titanium/ Nickle/ Hastolly/ Stainless Steel |
The 200-80D model plate heat exchanger is a high-performance, reliable solution designed for efficient heat transfer across a wide range of industrial applications. As a compact plate heat exchanger, it offers exceptional thermal efficiency in a space-saving design, making it ideal for environments where both performance and footprint are critical considerations. This model incorporates advanced engineering principles to ensure optimal heat exchange between fluids, whether for heating, cooling, or energy recovery purposes.
At the core of the 200-80D plate and frame heat exchanger is a robust pressure vessel, which serves as the primary structural component. This pressure vessel is engineered to withstand high pressures and varying temperatures, ensuring durability and safety during operation. Its solid construction guarantees that the unit can handle demanding industrial processes without compromise. The pressure vessel’s design also facilitates easy maintenance and inspection, which helps to reduce downtime and operational costs.

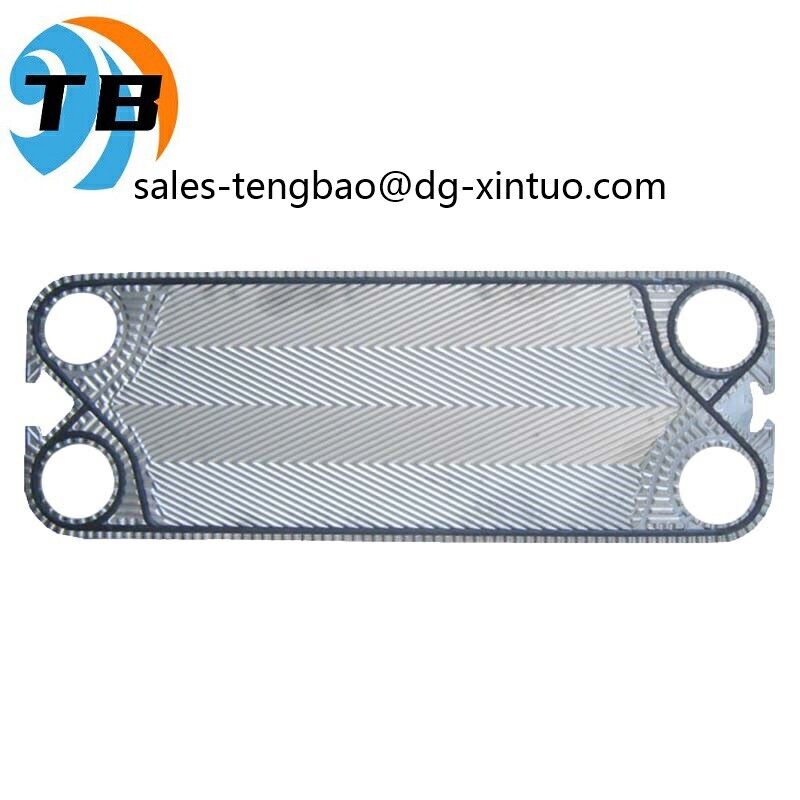

One of the standout features of this plate heat exchanger is its gasket, which is made from FDA-certified NBR (Nitrile Butadiene Rubber). This gasket material is specifically chosen for its excellent chemical resistance, durability, and compliance with stringent food safety standards. The FDA certification assures users that the gasket meets all regulatory requirements for applications involving food, beverage, and pharmaceutical fluids. The NBR gasket also provides a reliable seal between plates, preventing leaks and ensuring efficient heat transfer.
The plates themselves are manufactured from premium materials such as titanium, nickel, Hastelloy, and stainless steel. This versatility in plate material options allows the 200-80D model to be tailored to various chemical and thermal environments. For instance, titanium and nickel plates are especially suitable for corrosive fluids, while Hastelloy offers superior resistance to aggressive chemicals. Stainless steel plates, meanwhile, provide a cost-effective and durable choice for many standard applications. The use of these high-grade materials contributes to the longevity and reliability of the stainless steel plate heat exchanger, making it a preferred choice in industries ranging from chemical processing to food manufacturing.
To ensure that each unit meets rigorous quality and performance standards, the 200-80D model is supplied with a comprehensive machinery test report. This documentation provides detailed information on the testing procedures undertaken, confirming the heat exchanger’s pressure resistance, leakage integrity, and overall operational efficiency. The availability of this test report gives customers confidence in the product’s reliability and compliance with industry norms, supporting smooth installation and operation.
The compact design of this plate and frame heat exchanger allows it to integrate seamlessly into existing systems, even in confined spaces. Its modular construction means that it can be easily expanded or modified to accommodate changing process requirements, offering significant flexibility to plant operators. Moreover, the plate arrangement promotes turbulent flow, which enhances heat transfer rates and reduces fouling, thereby improving the overall efficiency and lifespan of the unit.
In summary, the 200-80D plate heat exchanger combines a sturdy pressure vessel, FDA-certified NBR gaskets, and expertly crafted plates made from titanium, nickel, Hastelloy, or stainless steel to deliver unmatched performance in a compact footprint. Its design and material versatility make it a reliable and efficient choice for a wide array of applications, from food and beverage processing to chemical and pharmaceutical industries. With the inclusion of a detailed machinery test report, this stainless steel plate heat exchanger ensures quality, safety, and efficiency, making it an indispensable component in modern heat transfer systems.
| Model | 200-80D |
| Test Pressure | 1.3/2.1 MPa |
| Working Pressure | 3.0 MPa |
| Heat Transfer Area | 0.1 - 50 m² |
| Gasket | FDA Certificate NBR |
| Color | Silver, Yellow, Brown |
| Weight | 50 kgs |
| Connection Type | Connecting Pipes |
| Model of Plate | Titanium |
| Core Components | Pressure Vessel |
The TB A055 plate heat exchanger, manufactured in China and certified with ISO9001, is a highly reliable and efficient solution for various heat exchange needs. This sealed plate heat exchanger is designed to provide optimal thermal performance with a heat transfer area ranging from 0.1 to 50 m², making it suitable for both small-scale and large-scale applications. Its robust construction includes a brazed plate heat exchanger design, ensuring excellent durability and minimal maintenance, while the FDA-certified NBR gasket guarantees safe operation, especially in sensitive industries such as food and beverage processing.
In HVAC systems, the TB A055 heat transfer plate exchanger plays a crucial role in energy conservation and climate control. It efficiently transfers heat between fluids, enabling effective heating, cooling, and ventilation in residential, commercial, and industrial buildings. The compact design and high heat transfer efficiency make it ideal for use in air conditioning units, heat pumps, and district heating systems, where space and energy savings are essential. The product’s test pressure of 1.3/2.1 MPa, along with a comprehensive machinery test report, ensures that it meets stringent safety and performance standards in demanding HVAC environments.
The chemical processing industry benefits significantly from the TB A055 brazed plate heat exchanger due to its ability to handle corrosive fluids and high pressures. Its sealed plate heat exchanger design prevents leakage and contamination, which is critical when dealing with hazardous chemicals. This heat transfer plate exchanger supports temperature regulation in reactors, condensers, and heat recovery systems, enhancing process efficiency and product quality. The durable brazed plates and FDA-certified NBR gaskets provide chemical resistance and longevity, reducing downtime and maintenance costs.
In the food and beverage sector, the TB A055 plate heat exchanger ensures hygienic and efficient heat transfer, supporting processes such as pasteurization, sterilization, and brewing. The FDA certification of the gasket material assures compliance with food safety regulations, making it suitable for direct contact with consumable products. Its compact size and high efficiency allow for easy integration into production lines, improving thermal management while maintaining product integrity. The sealed plate heat exchanger design minimizes fluid mixing, ensuring clean and safe operation.
Overall, the TB A055 plate heat exchanger is a versatile and dependable choice across multiple industries. Its combination of certified quality, high test pressure capability, and specialized gasket materials makes it an excellent solution for HVAC, chemical processing, and food & beverage applications. The heat transfer plate exchanger’s compact design and superior thermal performance contribute to energy savings, operational reliability, and enhanced process control in diverse scenarios.
Our TB brand pressed plate heat exchanger, model A055, offers exceptional customization services to meet your specific needs. Manufactured in China and certified with ISO9001, this plate type heat exchanger is designed with high-quality materials including Titanium, Nickel, Hastelloy, and Stainless Steel plates to ensure durability and optimal performance.
The heat transfer plate exchanger features FDA certified NBR gaskets, providing reliable sealing and safety for various applications. With a core component of a robust pressure vessel and a weight of 50kgs, the model 200-80D is engineered for efficient heat exchange processes.
We provide tailored solutions for the plate heat exchanger to suit different operational requirements, including material selection, gasket options, and design specifications, ensuring maximum efficiency and longevity. Trust TB's expertise in delivering customized pressed plate heat exchangers that cater to your unique industrial demands.
Our Plate Heat Exchanger products are designed to deliver efficient thermal transfer performance for a wide range of industrial applications. To ensure optimal operation and longevity, we provide comprehensive technical support and services tailored to your specific needs.
Technical Support:
Our experienced technical team is available to assist you with product selection, installation guidance, operation optimization, and troubleshooting. We offer detailed documentation, including installation manuals, maintenance guidelines, and performance specifications to help you get the best out of your plate heat exchanger.
Maintenance Services:
Regular maintenance is crucial for the sustained performance of plate heat exchangers. We provide expert maintenance services, including cleaning, gasket replacement, and inspection to prevent fouling and leaks. Our service technicians ensure that your equipment operates at peak efficiency with minimal downtime.
Spare Parts and Upgrades:
We supply genuine spare parts compatible with your plate heat exchanger model. Additionally, we offer upgrade options to enhance performance or adapt to changing process requirements, ensuring your system remains up-to-date with the latest technology.
Training and Consultation:
To empower your team, we offer training sessions covering operational best practices, routine maintenance, and troubleshooting techniques. Our consultation services help you optimize your heat exchanger setup for maximum efficiency and cost savings.
Warranty and After-Sales Support:
All our plate heat exchangers come with a standard warranty covering manufacturing defects. Our after-sales support team is committed to resolving any issues promptly to maintain your satisfaction and trust.
For detailed technical assistance or to schedule a service, please reach out to our support team through the appropriate channels provided by your local representative or company website.
