| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | V4 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Applications: | HVAC, Chemical Processing, Food & Beverage | Model: | 200-80D |
|---|---|---|---|
| Working Pressure: | 3.0MPa | Weight: | 50kgs |
| Gasket: | FDA Certificate NBR | Connection Type: | Connecting Pipes |
| Achinery Test Report: | Provided | Test Pressure: | 1.3/2.1mpa |
The pressed plate heat exchanger is an advanced solution designed to deliver exceptional thermal performance in a compact and efficient form. With a heat transfer area ranging from 0.1 to 50 square meters, this product is versatile enough to meet the demands of various industrial applications, from small-scale processes to larger, more complex systems. Its design allows for optimal heat exchange between fluids, ensuring maximum energy efficiency and cost savings.
One of the standout features of this pressed plate heat exchanger is its high heat transfer efficiency. Utilizing a model of plate made from titanium, the exchanger boasts superior resistance to corrosion and wear, making it ideal for use with aggressive fluids and in harsh operating environments. Titanium plates not only enhance durability but also contribute to the overall efficiency by maintaining consistent thermal conductivity over time.

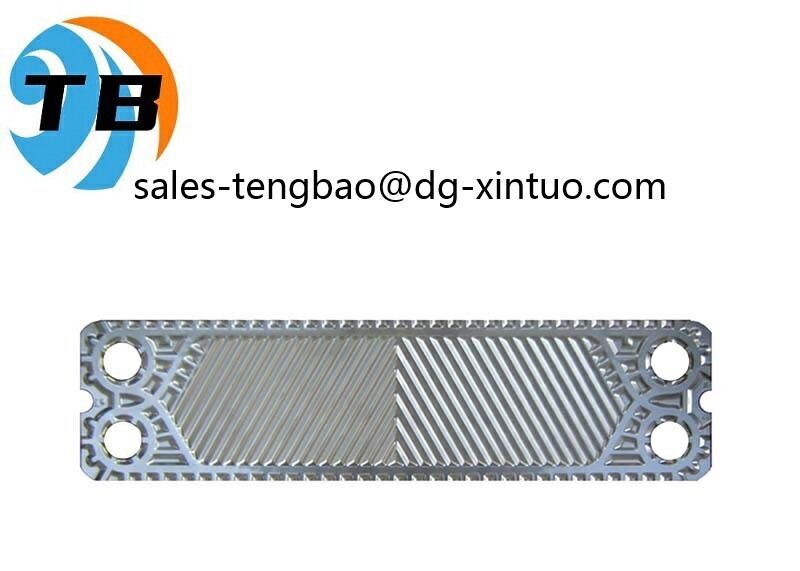

The plate and frame heat exchanger design incorporates a series of thin, corrugated plates that are pressed and assembled to create multiple channels for fluid flow. This configuration maximizes the surface area available for heat transfer while minimizing the footprint of the unit. The pressed plate heat exchanger’s compact structure allows for easy installation in limited spaces, making it a practical choice for facilities where space optimization is crucial.
In addition to its robust construction, this plate heat exchanger is available in a range of attractive colors including silver, yellow, and brown. These color options not only enhance the aesthetic appeal of the equipment but can also be used for identification and organizational purposes within industrial setups.
Weighing approximately 50 kilograms, the unit strikes an excellent balance between sturdiness and portability. This manageable weight facilitates easier handling during installation and maintenance, reducing downtime and labor costs. Despite its relatively lightweight nature, the pressed plate heat exchanger does not compromise on strength or reliability.
The pressed plate heat exchanger is particularly valued in industries such as chemical processing, food and beverage production, HVAC systems, and marine applications. Its ability to efficiently transfer heat between fluids without mixing them ensures that processes remain hygienic and contamination-free. Moreover, the plate and frame design allows for straightforward cleaning and maintenance, further extending the lifespan of the equipment.
Energy efficiency is a critical consideration in today’s industrial landscape, and this plate heat exchanger excels in this area. By facilitating rapid and effective heat exchange, it reduces the need for excessive energy consumption, thereby lowering operational costs and minimizing environmental impact. The high heat transfer efficiency of this unit also means that it can achieve desired temperature changes more quickly, improving overall process throughput.
In summary, the pressed plate heat exchanger offers a powerful combination of durability, efficiency, and versatility. Its titanium plates provide exceptional corrosion resistance, while the wide range of heat transfer areas ensures suitability for diverse applications. The availability of multiple color options and a manageable weight of 50 kilograms add to its practical advantages. Whether used as a standalone solution or integrated into larger systems, this plate and frame heat exchanger delivers reliable performance and long-term value.
| Applications | HVAC, Chemical Processing, Food & Beverage |
| Working Pressure | 3.0MPa |
| Efficiency | High Heat Transfer Efficiency |
| Model | 200-80D |
| Color | Silver, Yellow, Brown |
| Machinery Test Report | Provided |
| Core Components | Pressure Vessel |
| Weight | 50kgs |
| Gasket | FDA Certificate NBR |
| Test Pressure | 1.3/2.1MPa |
The TB A055 sealed plate heat exchanger, proudly manufactured in China and certified with ISO9001, is a highly efficient solution designed for a variety of industrial and commercial applications. With a test pressure rating of 1.3/2.1mpa and a heat transfer area ranging from 0.1 to 50 M², this plate type heat exchanger ensures reliable performance and durability. Its titanium model of plate construction offers excellent corrosion resistance, making it ideal for demanding environments.
One of the primary application occasions for the TB A055 heat transfer plate exchanger is in HVAC systems. In heating, ventilation, and air conditioning, maintaining optimal temperature control is crucial for comfort and energy efficiency. This plate heat exchanger facilitates effective heat transfer between fluids, allowing for efficient heating or cooling of air and water systems. Its compact design and high heat transfer efficiency make it suitable for both residential and large commercial HVAC installations.
In the chemical processing industry, the TB A055 sealed plate heat exchanger is widely used due to its robust titanium plates, which can withstand aggressive chemicals and high temperatures. It efficiently transfers heat between process fluids, helping maintain precise temperature control necessary for chemical reactions and safety. The plate type heat exchanger design also allows for easy cleaning and maintenance, which is essential in chemical production environments.
The food and beverage sector benefits significantly from the TB A055 model as well. Hygiene and contamination prevention are paramount, and the sealed plate heat exchanger design supports these requirements by preventing leakage and cross-contamination between fluids. Its efficient heat exchange capabilities are ideal for pasteurization, cooling, and heating processes, ensuring product quality and energy savings. The titanium plates additionally resist corrosion from acidic or salty food products, extending the equipment’s lifespan.
Overall, the TB A055 heat transfer plate exchanger is a versatile and reliable choice for applications requiring high heat transfer efficiency and robust construction. Whether in HVAC, chemical processing, or food and beverage industries, this plate type heat exchanger delivers superior performance, easy maintenance, and long service life, making it an essential component in modern thermal management systems.
At TB, we offer customized product solutions for our plate heat exchanger model A055, designed to meet diverse industrial needs. Originating from China and certified with ISO9001, our plate type heat exchanger ensures high quality and reliable performance.
The A055 model features a heat transfer area ranging from 0.1 to 50 M², making it adaptable to various heat exchange requirements. With the model 200-80D, customers can select from a variety of plate materials including Titanium, Nickel, Hastelloy, and Stainless Steel to best suit their operational environment.
Our sealed plate heat exchanger design guarantees leak-proof operation, while the brazed plate heat exchanger configuration enhances durability and efficiency. The core components incorporate a robust pressure vessel to withstand demanding pressure conditions.
Additionally, the plate model made from Titanium offers excellent corrosion resistance and heat transfer capabilities, ideal for specialized applications. Trust TB for tailored solutions in plate heat exchangers that combine advanced technology with customizable options.
Our Plate Heat Exchanger products are designed to provide efficient thermal transfer for a wide range of industrial applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services.
Technical Support:
Our experienced technical team is available to assist you with installation guidance, troubleshooting, and maintenance recommendations. We provide detailed product documentation, including operation manuals and technical specifications, to help you understand the correct usage and care of your plate heat exchanger.
Installation Services:
Proper installation is critical for the optimal functioning of your plate heat exchanger. We offer expert installation services performed by trained technicians to ensure that your equipment is set up correctly and safely.
Maintenance and Repair:
Regular maintenance is essential to maintain efficiency and prevent downtime. We provide scheduled maintenance services, including cleaning, gasket replacement, and plate inspection. In case of any damage or performance issues, our repair services can restore your plate heat exchanger to peak condition.
Spare Parts and Upgrades:
We supply genuine spare parts and accessories to keep your plate heat exchanger operating smoothly. Additionally, we offer upgrade options to improve performance or adapt to changing process requirements.
Training and Consultation:
To empower your team, we offer training sessions on the operation, maintenance, and troubleshooting of plate heat exchangers. Our experts are also available for consultation to help optimize your thermal transfer processes.
Warranty and Quality Assurance:
All our plate heat exchangers come with a warranty backed by rigorous quality assurance protocols. We are committed to delivering reliable and durable products that meet international standards.
For further assistance and detailed service options, please refer to the product documentation or contact our support team.
