| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S188 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Cleaningmethod: | CIP (Clean-in-Place) Compatible | Plate Length: | 1000mm |
|---|---|---|---|
| Model: | Sondex Heat Exchanger Plate | Plate Thickness: | 0.4-0.6mm |
| Platedimensions: | Varies By Model, Typically 200 Mm X 200 Mm To 600 Mm X 600 Mm | Max Working Temperature: | 150°C |
| Plate Type: | Gasketed Plate | After Warranty Service: | Online Support |
The Sondex heat exchanger plate is a high-performance component specifically designed for use in Sondex plate type heat exchangers. Known for their efficiency and reliability, these plates play a crucial role in facilitating effective heat transfer in various industrial applications. Manufactured with precision and engineered to meet stringent quality standards, the Sondex heat exchanger plate ensures optimal thermal performance and durability.
One of the standout features of the Sondex heat exchanger plate is its ability to operate under demanding conditions. It boasts a maximum operating pressure of 25 Bar, allowing it to withstand high-pressure environments without compromising its structural integrity. This makes it an ideal choice for industries that require robust heat exchange solutions, including chemical processing, HVAC systems, food and beverage production, and power generation.
In addition to its impressive pressure tolerance, the Sondex heat exchanger plate is designed to handle elevated temperatures, with a maximum working temperature of 150°C. This capability ensures that the plate can efficiently transfer heat in processes involving hot fluids or steam, maintaining consistent performance even under thermal stress. The combination of high pressure and temperature resistance makes the Sondex plate type heat exchanger suitable for a wide range of thermal management applications.
The dimensions of the Sondex heat exchanger plate vary depending on the specific model, typically ranging from 200 mm x 200 mm to 600 mm x 600 mm. This versatility in size allows for customization based on the heat exchanger’s capacity and the space available within the system. Whether the requirement is for a compact unit or a larger, more powerful heat exchanger, the Sondex heat exchanger plate can be tailored to fit the application perfectly.
Plate thickness is another critical attribute, with options ranging from 0.4 mm to 1.2 mm. The variation in thickness provides flexibility in balancing heat transfer efficiency and mechanical strength. Thinner plates generally offer enhanced heat transfer rates due to their reduced thermal resistance, while thicker plates deliver greater durability and resistance to corrosion or mechanical wear. This range ensures that the Sondex plate type heat exchanger can be optimized to meet specific operational needs.
Gasket material selection is essential to maintain the seal integrity and prevent fluid leakage within the heat exchanger. The Sondex heat exchanger plate is compatible with several high-quality gasket materials, including NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton. Each gasket type offers distinct advantages: NBR provides excellent resistance to oils and fuels, EPDM is suitable for hot water and steam applications, and Viton offers superior chemical and temperature resistance. This variety ensures that the Sondex heat exchanger plate can be effectively sealed in diverse environments, enhancing its operational reliability.
In summary, the Sondex heat exchanger plate is a versatile, durable, and efficient solution for heat exchange applications requiring high pressure and temperature capabilities. Its customizable dimensions and thickness, combined with a choice of gasket materials, make it adaptable to a broad spectrum of industrial processes. By incorporating the Sondex heat exchanger plate into your system, you ensure enhanced thermal performance, reduced downtime, and long-term operational stability. The Sondex plate type heat exchanger continues to be a trusted component for engineers and technicians seeking dependable heat transfer solutions across various sectors.
| Model | Sondex Heat Exchanger Plate |
| Plate Type | Chevron Pattern |
| Veneer Area | Customized |
| Plate Dimensions | Varies By Model, Typically 200 mm x 200 mm to 600 mm x 600 mm |
| Plate Length | 1000 mm |
| Gasket Material | NBR, EPDM, Viton |
| Gasket Thickness | 2 mm |
| Max Working Temperature | 150°C |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| After Warranty Service | Online Support |

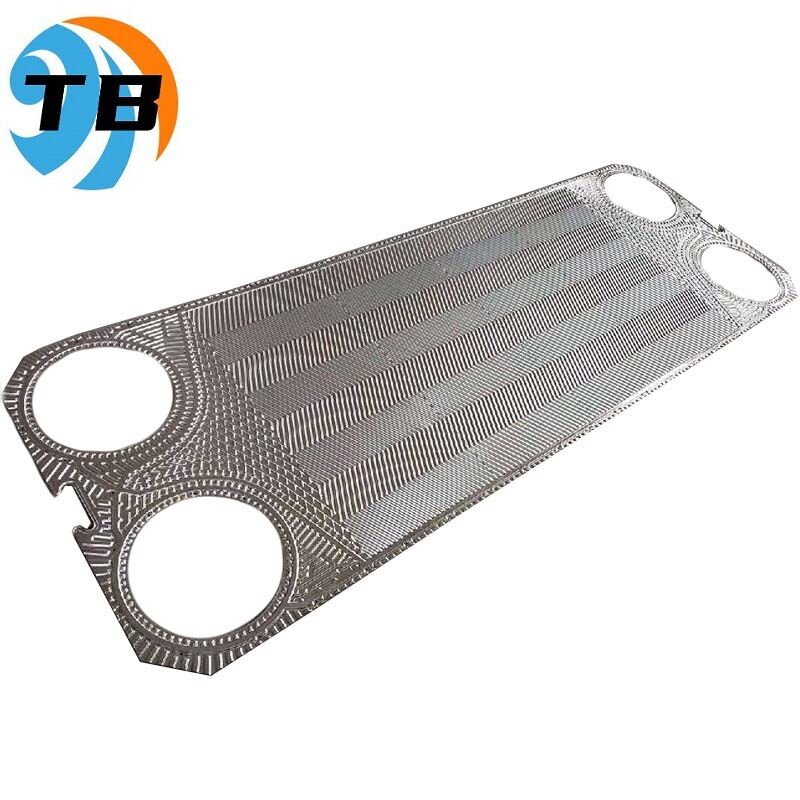

This Sondex stainless steel heat plate is designed for efficient heat transfer in various applications. The Sondex plate heat transfer unit features a chevron pattern plate type and is ideal as a Sondex industrial heat plate, ensuring durability and high performance.
The TB S7A Sondex Heat Exchanger Plate, originating from China and certified with ISO9001, is a highly reliable component designed for efficient heat transfer in various industrial applications. With a maximum operating pressure of 25 Bar, plate thickness ranging from 0.4 to 0.6mm, and a gasket thickness of 2mm, this Sondex plate heat transfer unit ensures durability and optimal performance under demanding conditions. Its chevron pattern plate type is specifically engineered to enhance turbulence and heat exchange efficiency, making it an ideal choice for diverse heat transfer scenarios.
This Sondex industrial heat plate is widely used in industries such as HVAC, chemical processing, power generation, food and beverage processing, and refrigeration. In HVAC systems, it facilitates effective heat recovery and temperature regulation, improving energy efficiency in commercial and residential buildings. The robust design of the Sondex stainless steel heat plate also makes it suitable for chemical plants where corrosive fluids require reliable heat exchange solutions that maintain integrity and safety under high pressure.
In power generation facilities, the TB S7A model supports the transfer of heat between fluids in boilers and cooling systems, ensuring optimal thermal management and system reliability. The food and beverage industry benefits from the hygienic and corrosion-resistant properties of the stainless steel heat plates, allowing safe and efficient heat exchange in pasteurization, sterilization, and other critical thermal processes. Additionally, refrigeration systems utilize this Sondex plate heat transfer unit to improve cooling efficiency while maintaining compact system designs.
Thanks to its precise construction and certification standards, the Sondex heat exchanger plate is ideal for situations requiring consistent heat transfer performance and durability. Its versatile applications range from small-scale operations to large industrial plants, offering a dependable solution for heat exchange needs. Whether integrating into new systems or replacing existing plates, the TB S7A model provides excellent compatibility and long service life.
Overall, the TB brand’s Sondex heat exchanger plate offers superior heat transfer capabilities and resilience, making it a preferred choice across multiple industrial occasions and scenarios. Its combination of advanced design, certified quality, and robust materials ensures that it meets the rigorous demands of modern heat exchange applications efficiently and reliably.
