| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S88 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Width: | 500mm | Weight: | Depends On Size, Typically 5 To 50 Kg |
|---|---|---|---|
| Plate Length: | 1000mm | Maxoperatingtemperature: | 225°C |
| Gasketmaterial: | NBR, EPDM, Viton | Plate Material: | Stainless Steel |
| Heat Transfer Area: | 2.5m² | Platetype: | Chevron Pattern |

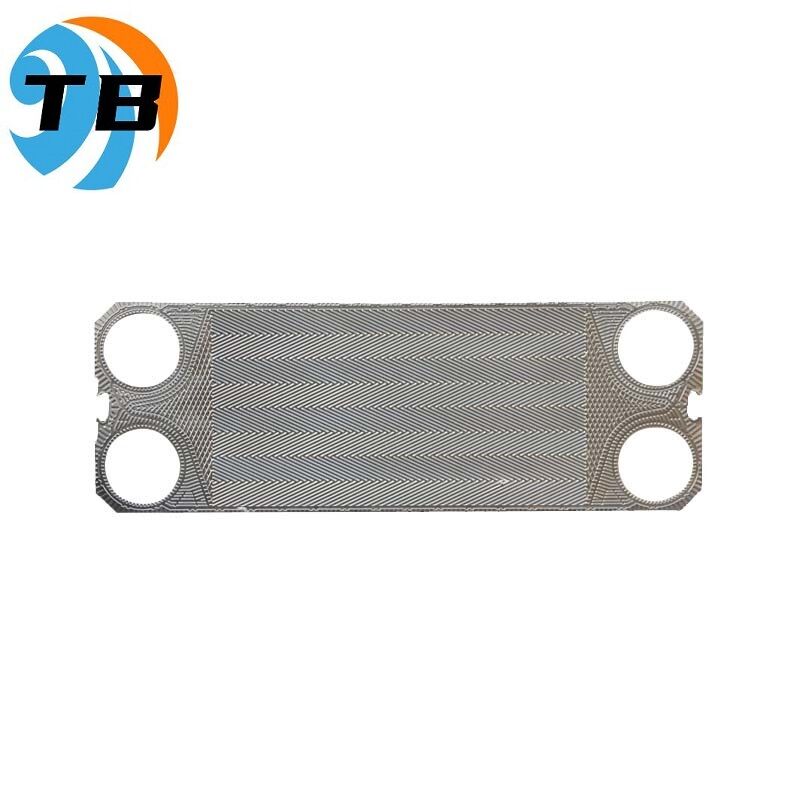

The Sondex heat exchanger plate is a high-performance component designed for efficient thermal management in various industrial applications. Manufactured with premium stainless steel materials, specifically AISI 316 and AISI 304, this product ensures exceptional durability, corrosion resistance, and long-lasting service life. The use of stainless steel in the construction of the plate makes the Sondex cooling plate exchanger ideal for demanding environments where both strength and hygiene are critical, such as in food processing, chemical industries, and marine applications.
One of the standout features of the Sondex heat exchanger plate is its heat transfer area of 2.5 square meters, which provides ample surface for effective heat exchange between fluids. This generous heat transfer area ensures optimal thermal efficiency, allowing for rapid temperature regulation and energy savings. Whether used for cooling or heating purposes, the Sondex plate heat exchanger delivers consistent performance, making it a reliable choice for process engineers and plant managers looking to enhance system productivity.
The design of the plate incorporates a chevron pattern, which is known for its superior ability to promote turbulence in the fluid flow. This pattern increases the heat transfer coefficient by disrupting boundary layers and enhancing mixing, thereby maximizing the rate of heat exchange. The chevron design also contributes to the structural integrity of the plate, enabling it to withstand high operating pressures and temperatures. This makes the Sondex industrial heat plate suitable for a wide range of applications, from HVAC systems to heavy-duty industrial processes.
As a gasket plate heat exchanger, the Sondex product utilizes high-quality gaskets to seal the plates and direct the flow of fluids through alternating channels. This gasket system ensures leak-tight operation and allows for easy maintenance and cleaning, which is essential for maintaining system hygiene and efficiency. The modular nature of gasket plate heat exchangers means that the number of plates can be adjusted to meet specific capacity requirements, offering flexibility and scalability for various installations.
In summary, the Sondex cooling plate exchanger combines robust stainless steel construction with an efficient chevron plate design and a sizable heat transfer area of 2.5m² to provide excellent thermal performance. Its gasket plate configuration ensures ease of maintenance and operational reliability, making it a versatile solution for numerous industrial heat transfer needs. Whether you require a dependable heat exchanger for cooling, heating, or temperature control, the Sondex plate heat exchanger stands out as a premium choice in the market. Its durability, efficiency, and adaptability position it as an essential component for modern industrial processes that demand precision and resilience.
| Plate Type | Gasket Plate Heat Exchanger |
| Model | Heat Exchanger Plate |
| Max Operating Temperature | 225°C |
| Plate Type Pattern | Chevron Pattern |
| Gasket Material | NBR, EPDM, Viton |
| Connection Size | DN50 |
| Max Working Pressure | 1.6 MPa |
| Weight | Depends On Size, Typically 5 To 50 Kg |
| Plate Material | Stainless Steel |
| Plate Thickness | 0.4 mm To 1.2 mm |
The TB S17 Sondex plate heat exchanger is a highly efficient heat transfer unit designed to meet the demanding needs of various industrial applications. Manufactured in China and certified with ISO9001, this Sondex plate heat exchanger ensures reliable performance and quality. Made from durable stainless steel, the plates feature a chevron pattern that optimizes heat transfer while maintaining structural integrity. With a plate thickness ranging from 0.4 mm to 1.2 mm and a maximum operating temperature of 225°C, the Sondex plate heat transfer unit is well-suited for processes requiring robust thermal management.
One of the most common application occasions for the Sondex plate heat exchanger is in HVAC systems, where efficient heat recovery is crucial to reduce energy consumption and improve system sustainability. The 2.5 m² heat transfer area allows for effective heat exchange between fluids, making the S17 model ideal for heating and cooling tasks in commercial and residential buildings. Additionally, it is widely used in refrigeration systems, ensuring optimal temperature control and energy efficiency.
In industrial manufacturing, the Sondex plate heat exchanger finds extensive use in chemical processing, food and beverage production, and pharmaceutical manufacturing. Its stainless steel plate material offers excellent corrosion resistance, which is essential when handling aggressive fluids or maintaining hygienic conditions. The chevron pattern design enhances turbulence, maximizing heat transfer efficiency and reducing fouling, which is critical in maintaining consistent process temperatures and product quality.
The Sondex plate heat transfer unit is also applicable in power plants and marine engineering, where compact size and high thermal performance are vital. Its robust construction withstands high pressures and temperatures, enabling it to operate reliably under harsh conditions. This versatility makes the TB S17 an indispensable component in various thermal management systems, providing efficient heat exchange solutions across multiple sectors.
Overall, the TB S17 Sondex plate heat exchanger combines advanced engineering, superior materials, and rigorous quality standards to deliver exceptional performance. Whether for industrial, commercial, or specialized applications, this heat exchanger is designed to optimize energy use and improve operational efficiency, making it a trusted choice in the field of heat transfer technology.
Our TB S17 Sondex plate type heat exchanger is expertly crafted in China, adhering to the highest quality standards with ISO9001 certification. Designed for optimal performance, this gasket plate heat exchanger model features a maximum working pressure of 1.6MPa and a connection size of DN50, ensuring reliable and efficient operation in various industrial applications.
The Sondex compact heat exchanger plate boasts a plate width of 500mm, providing excellent heat transfer capabilities within a compact design. With its robust construction and precise engineering, the Sondex heat exchanger plate offers durability and superior thermal efficiency, making it an ideal choice for demanding heat exchange processes.
We offer comprehensive product customization services to tailor the Sondex heat exchanger plate to your specific requirements. Whether you need adjustments in dimensions, materials, or connection configurations, our expert team is ready to provide customized solutions to meet your unique application needs.
