| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S43 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Width: | 500mm | Heat Transfer Area: | 2.5m² |
|---|---|---|---|
| Maxoperatingpressure: | 25 Bar | Platethickness: | 0.4 Mm To 1.2 Mm |
| Gasketmaterial: | NBR, EPDM, Viton | Plate Type: | Gasket Plate Heat Exchanger |
| Max Working Pressure: | 1.6MPa | Weight: | Depends On Size, Typically 5 To 50 Kg |
The Sondex plate heat exchanger is a high-performance solution designed to meet the demanding requirements of various industrial and commercial applications. Known for its robust construction and efficient thermal transfer capabilities, the Sondex plate heat transfer unit offers exceptional reliability and durability. This heat exchanger is engineered with precision, featuring a plate length of 1000mm, which provides an optimal surface area for effective heat exchange between fluids.

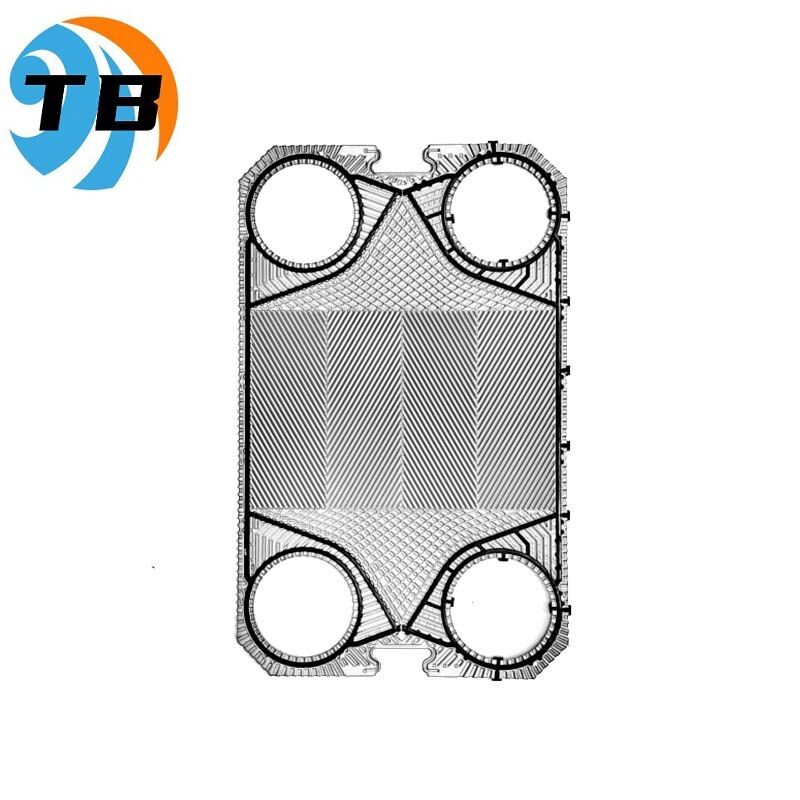

One of the key features of the Sondex plate heat exchanger is its chevron pattern plate type. The chevron design is specifically developed to enhance turbulence within the fluids as they pass through the heat exchanger, significantly improving heat transfer efficiency while minimizing pressure drop. This pattern also contributes to the structural strength of the plates, ensuring longevity and consistent performance across a wide range of operating conditions.
The gasket material used in the Sondex fluid heat exchange plate is carefully selected to ensure compatibility with different types of fluids and to maintain a secure, leak-proof seal. The available gasket materials include NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton. Each of these materials offers distinct advantages: NBR is excellent for oil and fuel resistance, EPDM provides superior performance with hot water and steam, and Viton is ideal for handling aggressive chemicals and high temperatures. This versatility in gasket materials allows the Sondex plate heat transfer unit to be customized for a wide range of applications, ensuring optimal performance and safety.
The connection size of the Sondex plate heat exchanger is DN50, which facilitates easy integration into existing piping systems. This standard size connection ensures compatibility with various industrial setups, making installation and maintenance straightforward and efficient. The DN50 connection supports a steady flow of fluids, contributing to the overall effectiveness of the heat exchange process.
Designed to operate under demanding conditions, the Sondex plate heat exchange plate can withstand a maximum working pressure of 1.6MPa. This capability makes it suitable for use in systems where high pressure is required, such as in chemical processing, power generation, HVAC systems, and other industrial applications. The combination of high pressure tolerance and efficient heat transfer characteristics ensures that the Sondex plate heat transfer unit delivers reliable performance even under challenging operational scenarios.
In addition to its technical specifications, the Sondex plate heat exchanger is known for its ease of maintenance and serviceability. The modular design allows for quick disassembly and cleaning, which reduces downtime and extends the overall lifespan of the equipment. This feature is particularly valuable in industries where hygiene and contamination prevention are critical, such as food processing and pharmaceuticals.
Overall, the Sondex fluid heat exchange plate represents a premium choice for businesses seeking an efficient, durable, and versatile heat exchanger. Its combination of a 1000mm plate length, chevron pattern design, multiple gasket material options, DN50 connection size, and a maximum working pressure of 1.6MPa makes it a highly adaptable solution for a wide variety of heat transfer applications. Whether you are upgrading an existing system or designing a new one, the Sondex plate heat transfer unit offers the performance and reliability required to meet your heat exchange needs effectively.
| Plate Thickness | 0.4 mm to 1.2 mm |
| Heat Transfer Area | 2.5 m² |
| Max Operating Temperature | 225°C |
| Gasket Material | NBR, EPDM, Viton |
| Max Working Pressure | 1.6 MPa (25 Bar) |
| Weight | Depends on size, typically 5 to 50 Kg |
| Plate Type | Chevron Pattern |
| Connection Size | DN50 |
| Material | Stainless Steel (AISI 316, AISI 304) |
The TB S17 Sondex plate heat exchanger is a high-performance gasket plate heat exchanger designed for a wide range of industrial and commercial applications. Manufactured in China and certified with ISO9001, this Sondex plate type heat exchanger ensures reliability, durability, and efficiency in thermal exchange processes. With a heat transfer area of 2.5m² and a connection size of DN50, the S17 model is tailored to meet the demands of various heat transfer requirements while maintaining a compact and space-saving design. The weight of the unit typically ranges from 5 to 50 kg, depending on the size, making it suitable for installations where both efficiency and manageable weight are critical factors.
The Sondex thermal exchange plate technology incorporated in the TB S17 model is ideal for applications such as HVAC systems, refrigeration, chemical processing, food and beverage production, and power generation. Its gasket plate design allows for easy maintenance and cleaning, which is essential in industries where hygiene and operational uptime are paramount. The versatility of the Sondex plate heat exchanger makes it suitable for use in heating, cooling, condensing, and evaporating duties, providing efficient thermal management across diverse scenarios.
In industrial settings, the Sondex plate type heat exchanger is often employed for heat recovery systems, where it helps reduce energy consumption by transferring heat from exhaust gases or wastewater to incoming fluids. This contributes significantly to sustainability goals and operational cost savings. Additionally, in the food and beverage industry, the TB S17 model can be used for pasteurization processes, ensuring precise temperature control and product safety.
The compact size and robust construction of the Sondex thermal exchange plate make it an excellent choice for installations with limited space but demanding performance requirements. Its gasket design also allows for flexible configuration and easy expansion or modification, adapting to changing operational needs. Whether in manufacturing plants, commercial buildings, or specialized processing facilities, the TB S17 Sondex plate heat exchanger delivers reliable and efficient thermal exchange performance.
Overall, the TB S17 Sondex plate heat exchanger is a versatile and dependable solution for a wide array of heat transfer applications, combining advanced design and proven technology to meet the stringent demands of modern industry. Its certification, build quality, and performance specifications make it a preferred choice for engineers and facility managers seeking effective thermal management solutions.
TB brand Sondex plate type heat exchanger Model S17 is a high-quality product originating from China. It is certified with ISO9001, ensuring reliable performance and durability. This Sondex compact heat exchanger plate features a heat transfer area of 2.5m² and supports a maximum operating pressure of 25 Bar, making it suitable for demanding industrial applications.
The Sondex cooling plate exchanger comes with a connection size of DN50 and offers gasket materials including NBR, EPDM, and Viton to meet various chemical and temperature resistance requirements. It can operate at a maximum temperature of 225°C, providing excellent thermal efficiency and long service life.
Our product customization services allow you to tailor the Sondex plate type heat exchanger to your specific needs, ensuring optimal performance and integration into your system. Whether you require specific gasket materials or connection sizes, our expert team is ready to assist with your customization requests.
