| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S7A |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Gasketmaterial: | NBR, EPDM, Viton | Plate Length: | 1000mm |
|---|---|---|---|
| Maxoperatingpressure: | 25 Bar | Veneer Area: | Customized |
| Cleaningmethod: | CIP (Clean-in-Place) Compatible | Platethickness: | 0.4 Mm To 1.2 Mm |
| Model: | Sondex Heat Exchanger Plate | Platetype: | Chevron Pattern |

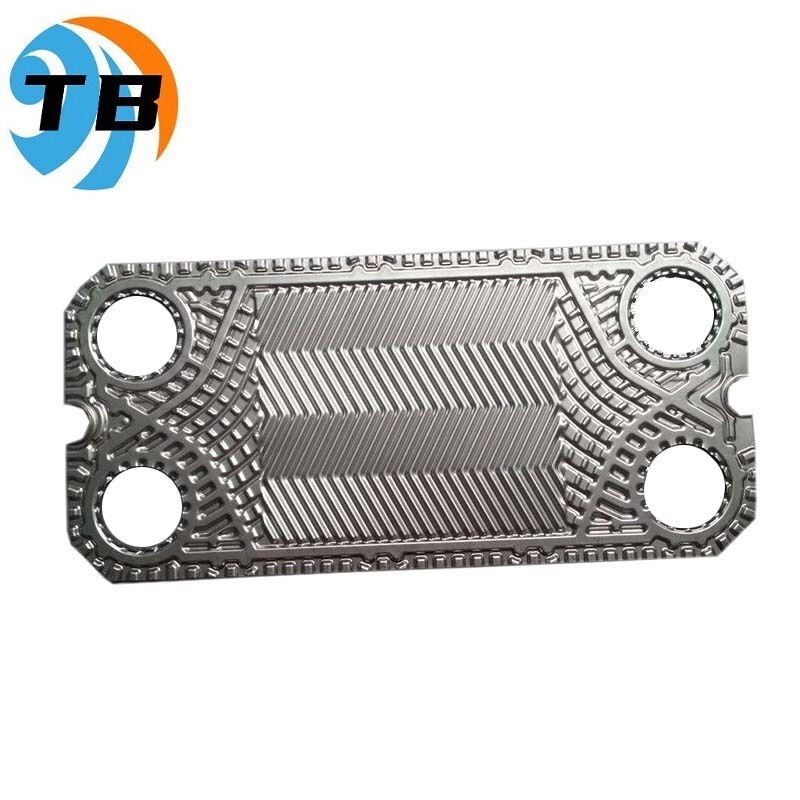

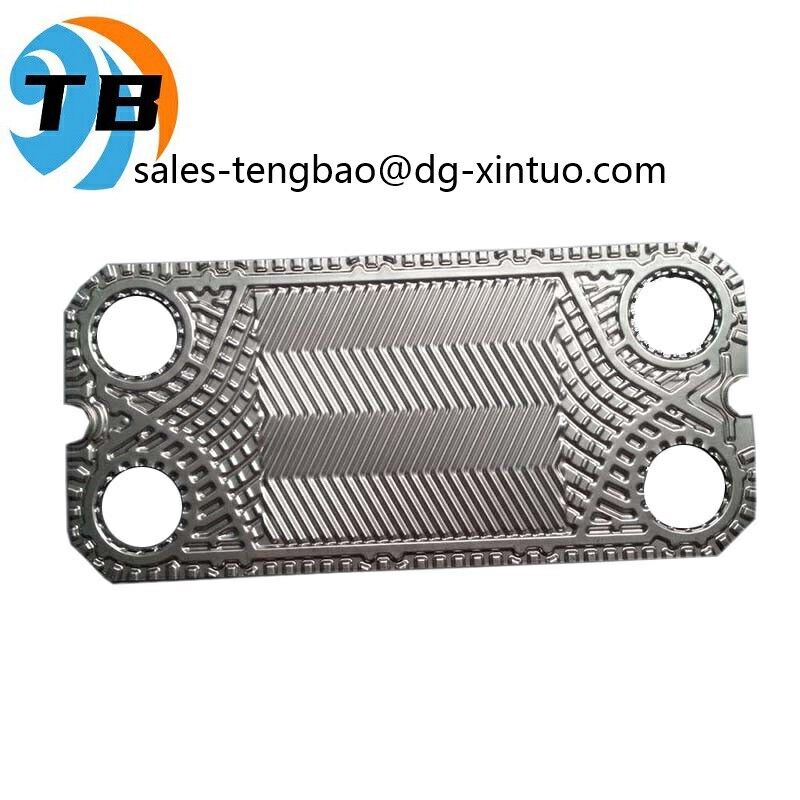

The Sondex fluid heat exchange plate is a highly efficient and reliable component designed specifically for industrial heat transfer applications. With a plate length of 1000mm, it offers ample surface area to facilitate optimal heat exchange between fluids, ensuring maximum thermal efficiency and performance. This makes it an ideal choice for various industrial processes where precise temperature control and energy conservation are critical.
One of the standout features of the Sondex fluid heat exchange plate is its robust construction, which includes a plate thickness ranging from 0.4 mm to 1.2 mm. This range allows for flexibility in application, catering to different pressure requirements and fluid characteristics while maintaining durability and resistance to wear and corrosion. The carefully engineered thickness ensures that the plates can withstand demanding industrial environments without compromising on heat transfer efficiency.
The Sondex fluid heat exchange plate employs a gasketed plate design, which is a popular and versatile type of plate heat exchanger technology. The gasketed design facilitates easy assembly and disassembly, making cleaning, maintenance, and inspection straightforward and cost-effective. This feature is particularly beneficial in industries where hygiene and contamination control are paramount, as the gaskets can be replaced quickly to ensure the system remains leak-free and operational.
Connection size is a critical factor in integrating heat exchanger plates into existing systems, and the Sondex industrial heat plate comes with a connection size of DN50. This standard size allows for compatibility with a wide range of piping systems and equipment, simplifying installation and reducing the need for custom fittings or adapters. The DN50 connection is suitable for medium to large-scale industrial applications, ensuring smooth fluid flow and minimizing pressure drop across the plate heat exchanger.
In terms of after-sales support, the Sondex fluid heat exchange plate is backed by comprehensive online support services. Customers can access technical assistance, troubleshooting guidance, and maintenance advice through online platforms, ensuring that any issues are promptly addressed without the need for onsite visits. This online support enhances the overall user experience and helps to maximize the operational lifespan of the heat exchanger plates.
The Sondex industrial heat plate is designed with both performance and sustainability in mind. By enabling efficient heat transfer, it helps industries reduce energy consumption and lower operational costs, contributing to a more environmentally friendly production process. The high-quality materials and precise manufacturing standards ensure that the plates maintain their integrity and efficiency over extended periods, even under harsh operating conditions.
Overall, the Sondex fluid heat exchange plate represents a perfect blend of durability, efficiency, and user-friendly design. Its 1000mm plate length, variable thickness between 0.4 mm and 1.2 mm, gasketed plate construction, and DN50 connection size make it suitable for a wide range of industrial heat exchange applications. Coupled with reliable online after warranty support, this product provides a dependable solution for industries seeking to optimize their heat transfer processes with minimal downtime and maintenance effort.
Choosing the Sondex fluid heat exchange plate means investing in a product that has been engineered to meet the rigorous demands of modern industry, delivering consistent performance, ease of maintenance, and long-term value. Whether used in HVAC systems, chemical processing, food and beverage production, or other industrial sectors, the Sondex industrial heat plate stands out as a top-tier choice for efficient and reliable heat exchange.
| Model | Sondex Heat Exchanger Plate |
| Plate Type | Gasketed Plate |
| Plate Thickness | 0.4 mm to 1.2 mm |
| Gasket Thickness | 2 mm |
| Plate Pattern Type | Chevron Pattern |
| Max Operating Pressure | 25 Bar |
| Connection Size | DN50 |
| Plate Length | 1000 mm |
| Cleaning Method | CIP (Clean-in-Place) Compatible |
| After Warranty Service | Online Support |
The TB S7A model from the Sondex series is a high-quality gasketed plate heat exchanger designed to meet diverse industrial needs. Originating from China and certified with ISO9001, the Sondex stainless steel heat plate ensures reliable performance and durability under demanding conditions. Featuring a chevron pattern plate type, the Sondex compact heat exchanger plate offers excellent heat transfer efficiency combined with a robust structure that supports a maximum operating pressure of up to 25 bar.
These heat exchanger plates come in varying dimensions, typically ranging from 200 mm x 200 mm to 600 mm x 600 mm, allowing for flexible application across different scales of operations. The gasketed design simplifies maintenance and replacement, which is crucial in industries requiring minimal downtime. Additionally, the plates are CIP (Clean-in-Place) compatible, making them ideal for processes where hygiene and ease of cleaning are paramount.
The Sondex stainless steel heat plate finds extensive application in numerous sectors. In the food and beverage industry, it is used for pasteurization, cooling, and heating of liquids, ensuring product safety and quality. The pharmaceutical industry benefits from its cleanability and corrosion resistance, essential for maintaining sterile conditions. In chemical processing plants, the plates facilitate efficient heat exchange for various fluids, contributing to process optimization and energy savings.
Furthermore, the TB S7A plates are widely employed in HVAC systems for heating and cooling applications, providing compact and efficient solutions for temperature regulation. The marine and power generation industries also utilize these compact heat exchanger plates due to their durability and ability to withstand high pressures and temperatures. Their versatile design enables seamless integration into existing systems or new installations.
Overall, the Sondex stainless steel heat plate by TB stands out for its combination of advanced engineering, quality certification, and adaptability. Whether in industrial manufacturing, food processing, pharmaceuticals, or energy sectors, the Sondex compact heat exchanger plate offers a reliable and efficient solution for heat transfer needs, backed by the trusted brand quality and robust design.
