| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S22 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Connection Size: | DN50 | Plate Width: | 500mm |
|---|---|---|---|
| Maxoperatingtemperature: | 225°C | Platetype: | Chevron Pattern |
| Model: | Heat Exchanger Plate | Gasketmaterial: | NBR, EPDM, Viton |
| Maxoperatingpressure: | 25 Bar | Plate Type: | Gasket Plate Heat Exchanger |

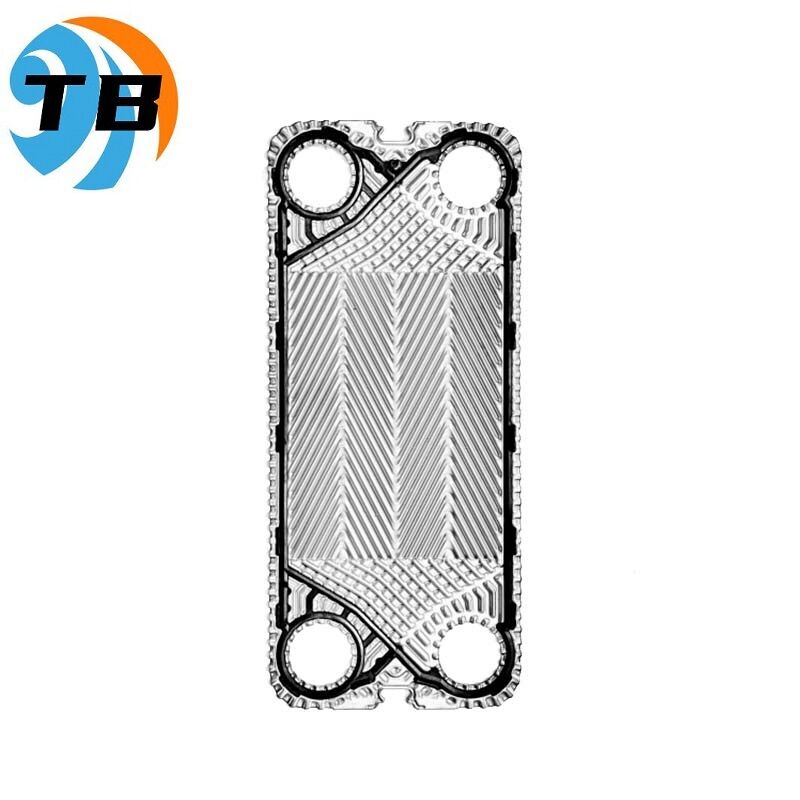

The Sondex Plate Type Heat Exchanger is a highly efficient and reliable solution designed for a wide range of industrial and commercial heat transfer applications. Engineered with precision and built to last, this heat exchanger incorporates advanced design features that ensure optimal thermal performance and durability. The Sondex Heat Transfer Plate, a core component of this system, is crafted from premium stainless steel materials, including AISI 316 and AISI 304, which provide excellent resistance to corrosion, high temperatures, and mechanical stress.
One of the standout features of the Sondex Plate Type Heat Exchanger is its robust construction, capable of withstanding a maximum operating pressure of 25 Bar (equivalent to 1.6 MPa). This high-pressure tolerance makes it suitable for demanding environments where reliable and consistent heat transfer is critical. The plates themselves are designed with a length of 1000mm, offering a substantial surface area that enhances heat exchange efficiency and contributes to the overall compactness of the unit.
The gasket material selection is another key attribute that sets the Sondex High Efficiency Heat Plate apart. The heat exchanger plates are equipped with gaskets made from high-quality materials such as NBR, EPDM, and Viton. These gasket options provide excellent sealing performance, chemical resistance, and temperature tolerance, ensuring leak-free operation and long service life even under challenging conditions. This flexibility in gasket materials allows the Sondex Heat Transfer Plate to be tailored to specific fluid types and operating environments, further enhancing its versatility.
Designed for ease of maintenance and adaptability, the Sondex Plate Type Heat Exchanger features a modular design that allows for quick disassembly and cleaning. This is particularly beneficial in applications where fouling or scaling can impact heat transfer efficiency. The stainless steel plates can be easily accessed and serviced, minimizing downtime and maintenance costs. Moreover, the Sondex High Efficiency Heat Plate design incorporates optimized flow paths that promote turbulent flow, which significantly improves heat transfer rates while reducing the risk of sediment buildup.
In addition to its superior performance characteristics, the Sondex Plate Type Heat Exchanger is engineered to meet stringent industry standards and certifications, ensuring safety and reliability in operation. Its compact footprint and lightweight design make it an excellent choice for installations where space is limited without compromising on performance. Whether used in HVAC systems, chemical processing, food and beverage production, or power generation, the Sondex Heat Transfer Plate provides a dependable and efficient solution for managing heat exchange processes.
Overall, the Sondex High Efficiency Heat Plate and its associated plate type heat exchanger represent a significant advancement in heat transfer technology. With materials selected for durability and corrosion resistance, a maximum operating pressure of 25 Bar, and gasket materials designed for optimal sealing under various conditions, this product offers unmatched performance and reliability. Its 1000mm plate length ensures a large heat transfer area, contributing to enhanced efficiency and energy savings. For industries seeking a high-performance, versatile, and durable heat exchanger, the Sondex Plate Type Heat Exchanger is an ideal choice that delivers exceptional value and operational excellence.
| Max Working Pressure | 1.6 MPa |
| Plate Material | Stainless Steel (AISI 316, AISI 304) |
| Connection Size | DN50 |
| Weight | Depends On Size, Typically 5 To 50 Kg |
| Plate Type | Chevron Pattern |
| Max Operating Pressure | 25 Bar |
| Plate Type Description | Gasket Plate Heat Exchanger |
| Plate Length | 1000 mm |
| Max Operating Temperature | 225°C |
The TB S17 Sondex Plate Type Heat Exchanger, originating from China and certified with ISO9001, is designed for a wide range of product application occasions and scenarios. Its robust construction using high-quality stainless steel materials such as AISI 316 and AISI 304 ensures excellent corrosion resistance and durability, making it ideal for demanding industrial environments. With a connection size of DN50 and a heat transfer area of 2.5m², this heat exchanger is well-suited for medium-scale heat transfer applications requiring reliable performance and efficiency.
The Sondex High Efficiency Heat Plate incorporated in the TB S17 model features a plate length of 1000mm, optimizing the heat exchange process by maximizing surface area within a compact footprint. This makes it particularly useful in industries such as chemical processing, food and beverage production, HVAC systems, and pharmaceutical manufacturing, where precise temperature control is critical. The max working pressure of 1.6MPa allows the unit to operate safely under high-pressure conditions, expanding its usability across various heating and cooling processes.
One common application scenario for the TB S17 is in heating and cooling systems where energy efficiency and reliability are paramount. The Sondex Corrugated Heat Plate design enhances turbulence within the fluids, significantly improving heat transfer rates while minimizing fouling and maintenance requirements. This characteristic makes it an excellent choice for applications involving viscous fluids or processes with frequent temperature fluctuations.
In addition, the TB S17 is widely used in renewable energy systems such as solar water heating and geothermal heat pumps, where efficient heat exchange plays a critical role in system performance. Its stainless steel construction ensures longevity even in harsh environments, including seawater applications. The compact and modular design of the Sondex Plate Type Heat Exchanger allows for easy installation and scalability, catering to both new projects and retrofit solutions.
Overall, the TB S17 model with Sondex High Efficiency Heat Plate technology provides a versatile, high-performance solution for various heat transfer needs across multiple industries. Whether applied in industrial processing, HVAC, renewable energy, or specialized manufacturing, it delivers dependable performance and energy savings, making it a preferred choice for professionals seeking quality and efficiency in heat exchange equipment.
Our TB brand Sondex Plate Heat Exchanger, model number S17, offers exceptional customization services tailored to meet your specific requirements. Manufactured in China and certified with ISO9001, this Sondex Corrugated Heat Plate features a heat transfer area of 2.5m², ensuring efficient thermal performance for various industrial applications.
The Sondex Corrugated Heat Plate is constructed from high-quality stainless steel materials, including AISI 316 and AISI 304, providing excellent corrosion resistance and durability. With a connection size of DN50, this gasket plate heat exchanger is designed for easy integration into your existing systems.
Weight varies depending on the size, typically ranging from 5 to 50 kg, allowing flexibility for different operational needs. Our customization services ensure that the Sondex Plate Heat Exchanger can be adapted to your specific process requirements, delivering reliable and efficient heat transfer solutions.
Our Sondex heat exchanger plates are designed to deliver optimal thermal performance and durability in a wide range of industrial applications. For technical support, we provide comprehensive assistance including installation guidance, maintenance tips, troubleshooting, and performance optimization to ensure your heat exchanger operates efficiently.
We offer expert services such as plate replacement, gasket renewal, cleaning, and inspection to extend the lifespan of your heat exchanger. Our technical team is equipped to help you select the right plate design and materials tailored to your specific process requirements.
Regular maintenance and timely servicing are crucial for preventing downtime and maintaining peak performance. We recommend following the maintenance schedule outlined in the product manual and utilizing genuine Sondex spare parts for replacements.
For detailed technical documentation, installation manuals, and service guidelines, please refer to the resources provided with your product or visit our official website. Our goal is to support you with reliable, high-quality services that maximize the efficiency and longevity of your Sondex heat exchanger plates.
