| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S22 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Model: | Heat Exchanger Plate | Material: | Stainless Steel (AISI 316, AISI 304) |
|---|---|---|---|
| Heat Transfer Area: | 2.5m² | Plate Material: | Stainless Steel |
| Plate Type: | Gasket Plate Heat Exchanger | Gasketmaterial: | NBR, EPDM, Viton |
| Plate Length: | 1000mm | Platethickness: | 0.4 Mm To 1.2 Mm |

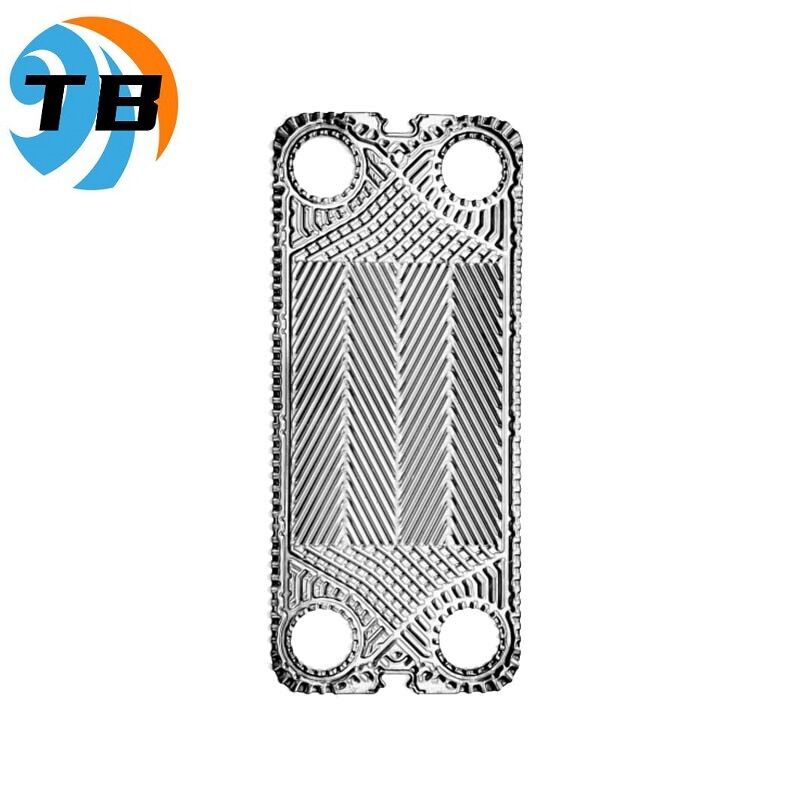

The Sondex Heat Exchanger Plate is a high-quality product designed to optimize heat transfer efficiency in various industrial applications. Engineered with precision, this heat exchanger plate is a vital component in heat exchange systems, ensuring effective thermal energy transfer between fluids. The Sondex Heat Transfer Plate is renowned for its durability, performance, and innovative design, making it an excellent choice for industries requiring reliable and efficient heat exchange solutions.
One of the key features of the Sondex Thermal Exchange Plate is its plate thickness, which ranges from 0.4 mm to 1.2 mm. This range allows for flexibility and customization according to specific application needs. Thinner plates provide enhanced heat transfer rates due to reduced thermal resistance, while thicker plates offer increased mechanical strength and durability, suitable for high-pressure environments. This versatility ensures that the Sondex High Efficiency Heat Plate can meet the demands of a wide variety of operational conditions.
The plate type used in this model is the Chevron pattern, which is a hallmark of efficient heat exchanger design. The Chevron pattern enhances turbulence within the fluid flow, significantly improving heat transfer performance while maintaining a compact size. This design maximizes surface area contact between the fluids, promoting rapid and effective heat exchange. The Chevron pattern also contributes to the structural integrity of the plate, allowing it to withstand high pressures and temperature variations without compromising performance or longevity.
With a connection size of DN50, the Sondex Heat Exchanger Plate is compatible with a broad range of piping systems, making it easy to integrate into existing heat exchange setups or new installations. The DN50 connection size represents a balanced dimension that supports efficient fluid flow rates while maintaining manageable pressure drops. This connection standard ensures that the Sondex Thermal Exchange Plate can be seamlessly incorporated into diverse industrial processes, from HVAC systems to chemical processing plants.
The plate width of 500 mm is another significant aspect of the Sondex High Efficiency Heat Plate. This width dimension is optimized to provide a substantial heat transfer surface area without compromising the compactness of the heat exchanger unit. A 500 mm plate width allows for effective scaling of heat exchanger size, accommodating various capacity requirements while ensuring ease of maintenance and handling. The design facilitates quick assembly and disassembly, which is crucial for routine inspection and cleaning tasks, thereby enhancing the overall operational reliability of the heat exchanger system.
Modelled specifically as a Heat Exchanger Plate, this product embodies the latest advances in heat transfer technology. The Sondex Heat Transfer Plate is manufactured using high-grade materials that resist corrosion and thermal fatigue, ensuring long service life and consistent performance. Its precise engineering minimizes leakage risks and optimizes sealing between plates, which is critical for maintaining system efficiency and safety. Moreover, the Sondex Thermal Exchange Plate’s design promotes energy conservation by maximizing heat recovery and reducing operational costs.
In summary, the Sondex Heat Exchanger Plate is a superior solution for industries seeking robust, efficient, and adaptable heat exchange components. Its range of plate thicknesses from 0.4 mm to 1.2 mm, Chevron pattern plate type, DN50 connection size, and 500 mm plate width collectively contribute to its outstanding performance. As a model heat exchanger plate, it offers reliability, ease of integration, and enhanced thermal transfer capabilities. Whether you require a component for industrial heating, cooling, or energy recovery systems, the Sondex High Efficiency Heat Plate ensures optimal results with a focus on durability and efficiency.
| Plate Width | 500 mm |
| Plate Thickness | 0.4 mm to 1.2 mm |
| Plate Type | Gasket Plate Heat Exchanger |
| Model | Heat Exchanger Plate |
| Max Operating Temperature | 225°C |
| Plate Material | Stainless Steel |
| Gasket Material | NBR, EPDM, Viton |
| Plate Type Pattern | Chevron Pattern |
| Weight | Depends On Size, Typically 5 To 50 Kg |
| Heat Transfer Area | 2.5 m² |
The TB S17 Sondex Metal Heat Transfer Plate, originating from China and certified with ISO9001, is an exceptionally versatile heat exchanger plate designed for a wide range of applications and scenarios. With a robust plate width of 500mm and a maximum operating pressure of 25 Bar, this product is engineered to deliver efficient thermal performance across various industries. The Sondex Metal Heat Transfer Plate is crafted from high-quality stainless steel, ensuring durability, corrosion resistance, and longevity even in demanding environments.
This model features plate thickness options ranging from 0.4 mm to 1.2 mm, allowing for customization based on specific heat transfer requirements. The gasket materials available – NBR, EPDM, and Viton – provide excellent sealing capabilities and chemical resistance, making the Sondex Metal Heat Transfer Plate ideal for handling diverse fluids and temperatures. These attributes make it suitable for applications in HVAC systems, refrigeration, chemical processing, power plants, food and beverage industries, and pharmaceutical manufacturing where precise temperature control is critical.
In industrial settings, the TB S17 Sondex Metal Heat Transfer Plate plays a vital role in energy conservation by optimizing heat exchange processes. Its design supports high-pressure operation up to 25 Bar, which makes it perfect for steam heating, cooling water circuits, and oil cooling systems. Additionally, the stainless steel plate material is compatible with aggressive media, enhancing its applicability in chemical processing plants and marine environments.
Within commercial and residential HVAC applications, this heat exchanger plate ensures efficient heat recovery and temperature regulation, contributing to sustainable energy use and cost savings. The flexibility of gasket materials like Viton also allows for use in high-temperature and chemical-intensive scenarios, broadening the range of possible applications.
Overall, the TB S17 Sondex Metal Heat Transfer Plate is engineered to meet the rigorous demands of modern heat exchange needs, providing reliable performance in multiple industrial, commercial, and environmental scenarios. Its combination of durable stainless steel construction, customizable thickness, and versatile gasket materials makes it a preferred choice for engineers and technicians seeking efficient and long-lasting heat exchange solutions.
Our TB S17 heat exchanger plate, originating from China and certified with ISO9001, offers exceptional customization services to meet your specific requirements. The Sondex Stainless Steel Heat Plate is made from high-quality stainless steel, ensuring durability and excellent thermal performance.
The plate thickness ranges from 0.4 mm to 1.2 mm, providing flexibility for various applications. Featuring a Chevron Pattern plate type, the design enhances fluid dynamics and heat transfer efficiency. The Sondex Thermal Exchange Plate operates reliably at a maximum temperature of 225°C, making it suitable for demanding thermal processes.
As a model specifically designed for heat exchanger plates, the TB S17 delivers outstanding performance with its Sondex High Efficiency Heat Plate characteristics. We offer tailored solutions to adapt the plate size, thickness, and pattern to your system needs, ensuring optimal heat exchange and energy savings.
Choose our customized Sondex heat exchanger plates for superior quality, certified manufacturing standards, and enhanced thermal exchange capabilities that meet your industrial requirements.
Our Sondex heat exchanger plate products are designed to deliver exceptional performance and reliability in a wide range of industrial applications. To ensure optimal operation and longevity of your heat exchanger, we provide comprehensive technical support and services tailored to your specific needs.
Our technical support team is available to assist with installation guidance, troubleshooting, and maintenance advice to maximize the efficiency of your heat exchanger plates. We offer detailed documentation, including product datasheets, installation manuals, and maintenance instructions, to help you understand the best practices for handling and operating your equipment.
In addition, we provide inspection and replacement services to maintain the integrity and performance of your heat exchanger. Our experts can help assess plate condition, identify signs of wear or damage, and recommend appropriate repair or replacement options to minimize downtime.
For customized solutions, we offer design and engineering support to adapt our heat exchanger plates to your unique process requirements. Our team works closely with you to optimize thermal performance and ensure compatibility with your system.
We are committed to delivering high-quality products backed by responsive and knowledgeable service, ensuring that your Sondex heat exchanger operates efficiently throughout its lifecycle.
