| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S8A |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Material: | Stainless Steel | Connection Size: | DN50 |
|---|---|---|---|
| Plate Length: | 1000mm | Maxoperatingpressure: | 25 Bar |
| Platethickness: | 0.4 Mm To 1.2 Mm | Weight: | Depends On Size, Typically 5 To 50 Kg |
| Material: | Stainless Steel (AISI 316, AISI 304) | Plate Type: | Gasket Plate Heat Exchanger |

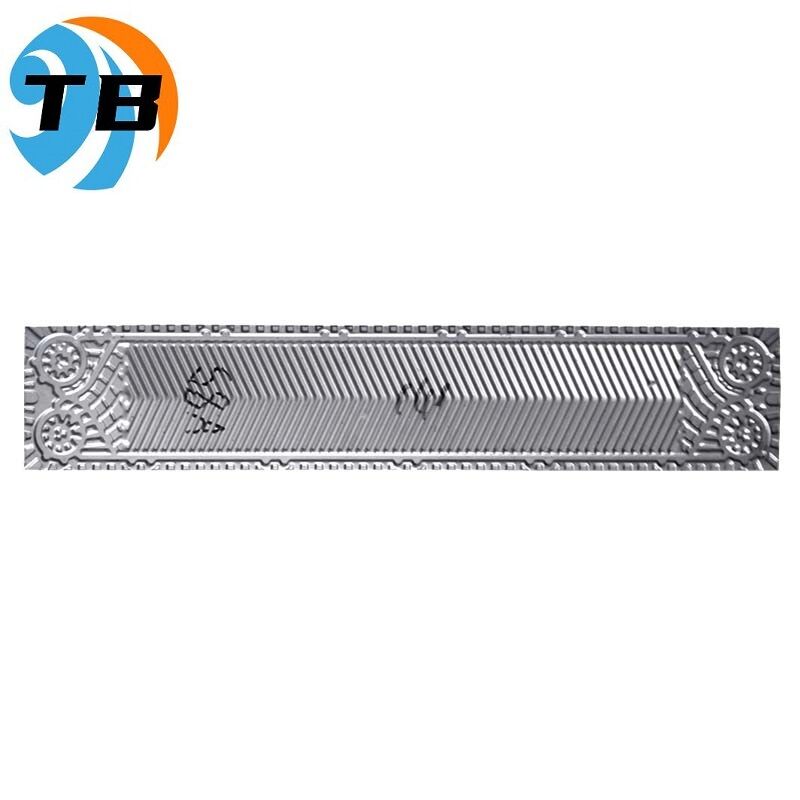

The Sondex Metal Heat Transfer Plate is a high-quality component designed for use in Sondex Plate Type Heat Exchangers, renowned for their efficiency and reliability in various industrial applications. Engineered to meet rigorous standards, this product ensures optimal thermal performance and durability, making it an ideal choice for heat transfer solutions where precision and robustness are paramount.
One of the standout features of the Sondex Metal Heat Transfer Plate is its impressive maximum operating pressure of 25 bar (1.6 MPa). This high-pressure tolerance allows the plate to function effectively in demanding environments, accommodating a wide range of fluids and process conditions without compromising safety or performance. The robust construction ensures that the heat exchanger operates seamlessly under fluctuating pressures, enhancing overall system reliability.
The plate thickness of the Sondex Metal Heat Transfer Plate ranges from 0.4 mm to 1.2 mm. This range provides flexibility in design and application, enabling customization based on specific thermal and mechanical requirements. Thicker plates offer enhanced durability and pressure resistance, while thinner plates improve heat transfer efficiency by reducing thermal resistance. This versatility makes the Sondex plates suitable for everything from light-duty applications to more intense industrial processes.
Weight is another important factor in the design of the Sondex Metal Heat Transfer Plate, with typical weights varying between 5 and 50 kilograms depending on the size of the plate. This weight variation allows for the optimization of the heat exchanger's overall mass and footprint, balancing ease of installation and handling with the structural integrity required for heavy-duty applications. Despite the variation in weight, all plates maintain consistent quality and performance characteristics.
The Sondex Metal Heat Transfer Plate features a distinctive Chevron pattern, a hallmark of Sondex plate design that significantly enhances heat transfer efficiency. The Chevron pattern creates turbulent flow conditions within the heat exchanger, increasing the heat transfer coefficient and minimizing fouling. This design not only improves thermal performance but also contributes to energy savings and reduced operational costs over the lifetime of the equipment.
Incorporating the Sondex Metal Heat Transfer Plate into a Sondex Plate Type Heat Exchanger ensures a compact and efficient heat exchange solution. The plates are designed for easy assembly and maintenance, with a focus on maximizing surface area while minimizing size. This compact design is particularly beneficial in industries where space is limited but high thermal efficiency is required.
Overall, the Sondex Metal Heat Transfer Plate is an essential component for any Sondex Plate Type Heat Exchanger system. Its combination of high maximum operating pressure, variable plate thickness, optimized weight, and efficient Chevron pattern design delivers superior performance and longevity. Whether used in HVAC, chemical processing, food and beverage, or power generation, these plates provide reliable heat transfer and contribute to the operational excellence of industrial heat exchange systems.
Choosing the Sondex Metal Heat Transfer Plate means investing in a proven technology that supports sustainable and efficient thermal management solutions. Its robust specifications and innovative design make it a preferred choice for engineers and operators seeking dependable performance in their heat exchange applications.
| Model | Heat Exchanger Plate |
| Plate Type | Gasket Plate Heat Exchanger |
| Plate Pattern | Chevron Pattern |
| Material | Stainless Steel (AISI 316, AISI 304) |
| Maximum Operating Pressure | 25 Bar / 1.6 MPa |
| Heat Transfer Area | 2.5 m² |
| Plate Length | 1000 mm |
| Plate Width | 500 mm |
| Weight | Depends On Size, Typically 5 To 50 Kg |
The TB S17 model Sondex Heat Exchanger Plate Element is a highly efficient gasket plate heat exchanger manufactured in China, certified under ISO9001 standards. With a heat transfer area of 2.5m² and plate thickness ranging from 0.4 mm to 1.2 mm, this product is designed to deliver optimal thermal performance in various industrial and commercial applications. The plate width of 500mm ensures a compact yet powerful solution, while the weight varies between 5 to 50 kg depending on the size, making it adaptable for different installation requirements.
The Sondex Thermal Exchange Plate is widely used in HVAC systems for heating and cooling purposes, providing reliable heat transfer between fluids without mixing them. Its gasket design ensures leak-proof operation, which is essential for maintaining system integrity in environments such as commercial buildings, manufacturing plants, and power stations. The versatility of the Sondex Corrugated Heat Plate allows it to handle different types of fluids, including water, glycol solutions, and various oils, making it suitable for refrigeration, district heating, and industrial process heating.
In the food and beverage industry, the TB S17 Sondex Heat Exchanger Plate Element plays a crucial role in pasteurization, sterilization, and temperature control processes. Its robust construction and certified quality guarantee safe and hygienic operation, meeting stringent industry standards. Additionally, in chemical processing plants, the Sondex Thermal Exchange Plate supports efficient heat recovery and temperature regulation, enhancing energy savings and process efficiency.
The Sondex Corrugated Heat Plate is also ideal for marine and offshore applications where compactness and durability are critical. Its corrosion-resistant materials and precise engineering ensure reliable performance under harsh conditions. Furthermore, power generation facilities utilize the TB S17 model for cooling turbine oil, transformers, and other critical components, ensuring stable operation and preventing overheating.
Overall, the TB S17 Sondex Heat Exchanger Plate Element provides a versatile, high-performance solution across a wide range of occasions and scenarios. Whether in HVAC, food processing, chemical industries, marine environments, or power generation, this gasket plate heat exchanger delivers efficient thermal exchange, durability, and compliance with international quality standards, making it a trusted choice for demanding applications worldwide.
TB brand offers customized Sondex Heat Exchanger Plate Element solutions with the S17 model, originating from China and certified to ISO9001 standards. Our Sondex Stainless Steel Heat Plate products feature plate thicknesses ranging from 0.4 mm to 1.2 mm, designed as Gasket Plate Heat Exchangers to ensure efficient performance. Each Sondex Heat Transfer Plate provides a heat transfer area of 2.5m² and supports a maximum operating pressure of 25 bar. The weight varies depending on the size, typically ranging from 5 to 50 kg, allowing for tailored solutions to meet your specific heat exchange requirements.
Our Sondex heat exchanger plates are designed for high performance and durability in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, maintenance tips, and troubleshooting advice to ensure optimal operation of your heat exchanger.
We offer expert services such as plate replacement, gasket renewal, and full heat exchanger refurbishment to extend the life and efficiency of your equipment. Our team is dedicated to helping you maximize energy efficiency and minimize downtime.
Additionally, we provide technical documentation and resources to support your understanding of the Sondex heat exchanger plate product, including detailed specifications, flow and thermal performance data, and compatibility information.
For any technical inquiries or service requests related to Sondex heat exchanger plates, please refer to your local authorized service provider or visit our official website for further assistance.
