| Place of Origin: | china |
| Brand Name: | TB |
| Certification: | ISO9001 |
| Model Number: | S14A |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | $100/pack |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union |
| Supply Ability: | 10000 packs/month |
| Plate Material: | Stainless Steel | Plate Length: | 1000mm |
|---|---|---|---|
| Connection Size: | DN50 | Model: | Heat Exchanger Plate |
| Heat Transfer Area: | 2.5m² | Maxoperatingpressure: | 25 Bar |
| Material: | Stainless Steel (AISI 316, AISI 304) | Maxoperatingtemperature: | 225°C |

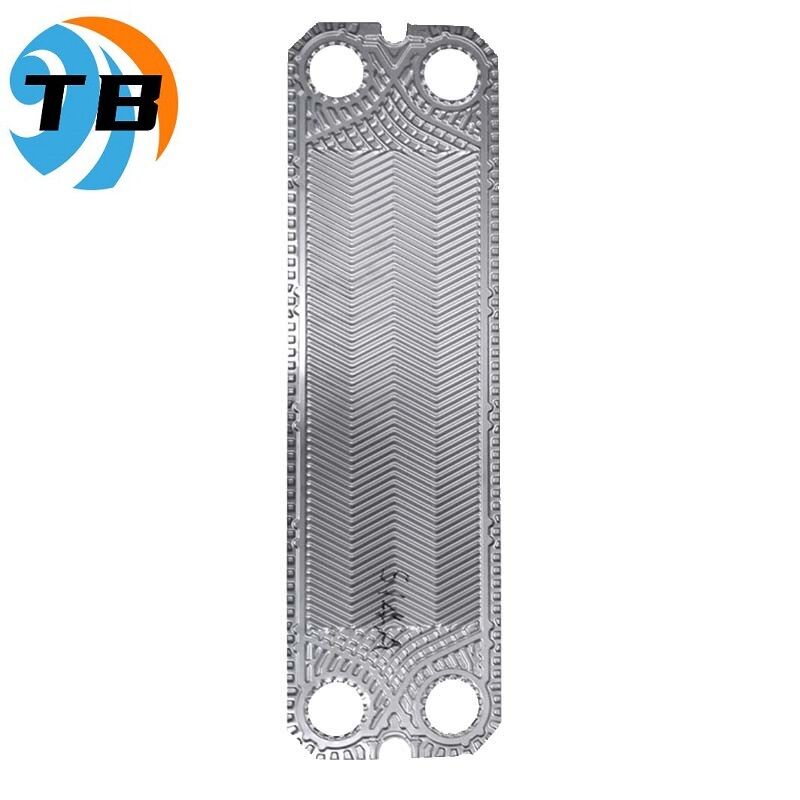

The Sondex heat exchanger plate is a high-quality component designed for efficient thermal management in various industrial applications. Known for its durability and superior performance, the Sondex Metal Heat Transfer Plate is engineered to meet the demanding requirements of modern heat exchange systems. With a plate width of 500mm, this plate offers an optimal surface area for effective heat transfer, ensuring maximum efficiency in thermal exchange processes.
Constructed from premium-grade stainless steel, the Sondex Thermal Exchange Plate provides excellent resistance to corrosion and wear, making it suitable for use in harsh environments and with a wide range of fluids. The choice of stainless steel as the plate material not only enhances the longevity of the heat exchanger but also ensures hygienic conditions, which is critical in industries such as food processing, pharmaceuticals, and chemical manufacturing.
One of the key features of the Sondex Heat Transfer Plate is its ability to operate under high pressure conditions, with a maximum working pressure of 1.6MPa. This capability allows it to be integrated into high-performance heat exchanger systems that require robust and reliable components to maintain safety and efficiency. Additionally, the plate is designed to withstand a maximum operating temperature of up to 225°C, making it suitable for applications involving high-temperature fluids and processes.
The weight of the Sondex heat exchanger plate varies depending on the size and specific design, typically ranging from 5 to 50 kilograms. This variability provides flexibility for different system requirements and allows for customization to meet specific operational needs. Despite the variation in weight, the plate maintains structural integrity and performance, ensuring consistent thermal exchange efficiency across different sizes.
The design of the Sondex Metal Heat Transfer Plate incorporates advanced engineering principles to optimize fluid flow and heat transfer rates. Its precisely engineered plate pattern enhances turbulence, which improves heat transfer while minimizing pressure drop. This balance is crucial for maintaining energy efficiency and reducing operational costs in industrial heat exchange applications.
Furthermore, the Sondex Thermal Exchange Plate is compatible with a wide range of gasket materials and configurations, allowing it to be tailored for specific fluids and operating conditions. This adaptability makes the plate a versatile choice for various sectors, including HVAC, power generation, oil and gas, and chemical processing industries.
Maintenance and cleaning are simplified thanks to the plate’s robust construction and corrosion-resistant stainless steel surface. This ensures a long service life and reliable performance, reducing downtime and maintenance costs. The Sondex Heat Transfer Plate’s design also facilitates easy assembly and disassembly within heat exchanger units, enabling quick inspections and replacements when necessary.
In summary, the Sondex heat exchanger plate is a premium product that combines strength, efficiency, and versatility. Its 500mm plate width, stainless steel construction, and ability to operate at pressures up to 1.6MPa and temperatures up to 225°C make it an excellent choice for demanding thermal exchange applications. Whether used in new installations or as a replacement part, the Sondex Metal Heat Transfer Plate delivers reliable performance and long-lasting durability, making it a valuable asset in any heat exchanger system.
| Product Name | Sondex Heat Exchanger Plate Element |
| Model | Heat Exchanger Plate |
| Plate Type | Chevron Pattern |
| Plate Material | Stainless Steel |
| Plate Width | 500 mm |
| Plate Length | 1000 mm |
| Heat Transfer Area | 2.5 m² |
| Maximum Operating Temperature | 225°C |
| Maximum Working Pressure | 1.6 MPa |
| Connection Size | DN50 |
| Description | Sondex Heat Exchanger Plate Element, also known as Sondex Stainless Steel Heat Plate, is a gasket plate heat exchanger designed for efficient heat transfer. |
The TB S17 Sondex Heat Exchanger Plate Element is a highly efficient component designed for diverse industrial applications. Originating from China and certified with ISO9001, this product guarantees quality and reliability. The Sondex Plate Heat Exchanger is widely used in heating, cooling, and heat recovery processes, making it an essential part of HVAC systems, chemical processing plants, food and beverage production, and power generation facilities.
The Sondex Corrugated Heat Plate design enhances heat transfer efficiency by creating turbulent flow, which allows for effective temperature exchange even under high operating pressures. With a maximum operating pressure of 25 bar (1.6 MPa) and plate thickness ranging from 0.4 mm to 1.2 mm, the S17 model is suitable for both low and high-pressure applications. This versatility makes it ideal for use in refrigeration systems, oil and gas industries, and marine engineering where robust and reliable heat exchange is critical.
The gasket materials available for the Sondex Heat Exchanger Plate Element include NBR, EPDM, and Viton, offering excellent chemical resistance and durability to withstand various working environments. This flexibility ensures compatibility with a wide range of fluids, including water, oils, and aggressive chemicals. Consequently, the Sondex Plate Heat Exchanger is frequently employed in pharmaceutical manufacturing, wastewater treatment, and district heating networks.
Due to its compact size and efficient heat transfer capabilities, the Sondex Corrugated Heat Plate is also commonly utilized in renewable energy systems such as solar thermal installations and geothermal heat pumps. Its ability to maintain high performance under variable temperature and pressure conditions makes it a preferred choice for engineers and designers aiming for sustainable and energy-efficient solutions.
In summary, the TB S17 Sondex Heat Exchanger Plate Element is a versatile, durable, and high-performance product suitable for a wide array of heat exchange occasions and scenarios. Whether used in industrial, commercial, or renewable energy applications, it provides reliable and efficient thermal management, ensuring optimal system performance and longevity.
Our TB S17 Sondex Plate Heat Exchanger offers exceptional customization services to meet your specific requirements. Manufactured in China and certified with ISO9001, this Gasket Plate Heat Exchanger features a robust design with a maximum working pressure of 1.6MPa, ensuring reliable performance under demanding conditions.
The Sondex Metal Heat Transfer Plate used in the TB S17 model has a plate width of 500mm, providing efficient heat exchange capabilities. The connection size is DN50, allowing seamless integration into various systems.
We offer a variety of gasket materials for the Sondex Heat Transfer Plate, including NBR, EPDM, and Viton, enabling you to select the optimal sealing solution for your application. Our customization services allow you to tailor the plate type, gasket material, and connection size to perfectly suit your operational needs.
Choose the TB S17 Sondex Plate Heat Exchanger for a reliable, efficient, and customizable heat transfer solution that leverages the advanced technology of the Sondex Metal Heat Transfer Plate.
Our Sondex heat exchanger plates are designed for high performance and durability in various industrial applications. To ensure optimal operation and longevity, we provide comprehensive technical support and services tailored to your needs.
Technical Support:
Our team of experts is available to assist with the selection, installation, and maintenance of Sondex heat exchanger plates. We offer guidance on plate material compatibility, gasket selection, and heat transfer optimization to maximize efficiency and reduce downtime.
Maintenance Services:
Regular maintenance is crucial for the reliable operation of heat exchangers. We provide inspection services, cleaning procedures, and gasket replacement recommendations. Our support helps identify potential issues early, preventing costly repairs and extending the life of your equipment.
Customization and Upgrades:
We offer customized plate designs to meet specific process requirements, including special materials and enhanced surface patterns. Additionally, upgrade services are available to improve the performance of existing heat exchangers using the latest technology.
Training and Documentation:
To empower your team, we provide training sessions covering installation best practices, troubleshooting techniques, and maintenance routines. Comprehensive documentation, including technical manuals and performance data, is also available to support your operations.
With Sondex heat exchanger plates and our dedicated technical support services, you can achieve reliable, efficient, and cost-effective heat transfer solutions tailored to your industrial needs.
